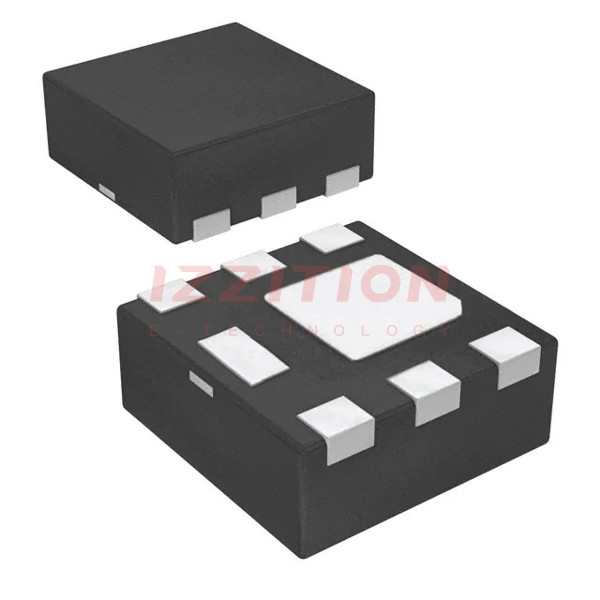

onsemi FDMA530PZ

Manufacturer No:
FDMA530PZ
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 30V 6.8A 6MICROFET
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDMA530PZ is a single P-Channel PowerTrench MOSFET produced by onsemi. This device is specifically designed for battery charge or load switching in cellular handsets and other ultraportable applications. It features onsemi's PowerTrench technology, which enhances performance and efficiency in compact designs.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)-30V
ID (Drain Current)-6.8A
RDS(ON) (On-Resistance)35mΩ
PD (Power Dissipation)2.4W

Key Features

  • Single P-Channel PowerTrench MOSFET
  • Low on-resistance (RDS(ON)) of 35mΩ
  • High current capability of -6.8A
  • Compact MicroFET package for space-saving designs
  • Enhanced performance and efficiency due to PowerTrench technology

Applications

The FDMA530PZ is designed for use in battery charge or load switching applications, particularly in cellular handsets and other ultraportable devices. It is also suitable for other portable electronics where space and efficiency are critical.

Q & A

  1. What is the drain-source voltage (VDS) of the FDMA530PZ?
    The drain-source voltage (VDS) of the FDMA530PZ is -30V.
  2. What is the maximum drain current (ID) of the FDMA530PZ?
    The maximum drain current (ID) of the FDMA530PZ is -6.8A.
  3. What is the on-resistance (RDS(ON)) of the FDMA530PZ?
    The on-resistance (RDS(ON)) of the FDMA530PZ is 35mΩ.
  4. What is the power dissipation (PD) of the FDMA530PZ?
    The power dissipation (PD) of the FDMA530PZ is 2.4W.
  5. What technology is used in the FDMA530PZ?
    The FDMA530PZ uses onsemi's PowerTrench technology.
  6. What are the typical applications of the FDMA530PZ?
    The FDMA530PZ is typically used in battery charge or load switching applications in cellular handsets and other ultraportable devices.
  7. What package type is the FDMA530PZ available in?
    The FDMA530PZ is available in a compact MicroFET package.
  8. Why is the FDMA530PZ suitable for portable electronics?
    The FDMA530PZ is suitable for portable electronics due to its compact size and high efficiency.
  9. Where can I find detailed specifications for the FDMA530PZ?
    Detailed specifications for the FDMA530PZ can be found on the onsemi website or through datasheets available from distributors like Digi-Key and Mouser.
  10. Is the FDMA530PZ suitable for high-power applications?
    No, the FDMA530PZ is designed for low to medium voltage applications and is not suitable for high-power applications.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:6.8A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:35mOhm @ 6.8A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:24 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:1070 pF @ 15 V
FET Feature:-
Power Dissipation (Max):2.4W (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-MicroFET (2x2)
Package / Case:6-WDFN Exposed Pad
0 Remaining View Similar

In Stock

$0.93
357

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDMA530PZ FDMA510PZ FDMA520PZ
Manufacturer onsemi onsemi onsemi
Product Status Active Active Obsolete
FET Type P-Channel P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V 20 V 20 V
Current - Continuous Drain (Id) @ 25°C 6.8A (Ta) 7.8A (Ta) 7.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 1.5V, 4.5V 2.5V, 4.5V
Rds On (Max) @ Id, Vgs 35mOhm @ 6.8A, 10V 30mOhm @ 7.8A, 4.5V 30mOhm @ 7.3A, 4.5V
Vgs(th) (Max) @ Id 3V @ 250µA 1.5V @ 250µA 1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 24 nC @ 10 V 27 nC @ 4.5 V 20 nC @ 4.5 V
Vgs (Max) ±25V ±8V ±12V
Input Capacitance (Ciss) (Max) @ Vds 1070 pF @ 15 V 1480 pF @ 10 V 1645 pF @ 10 V
FET Feature - - -
Power Dissipation (Max) 2.4W (Ta) 2.4W (Ta) 2.4W (Ta)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package 6-MicroFET (2x2) 6-MicroFET (2x2) 6-MicroFET (2x2)
Package / Case 6-WDFN Exposed Pad 6-WDFN Exposed Pad 6-WDFN Exposed Pad
