FCPF290N80
  • Share:

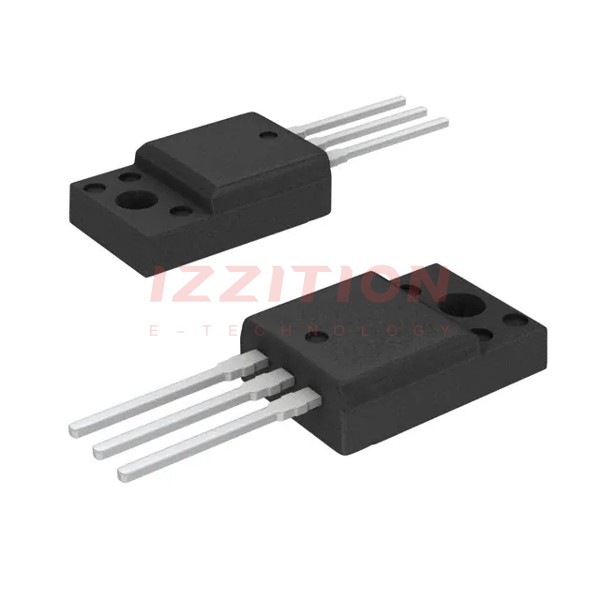

onsemi FCPF290N80

Manufacturer No:
FCPF290N80
Manufacturer:
onsemi
Package:
Bulk
Description:
MOSFET N-CH 800V 17A TO220F
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FCPF290N80 is a high-voltage N-Channel MOSFET from onsemi, part of their SuperFET® II family. This MOSFET utilizes charge balance technology and super-junction (SJ) architecture, offering outstanding low on-resistance and high efficiency. It is designed to meet the demands of high-power applications requiring reliable and efficient performance.

Key Specifications

ParameterValue
Voltage Rating (Vds)800 V
Current Rating (Id)17 A
On-Resistance (Rds(on))290 mΩ @ 10 V
Gate Threshold Voltage (Vgs(th))4.5 V @ 1.7 mA
Package TypeTO-220F-3
Power Dissipation (Pd)40 W

Key Features

  • High voltage rating of 800 V, making it suitable for high-power applications.
  • Low on-resistance of 290 mΩ @ 10 V, enhancing efficiency and reducing power losses.
  • Super-junction (SJ) technology for improved performance and reliability.
  • Charge balance technology to optimize the trade-off between on-resistance and switching performance.
  • TO-220F-3 package for robust and reliable mounting.

Applications

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Renewable energy systems, such as solar and wind power.
  • Industrial automation and control systems.
  • High-voltage power management in various industrial and consumer electronics.

Q & A

  1. What is the voltage rating of the FCPF290N80 MOSFET? The voltage rating of the FCPF290N80 MOSFET is 800 V.
  2. What is the current rating of the FCPF290N80 MOSFET? The current rating of the FCPF290N80 MOSFET is 17 A.
  3. What is the on-resistance of the FCPF290N80 MOSFET? The on-resistance of the FCPF290N80 MOSFET is 290 mΩ @ 10 V.
  4. What package type does the FCPF290N80 MOSFET use? The FCPF290N80 MOSFET uses the TO-220F-3 package.
  5. What is the power dissipation of the FCPF290N80 MOSFET? The power dissipation of the FCPF290N80 MOSFET is 40 W.
  6. What technology does the FCPF290N80 MOSFET utilize? The FCPF290N80 MOSFET utilizes super-junction (SJ) technology and charge balance technology.
  7. What are some typical applications of the FCPF290N80 MOSFET? Typical applications include power supplies, motor control systems, renewable energy systems, and industrial automation.
  8. Is the FCPF290N80 MOSFET RoHS compliant? Yes, the FCPF290N80 MOSFET is RoHS compliant.
  9. Where can I find detailed specifications for the FCPF290N80 MOSFET? Detailed specifications can be found in the datasheet available on onsemi’s official website and other electronic component distributors like Mouser and LCSC.
  10. What is the gate threshold voltage of the FCPF290N80 MOSFET? The gate threshold voltage of the FCPF290N80 MOSFET is 4.5 V @ 1.7 mA.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):800 V
Current - Continuous Drain (Id) @ 25°C:17A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:290mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id:4.5V @ 1.7mA
Gate Charge (Qg) (Max) @ Vgs:75 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3205 pF @ 100 V
FET Feature:-
Power Dissipation (Max):40W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220F-3
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

$4.99
36

Please send RFQ , we will respond immediately.

Similar Products

Part Number FCPF290N80 FCP290N80 FCPF220N80
Manufacturer onsemi onsemi onsemi
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 800 V 800 V 800 V
Current - Continuous Drain (Id) @ 25°C 17A (Tc) 17A (Tc) 23A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V
Rds On (Max) @ Id, Vgs 290mOhm @ 8.5A, 10V 290mOhm @ 8.5A, 10V 220mOhm @ 11.5A, 10V
Vgs(th) (Max) @ Id 4.5V @ 1.7mA 4.5V @ 1.7mA 4.5V @ 2.3mA
Gate Charge (Qg) (Max) @ Vgs 75 nC @ 10 V 75 nC @ 10 V 105 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 3205 pF @ 100 V 3205 pF @ 100 V 4560 pF @ 100 V
FET Feature - - -
Power Dissipation (Max) 40W (Tc) 212W (Tc) 44W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole
Supplier Device Package TO-220F-3 TO-220-3 TO-220F-3
Package / Case TO-220-3 Full Pack TO-220-3 TO-220-3 Full Pack
