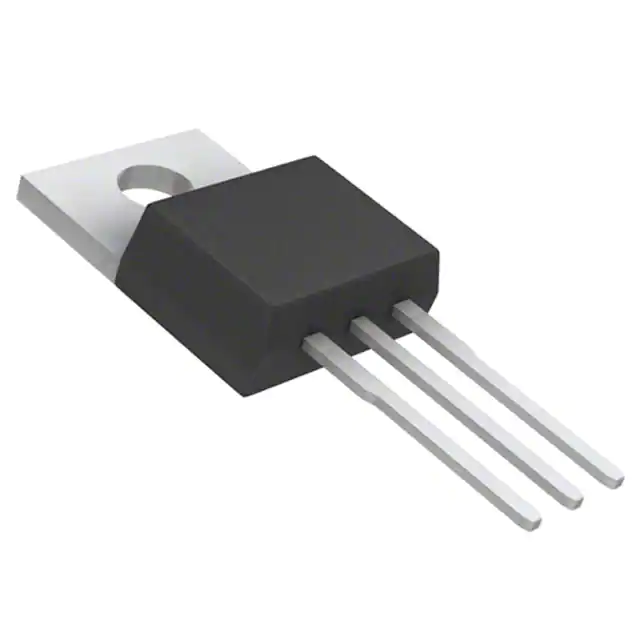

onsemi FCP125N65S3

Manufacturer No:
FCP125N65S3
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 650V 24A TO220-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FCP125N65S3 is a high-voltage N-Channel MOSFET from ON Semiconductor, part of their SUPERFET III family. This MOSFET utilizes charge-balance technology to achieve outstanding low on-resistance and lower gate charge performance. It is designed to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rates. The Easy Drive series of this MOSFET helps manage EMI issues and simplifies design implementation.

Key Specifications

ParameterValue
Channel PolarityN-Channel
VDS (Max)650 V
ID (Max)24 A
RDS(on) (Max) @ VGS = 10 V125 mΩ
VGS (Max)±30 V
VGS(th) (Max)4.5 V
Qg (Typ) @ VGS = 4.5 V44 nC
Coss(eff.) (Typ)405 pF
Internal Gate Resistance4 Ω
Package TypeTO-220F
RoHS ComplianceYes

Key Features

  • Ultra Low Gate Charge (Typ. Qg = 44 nC)
  • Low Effective Output Capacitance (Typ. Coss(eff.) = 405 pF)
  • Optimized Capacitance
  • Internal Gate Resistance: 4 ohm
  • Typical RDS(on) = 105 mΩ
  • 100% Avalanche Tested
  • RoHS Compliant

Applications

  • Telecommunication
  • Cloud systems
  • Industrial applications
  • Telecom power
  • Server power
  • EV chargers
  • Solar and UPS systems

Q & A

  1. What is the maximum drain-source voltage (VDS) of the FCP125N65S3 MOSFET?
    The maximum drain-source voltage (VDS) is 650 V.
  2. What is the maximum drain current (ID) of the FCP125N65S3 MOSFET?
    The maximum drain current (ID) is 24 A.
  3. What is the typical on-resistance (RDS(on)) of the FCP125N65S3 MOSFET at VGS = 10 V?
    The typical on-resistance (RDS(on)) is 125 mΩ.
  4. What is the maximum gate-source voltage (VGS) of the FCP125N65S3 MOSFET?
    The maximum gate-source voltage (VGS) is ±30 V.
  5. What is the typical gate charge (Qg) of the FCP125N65S3 MOSFET at VGS = 4.5 V?
    The typical gate charge (Qg) is 44 nC.
  6. What is the package type of the FCP125N65S3 MOSFET?
    The package type is TO-220F.
  7. Is the FCP125N65S3 MOSFET RoHS compliant?
    Yes, the FCP125N65S3 MOSFET is RoHS compliant.
  8. What are some of the key applications of the FCP125N65S3 MOSFET?
    Key applications include telecommunication, cloud systems, industrial applications, telecom power, server power, EV chargers, and solar and UPS systems.
  9. What technology does the FCP125N65S3 MOSFET use to achieve low on-resistance and lower gate charge?
    The FCP125N65S3 MOSFET uses charge-balance technology.
  10. What is the internal gate resistance of the FCP125N65S3 MOSFET?
    The internal gate resistance is 4 Ω.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):650 V
Current - Continuous Drain (Id) @ 25°C:24A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:125mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:4.5V @ 2.4mA
Gate Charge (Qg) (Max) @ Vgs:46 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:1940 pF @ 400 V
FET Feature:-
Power Dissipation (Max):181W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220-3
Package / Case:TO-220-3
0 Remaining View Similar

In Stock

$2.02
210

Please send RFQ , we will respond immediately.

Similar Products

Part Number FCP125N65S3 FCP165N65S3 FCPF125N65S3
Manufacturer onsemi onsemi onsemi
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 650 V 650 V 650 V
Current - Continuous Drain (Id) @ 25°C 24A (Tc) 19A (Tc) 24A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V
Rds On (Max) @ Id, Vgs 125mOhm @ 12A, 10V 165mOhm @ 9.5A, 10V 125mOhm @ 12A, 10V
Vgs(th) (Max) @ Id 4.5V @ 2.4mA 4.5V @ 1.9mA 4.5V @ 2.4mA
Gate Charge (Qg) (Max) @ Vgs 46 nC @ 10 V 39 nC @ 10 V 44 nC @ 10 V
Vgs (Max) ±30V ±30V ±30V
Input Capacitance (Ciss) (Max) @ Vds 1940 pF @ 400 V 1500 pF @ 400 V 1790 pF @ 400 V
FET Feature - - -
Power Dissipation (Max) 181W (Tc) 154W (Tc) 38W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole
Supplier Device Package TO-220-3 TO-220-3 TO-220F
Package / Case TO-220-3 TO-220-3 TO-220-3 Full Pack
