Overview

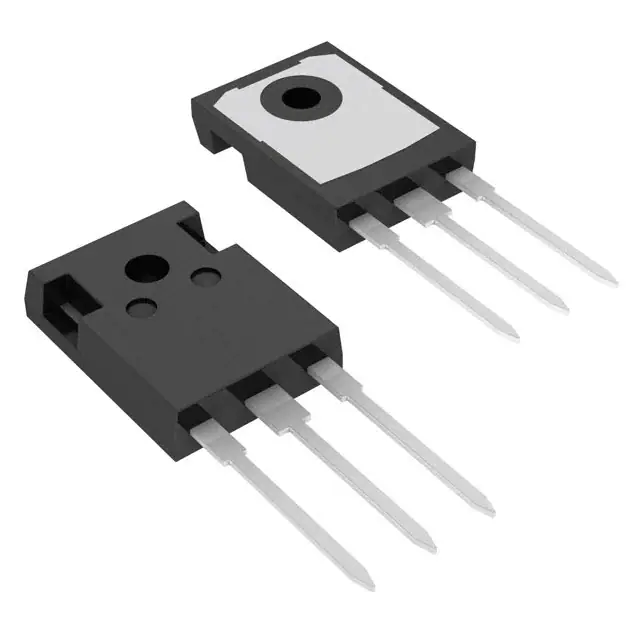

The FCH072N60F-F085 is a high-voltage N-Channel MOSFET from onsemi, part of their SUPERFET II family. This device utilizes advanced charge balance technology to achieve outstanding low on-resistance and lower gate charge performance. It is designed to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rates and higher avalanche energy. This makes it suitable for various AC/DC power conversion applications, contributing to system miniaturization and higher efficiency.
Key Specifications
Parameter | Unit | Min. | Typ. | Max. |
---|---|---|---|---|
Drain to Source Voltage (VDSS) | V | - | - | 600 |
Gate to Source Voltage (VGSS) | V | - | - | ±20 (DC), ±30 (AC, f > 1 Hz) |
Continuous Drain Current (ID) at TC = 25°C | A | - | - | 52 |
Pulsed Drain Current (IDM) | A | - | - | 156 |
Static Drain to Source On Resistance (RDS(on)) at VGS = 10 V, ID = 26 A | mΩ | - | 66 | 72 |
Total Gate Charge (Qg(tot)) at VGS = 10 V | nC | - | 95 | 125 |
Effective Output Capacitance (Coss(eff.)) | pF | - | 421 | - |
Operating and Storage Temperature Range (TJ, TSTG) | °C | -55 | - | 150 |
Key Features
- Ultra-low on-resistance (Typ. RDS(on) = 66 mΩ) at VGS = 10 V, ID = 26 A
- High voltage rating: 600 V at TJ = 150°C
- Ultra-low gate charge (Typ. Qg = 95 nC)
- Low effective output capacitance (Typ. Coss(eff.) = 421 pF)
- 100% avalanche tested
- Pb-free and RoHS compliant
- Superior switching performance and high dv/dt capability
Applications
- Telecom power supplies
- Server power supplies
- Industrial power supplies
- AC/DC power conversion systems
Q & A
- What is the maximum drain to source voltage of the FCH072N60F-F085 MOSFET?
The maximum drain to source voltage (VDSS) is 600 V at TJ = 150°C.
- What is the typical on-resistance of the FCH072N60F-F085?
The typical static drain to source on-resistance (RDS(on)) is 66 mΩ at VGS = 10 V, ID = 26 A.
- What is the maximum continuous drain current of the FCH072N60F-F085?
The maximum continuous drain current (ID) is 52 A at TC = 25°C.
- Is the FCH072N60F-F085 Pb-free and RoHS compliant?
Yes, the FCH072N60F-F085 is Pb-free and RoHS compliant.
- What are the typical applications of the FCH072N60F-F085 MOSFET?
The typical applications include telecom power supplies, server power supplies, industrial power supplies, and AC/DC power conversion systems.
- What is the operating and storage temperature range of the FCH072N60F-F085?
The operating and storage temperature range is -55°C to +150°C.
- What is the total gate charge of the FCH072N60F-F085?
The total gate charge (Qg(tot)) is typically 95 nC at VGS = 10 V.
- Is the FCH072N60F-F085 100% avalanche tested?
Yes, the FCH072N60F-F085 is 100% avalanche tested.
- What is the effective output capacitance of the FCH072N60F-F085?
The effective output capacitance (Coss(eff.)) is typically 421 pF.
- Has the FCH072N60F-F085 been discontinued?
Yes, the FCH072N60F-F085 has been discontinued by onsemi as per their product discontinuance notice.
