Overview

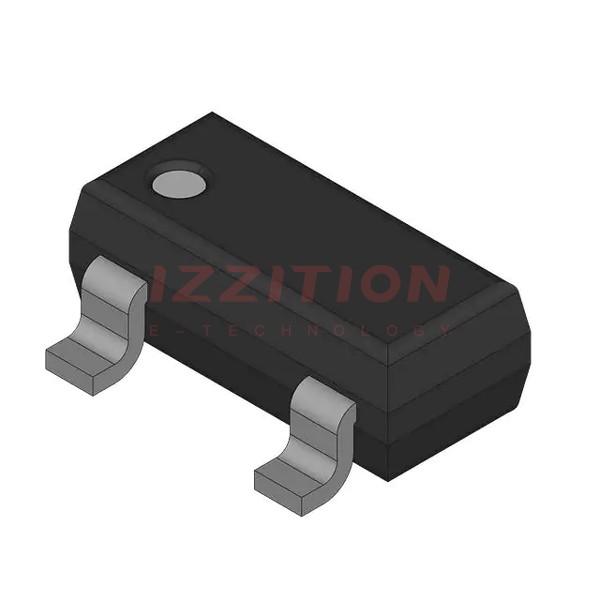

The PBHV8115TLH215 is a discrete semiconductor product manufactured by NXP Semiconductors. It is a type of Field-Effect Transistor (FET), specifically a MOSFET, designed for various electronic applications. This component is known for its high performance and reliability, making it a popular choice in the industry.
Key Specifications
| Specification | Value |
|---|---|
| Type | MOSFET |
| Configuration | Single |
| Polarity | N-Channel |
| Drain-Source Voltage (Vds) | 60 V |
| Gate-Source Voltage (Vgs) | ±20 V |
| Continuous Drain Current (Id) | 4 A |
| Pulse Drain Current (Idm) | 16 A |
| Threshold Voltage (Vth) | 1 to 3 V |
| Package | TO-220 |
| Operating Temperature Range | -55°C to 150°C |
Key Features
- High drain current capability of up to 4 A continuous and 16 A pulse.
- Low on-state resistance, enhancing efficiency in power applications.
- High switching speed, suitable for high-frequency operations.
- Robust TO-220 package for reliable thermal management.
- Broad operating temperature range from -55°C to 150°C.
Applications
- Power supplies and DC-DC converters.
- Motor control and drive systems.
- Audio amplifiers and power amplifiers.
- Switching regulators and voltage regulators.
- Automotive and industrial control systems.
Q & A
- What is the PBHV8115TLH215? The PBHV8115TLH215 is a MOSFET transistor manufactured by NXP Semiconductors.
- What is the maximum drain-source voltage of the PBHV8115TLH215? The maximum drain-source voltage is 60 V.
- What is the continuous drain current of the PBHV8115TLH215? The continuous drain current is 4 A.
- What is the package type of the PBHV8115TLH215? The package type is TO-220.
- What is the operating temperature range of the PBHV8115TLH215? The operating temperature range is from -55°C to 150°C.
- What are some common applications of the PBHV8115TLH215? Common applications include power supplies, motor control systems, audio amplifiers, and automotive systems.
- What is the gate-source voltage range for the PBHV8115TLH215? The gate-source voltage range is ±20 V.
- Is the PBHV8115TLH215 suitable for high-frequency operations? Yes, it is suitable for high-frequency operations due to its high switching speed.
- What is the threshold voltage range of the PBHV8115TLH215? The threshold voltage range is 1 to 3 V.
- Where can I purchase the PBHV8115TLH215? You can purchase the PBHV8115TLH215 from various electronic component distributors such as Digi-Key, Mouser, and other authorized suppliers.
