Overview

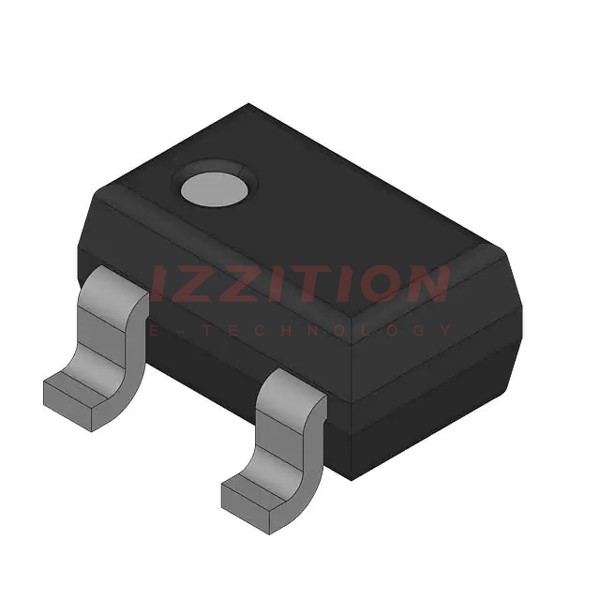

The PMST2222A is an NPN switching transistor manufactured by Nexperia, not NXP Semiconductors, although it may be confused due to historical reasons. This transistor is designed for high-speed switching and linear amplification applications. It is packaged in a SOT323 (SC-70) plastic package, making it suitable for surface-mount technology. The PMST2222A is AEC-Q101 qualified, indicating its suitability for automotive applications.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type | NPN | - |
| Maximum Collector Current | 600 | mA |
| Maximum Collector-Emitter Voltage | 40 | V |
| Transition Frequency | 300 | MHz |
| Power Dissipation | 200 | mW |
| Package | SOT323 (SC-70) | - |
| Package Dimensions | 2 x 1.25 x 0.95 | mm |
| AEC-Q101 Qualified | Yes | - |
Key Features
High-Speed Switching: The PMST2222A is designed for high-speed switching applications, making it suitable for use in high-frequency circuits.
Linear Amplification: It can also be used for linear amplification, providing a versatile solution for various electronic designs.
AEC-Q101 Qualified: This qualification ensures the transistor meets the stringent requirements for automotive applications, enhancing reliability and performance.
Low Voltage and High Current: With a maximum collector-emitter voltage of 40 V and a maximum collector current of 600 mA, it is suitable for a wide range of applications.
Compact Package: The SOT323 package is compact and suitable for surface-mount technology, making it ideal for space-constrained designs.
Applications
Automotive: Due to its AEC-Q101 qualification, the PMST2222A is widely used in automotive electronics for various control and switching applications.
Industrial: It is used in industrial control systems, motor control, and other high-reliability applications.
Consumer Electronics: The transistor is also used in consumer electronics for switching and amplification purposes.
High-Speed Switching Circuits: Its high transition frequency makes it suitable for high-speed switching circuits in various electronic devices.
Q & A
- What is the maximum collector current of the PMST2222A transistor?
The maximum collector current of the PMST2222A transistor is 600 mA.
- What is the maximum collector-emitter voltage of the PMST2222A transistor?
The maximum collector-emitter voltage of the PMST2222A transistor is 40 V.
- What package type is used for the PMST2222A transistor?
The PMST2222A transistor is packaged in a SOT323 (SC-70) plastic package.
- Is the PMST2222A transistor AEC-Q101 qualified?
Yes, the PMST2222A transistor is AEC-Q101 qualified, making it suitable for automotive applications.
- What is the transition frequency of the PMST2222A transistor?
The transition frequency of the PMST2222A transistor is 300 MHz.
- What are the typical applications of the PMST2222A transistor?
The PMST2222A transistor is used in automotive, industrial, consumer electronics, and high-speed switching circuits.
- How much power can the PMST2222A transistor dissipate?
The PMST2222A transistor can dissipate up to 200 mW of power.
- What are the dimensions of the SOT323 package used for the PMST2222A transistor?
The dimensions of the SOT323 package are 2 x 1.25 x 0.95 mm.
- Can the PMST2222A transistor be used for linear amplification?
Yes, the PMST2222A transistor can be used for both high-speed switching and linear amplification.
- How can I obtain samples of the PMST2222A transistor?
Samples of the PMST2222A transistor can be obtained through Nexperia's sales organization or through their network of global and regional distributors.
