Overview

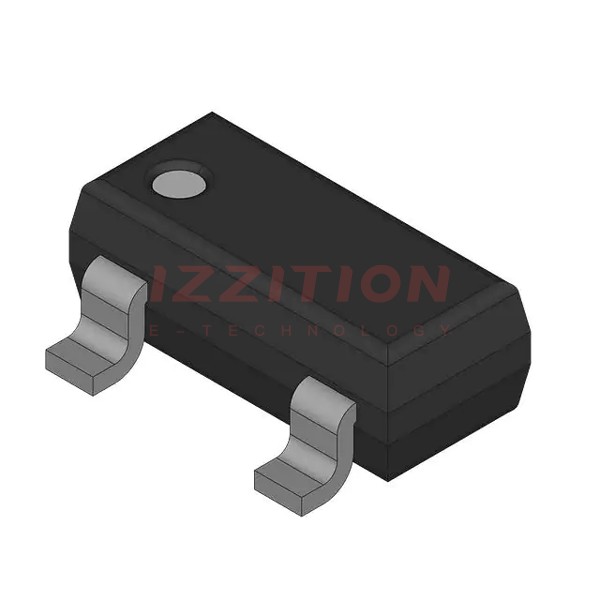

The PMBT4401/S911,215 is a single bipolar transistor manufactured by NXP Semiconductors. This NPN switching transistor is designed for general-purpose applications and is known for its reliability and performance. The transistor is packaged in a SOT23-3 case, making it suitable for surface mount technology (SMT) and compact electronic designs.
Key Specifications
| Category | Specification |
|---|---|
| Manufacturer | NXP Semiconductors |
| Transistor Type | NPN Switching Transistor |
| Package/Case | SOT23-3 |
| Collector Current (Ic) (Max) | 600 mA |
| Voltage - Collector Emitter Breakdown (Max) | 40 V |
| Power Dissipation (Max) | 250 mW |
| Operating Temperature | -55°C to 150°C |
| Mounting Type | Surface Mount |
| RoHS Compliance | Yes |
Key Features
- Compact SOT23-3 Package: Suitable for surface mount technology, making it ideal for space-constrained designs.
- High Collector Current: Up to 600 mA, making it suitable for a variety of switching applications.
- High Voltage Rating: Collector-emitter breakdown voltage of 40 V, ensuring robust performance in various conditions.
- Low Power Dissipation: Maximum power dissipation of 250 mW, which is efficient for low-power applications.
- Wide Operating Temperature Range: Operates from -55°C to 150°C, making it versatile for different environmental conditions.
- RoHS Compliance: Compliant with RoHS regulations, ensuring environmental sustainability.
Applications
- General Purpose Switching: Suitable for various switching applications in electronic circuits.
- Automotive Systems: Can be used in automotive electronics due to its robust performance and wide operating temperature range.
- Consumer Electronics: Ideal for use in consumer electronics such as audio equipment, home appliances, and other electronic devices.
- Industrial Control Systems: Used in industrial control systems where reliability and performance are critical.
Q & A
- What is the maximum collector current of the PMBT4401/S911,215 transistor?
The maximum collector current is 600 mA.
- What is the package type of the PMBT4401/S911,215 transistor?
The transistor is packaged in a SOT23-3 case.
- What is the voltage rating of the PMBT4401/S911,215 transistor?
The collector-emitter breakdown voltage is 40 V.
- Is the PMBT4401/S911,215 transistor RoHS compliant?
Yes, it is RoHS compliant.
- What is the operating temperature range of the PMBT4401/S911,215 transistor?
The operating temperature range is from -55°C to 150°C.
- What are some common applications of the PMBT4401/S911,215 transistor?
It is used in general-purpose switching, automotive systems, consumer electronics, and industrial control systems.
- How much power can the PMBT4401/S911,215 transistor dissipate?
The maximum power dissipation is 250 mW.
- Is the PMBT4401/S911,215 transistor suitable for surface mount technology?
Yes, it is suitable for surface mount technology.
- Where can I find the datasheet for the PMBT4401/S911,215 transistor?
The datasheet can be found on the manufacturer's website or through authorized distributors.
- What is the warranty period for the PMBT4401/S911,215 transistor?
Typically, it comes with a 365-day quality guarantee.
