Overview

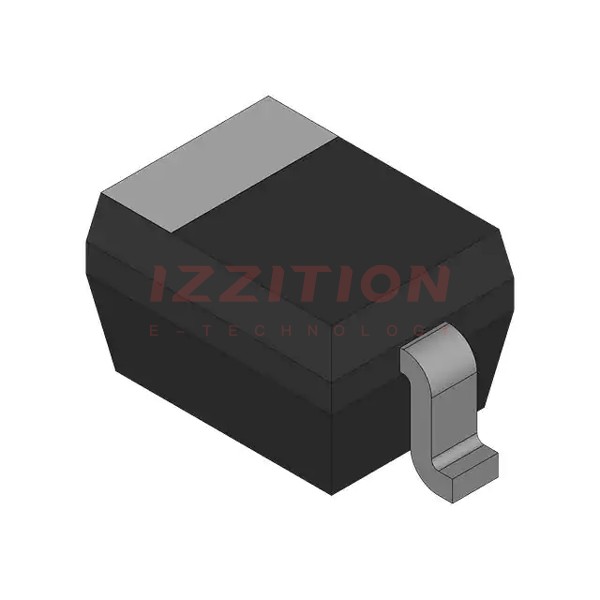

The TDZ5V6J/ZL,135 is a single Zener diode produced by NXP Semiconductors. This component is designed for surface mount applications and is part of the TDZxJ series. It is characterized by its nominal Zener voltage of 5.6V and a maximum power dissipation of 500 mW. The diode is RoHS compliant and qualified to the AEC-Q101 standard, making it suitable for automotive and other demanding applications.
Key Specifications
| Parameter | Value |
|---|---|
| Series | TDZxJ |
| Product Status | Active |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
| Tolerance | ±2% |
| Power - Max | 500 mW |
| Impedance (Max) (Zzt) | 40 Ohms |
| Current - Reverse Leakage @ Vr | 10 µA @ 2.5 V |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 100 mA |
| Operating Temperature | -55°C ~ 150°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | SC-90, SOD-323F |
Key Features
- Nominal Zener Voltage: 5.6V with a tolerance of ±2%
- Maximum Power Dissipation: 500 mW
- Low Reverse Leakage Current: 10 µA at 2.5 V
- Low Forward Voltage Drop: 1.1 V at 100 mA
- Wide Operating Temperature Range: -55°C to 150°C
- AEC-Q101 Qualified: Suitable for automotive applications
- RoHS Compliant: Environmentally friendly
- Surface Mount Package: SC-90, SOD-323F for easy integration
Applications
- Automotive Systems: Voltage regulation and protection in automotive electronics
- Industrial Control Systems: Voltage stabilization and surge protection
- Consumer Electronics: Overvoltage protection and voltage regulation in various consumer devices
- Medical Devices: Reliable voltage regulation in medical equipment
- Aerospace and Defense: High-reliability voltage regulation in aerospace and defense applications
