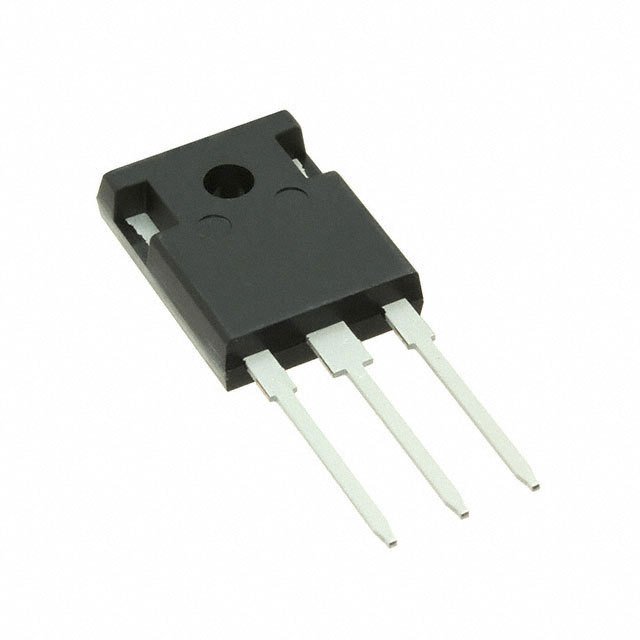

Infineon Technologies SPW20N60C3E8177FKSA1

Manufacturer No:
SPW20N60C3E8177FKSA1
Manufacturer:
Infineon Technologies
Package:
Bulk
Description:
MOSFET N-CH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The SPW20N60C3E8177FKSA1 is a high-performance N-channel power MOSFET produced by Infineon Technologies. This device is part of the CoolMOS™ family, known for its high efficiency and reliability in various power management applications. The SPW20N60C3E8177FKSA1 is designed to operate at high voltages and currents, making it suitable for demanding industrial and automotive environments.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)650 V
VGS (Gate-Source Voltage)±20 V
ID (Continuous Drain Current)20 A
RDS(on) (On-Resistance)180 mΩ (typical at VGS = 10 V)
PD (Power Dissipation)250 W
TJ (Junction Temperature)-55°C to 150°C
PackageTO-247

Key Features

  • High voltage and current handling capabilities.
  • Low on-resistance (RDS(on)) for reduced power losses.
  • High thermal stability and reliability.
  • Compact TO-247 package for efficient heat dissipation.
  • Compliant with RoHS and halogen-free standards.

Applications

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Automotive systems, including electric vehicles and hybrid vehicles.
  • Industrial power systems, such as welding equipment and power tools.
  • Renewable energy systems, including solar and wind power inverters.

Q & A

  1. What is the maximum drain-source voltage of the SPW20N60C3E8177FKSA1?
    The maximum drain-source voltage is 650 V.
  2. What is the typical on-resistance of the SPW20N60C3E8177FKSA1?
    The typical on-resistance is 180 mΩ at VGS = 10 V.
  3. What is the continuous drain current rating of the SPW20N60C3E8177FKSA1?
    The continuous drain current rating is 20 A.
  4. What is the junction temperature range of the SPW20N60C3E8177FKSA1?
    The junction temperature range is -55°C to 150°C.
  5. What package type is the SPW20N60C3E8177FKSA1 available in?
    The SPW20N60C3E8177FKSA1 is available in the TO-247 package.
  6. Is the SPW20N60C3E8177FKSA1 RoHS compliant?
    Yes, the SPW20N60C3E8177FKSA1 is RoHS compliant and halogen-free.
  7. What are some common applications for the SPW20N60C3E8177FKSA1?
    Common applications include power supplies, motor control systems, automotive systems, industrial power systems, and renewable energy systems.
  8. What is the power dissipation rating of the SPW20N60C3E8177FKSA1?
    The power dissipation rating is 250 W.
  9. What is the gate-source voltage range for the SPW20N60C3E8177FKSA1?
    The gate-source voltage range is ±20 V.
  10. Where can I find detailed specifications and datasheets for the SPW20N60C3E8177FKSA1?
    Detailed specifications and datasheets can be found on the official Infineon Technologies website, as well as on distributor websites such as Digi-Key, Mouser, and CPC Farnell.
