Overview

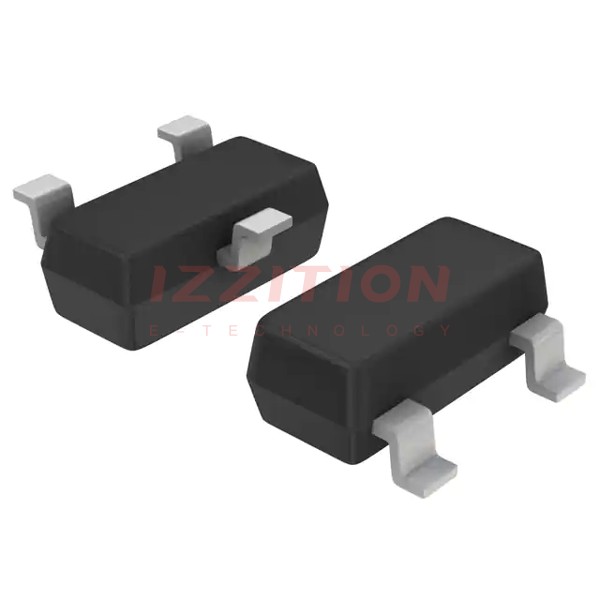

The IRLML6402TR is a -20V single P-channel HEXFET power MOSFET produced by Infineon Technologies. It is packaged in a low-profile Micro3 (SOT-23) package, which is ideal for applications where printed circuit board space is at a premium. This MOSFET features extremely low on-resistance per silicon area, fast switching speeds, and a ruggedized device design, making it highly efficient and reliable for various applications.
Key Specifications
| FET Type | P-Channel |
|---|---|
| Drain-to-Source Voltage (Vdss) | 20V |
| Drain-Source On Resistance-Max (Rds(on)) | 0.065Ω @ Vgs = -4.5V, Id = -3.7A |
| Rated Power Dissipation (Pd) | 1.3W @ 25°C |
| Gate Charge (Qg) | 8nC |
| Package Style | MICRO-3 (SOT-23) |
| Mounting Method | Surface Mount |
| Continuous Drain Current (Id) | -3.7A @ Vgs = -4.5V, 25°C |
| Operating Junction Temperature Range | -55°C to 150°C |
| Gate to Source Voltage (Vgs) | ±12V |
Key Features
- Ultra-low on-resistance
- P-Channel MOSFET
- SOT-23 footprint
- Low profile (<1.1mm)
- Available in tape and reel
- Fast switching
- Lead-free and halogen-free
- Planar cell structure for wide SOA
- Industry standard surface-mount package
Applications
- Battery and load management
- Portable electronics
- PCMCIA cards
- Printed circuit boards where space is at a premium
- DC switches and load switches
- Medical electronics
- IoT devices
- New energy applications
Q & A
- What is the drain-to-source voltage rating of the IRLML6402TR?
The drain-to-source voltage (Vdss) rating is 20V.
- What is the maximum on-resistance of the IRLML6402TR?
The maximum on-resistance (Rds(on)) is 0.065Ω at Vgs = -4.5V and Id = -3.7A.
- What is the rated power dissipation of the IRLML6402TR?
The rated power dissipation (Pd) is 1.3W at 25°C.
- What is the package style of the IRLML6402TR?
The package style is MICRO-3 (SOT-23).
- Is the IRLML6402TR lead-free and halogen-free?
- What are the typical applications of the IRLML6402TR?
Typical applications include battery and load management, portable electronics, PCMCIA cards, and printed circuit boards where space is limited.
- What is the operating junction temperature range of the IRLML6402TR?
The operating junction temperature range is -55°C to 150°C.
- Is the IRLML6402TR available in tape and reel packaging?
- What is the continuous drain current rating of the IRLML6402TR?
The continuous drain current (Id) rating is -3.7A at Vgs = -4.5V and 25°C.
- Does the IRLML6402TR comply with RoHS standards?
