Overview

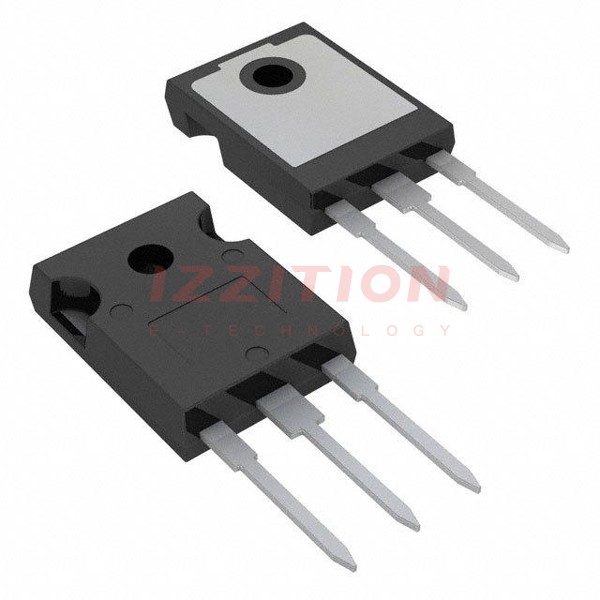

The IRFP064NPBF is a 55V single N-Channel Power MOSFET manufactured by Infineon Technologies, formerly International Rectifier. This device is part of the IR MOSFET family, which utilizes proven silicon processes to offer a wide range of devices suitable for various applications. The IRFP064NPBF is packaged in a TO-247 package, which is designed for efficient heat dissipation and high power handling capabilities.
Key Specifications
| Parameter | Value |
|---|---|
| Maximum Drain-Source Voltage (VDSS) | 200V |
| Continuous Drain Current (ID) | 11A |
| Pulsed Drain Current (IDM) | 64A |
| Rated Gate-Source Voltage (VGS) | ±20V |
| On-Resistance (RDS(on)) | 0.045Ω |
| Package | TO-247 |
Key Features
- N-Channel enhancement mode
- High power and voltage handling capabilities
- TO-247 package for efficient heat dissipation
- Low on-resistance (RDS(on)) of 0.045Ω
- Planar cell structure for wide Safe Operating Area (SOA)
- Optimized for broadest availability from distribution partners
- Product qualification according to JEDEC standard
- Silicon optimized for applications switching below 100kHz
Applications
- Switching applications in power supplies, converters, and motor drivers
- High-current amplifiers
- Power management circuits
- DC motors, inverters, SMPS, lighting, load switches, and battery-powered applications
Q & A
- What is the maximum drain-source voltage of the IRFP064NPBF?
The maximum drain-source voltage (VDSS) is 200V. - What is the continuous drain current rating of the IRFP064NPBF?
The continuous drain current (ID) is 11A. - What is the pulsed drain current rating of the IRFP064NPBF?
The pulsed drain current (IDM) is 64A. - What is the rated gate-source voltage of the IRFP064NPBF?
The rated gate-source voltage (VGS) is ±20V. - What is the on-resistance of the IRFP064NPBF?
The on-resistance (RDS(on)) is 0.045Ω. - In what package is the IRFP064NPBF available?
The IRFP064NPBF is available in a TO-247 package. - What are some common applications of the IRFP064NPBF?
Common applications include switching in power supplies, converters, motor drivers, high-current amplifiers, and power management circuits. - Is the IRFP064NPBF qualified according to any industry standards?
Yes, the IRFP064NPBF is qualified according to JEDEC standards. - What is the planar cell structure of the IRFP064NPBF beneficial for?
The planar cell structure provides a wide Safe Operating Area (SOA). - Why is the TO-247 package beneficial for the IRFP064NPBF?
The TO-247 package is beneficial for efficient heat dissipation and high power handling capabilities.
