Overview

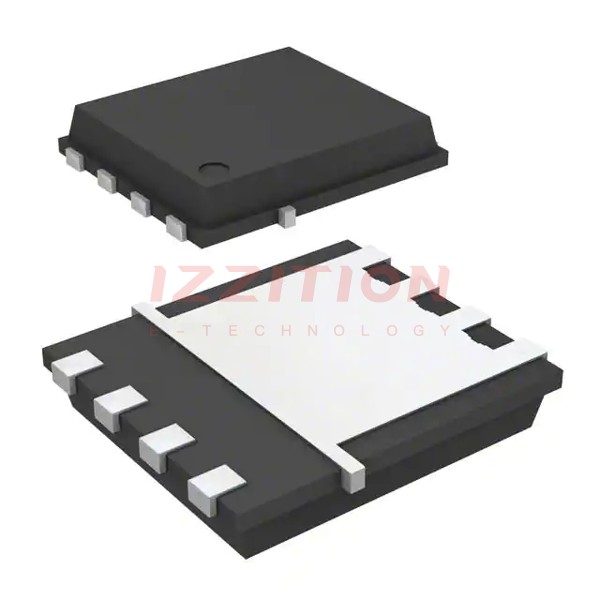

The BSC035N10NS5ATMA1 is a high-performance N-channel MOSFET produced by Infineon Technologies. Designed for power management applications, this MOSFET is part of Infineon's OptiMOS™ 5 family, which is renowned for its low on-resistance and high switching efficiency. The BSC035N10NS5ATMA1 is specifically targeted at applications requiring high power density and energy efficiency, such as DC-DC converters, motor drives, and synchronous rectification. Its compact design and advanced technology make it a competitive choice for modern power electronics systems.
Key Specifications
Parameter | Value | Unit | Notes |
---|---|---|---|
Drain-Source Voltage (VDS) | 100 | V | |
Continuous Drain Current (ID) | 35 | A | |
On-Resistance (RDS(on)) | 3.5 | mΩ | VGS = 10 V |
Gate-Source Voltage (VGS) | ±20 | V | |
Power Dissipation (PD) | 83 | W | |
Operating Junction Temperature (TJ) | -55 to +175 | °C | |
Package | TO-263 (D2PAK) |
Key Features
- Low On-Resistance: Minimizes conduction losses, enhancing efficiency.
- High Switching Speed: Optimized for fast switching applications.
- Robust Thermal Performance: Designed to handle high power dissipation.
- Compact Package: TO-263 (D2PAK) ensures space-saving integration.
- Wide Operating Temperature Range: Suitable for harsh environments.
Applications
The BSC035N10NS5ATMA1 is widely used in various power management applications, including:
- DC-DC Converters: Enhances efficiency in step-up or step-down voltage conversion.
- Motor Drives: Provides reliable switching for motor control systems.
- Synchronous Rectification: Reduces losses in power supply circuits.
- Industrial Automation: Supports high-power applications in industrial equipment.
- Consumer Electronics: Ideal for compact, energy-efficient designs.
Q & A
1. What is the maximum drain-source voltage for the BSC035N10NS5ATMA1?
The maximum drain-source voltage (VDS) is 100 V.
2. What is the typical on-resistance of this MOSFET?
The typical on-resistance (RDS(on)) is 3.5 mΩ at VGS = 10 V.
3. Can this MOSFET handle high currents?
Yes, it supports a continuous drain current (ID) of up to 35 A.
4. What package does the BSC035N10NS5ATMA1 use?
It uses the TO-263 (D2PAK) package.
5. Is this MOSFET suitable for high-temperature environments?
Yes, it operates within a junction temperature range of -55°C to +175°C.
6. What is the gate-source voltage range?
The gate-source voltage (VGS) range is ±20 V.
7. What are the primary applications of this MOSFET?
It is used in DC-DC converters, motor drives, synchronous rectification, and industrial automation.
8. How does this MOSFET improve efficiency?
Its low on-resistance and high switching speed minimize energy losses.
9. Is the BSC035N10NS5ATMA1 RoHS compliant?
Yes, it is RoHS compliant.
10. What makes the OptiMOS™ 5 family unique?
The OptiMOS™ 5 family is known for its low on-resistance, high switching efficiency, and robust thermal performance.
