BAS4007WE6327BTSA1
  • Share:

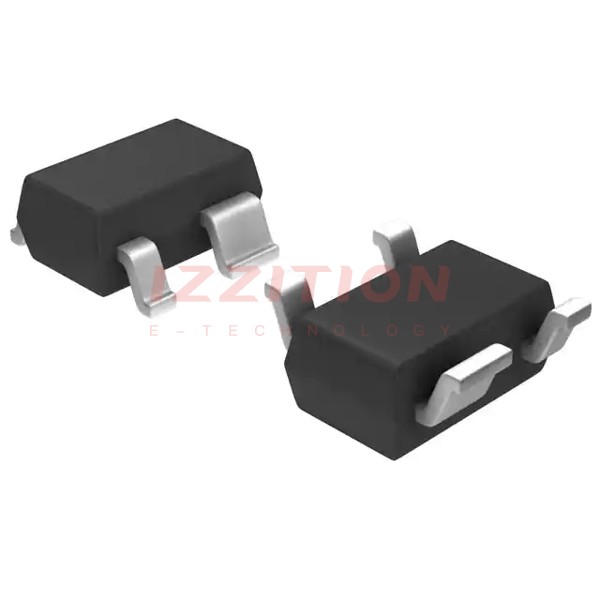

Infineon Technologies BAS4007WE6327BTSA1

Manufacturer No:
BAS4007WE6327BTSA1
Manufacturer:
Infineon Technologies
Package:
Tape & Reel (TR)
Description:
DIODE ARRAY SCHOTTKY 40V SOT343
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BAS4007WE6327BTSA1 is a Schottky diode array produced by Infineon Technologies. However, it is important to note that this component is currently obsolete and no longer manufactured. Despite its obsolescence, it remains relevant for understanding historical design choices and for maintenance or repair of existing systems that incorporate this component.

Key Specifications

SpecificationValue
Part NumberBAS4007WE6327BTSA1
BrandInfineon Technologies AG
PackageTape & Reel (TR)
Part StatusObsolete
Diode Configuration2 Independent
Diode TypeSchottky
Voltage - DC Reverse (Vr) (Max)Not specified in available sources, refer to datasheet for detailed information

Key Features

  • Schottky diode technology for low forward voltage drop and fast switching times.
  • Configuration of 2 independent diodes.
  • Tape & Reel packaging for automated assembly.
  • Designed for high efficiency and reliability in various electronic circuits.

Applications

The BAS4007WE6327BTSA1 Schottky diode array was typically used in applications requiring low voltage drop and high switching speeds, such as in power supplies, voltage regulators, and other high-frequency circuits. Despite being obsolete, similar components are still used in modern designs for these purposes.

Q & A

  1. What is the BAS4007WE6327BTSA1?

    The BAS4007WE6327BTSA1 is a Schottky diode array produced by Infineon Technologies.

  2. Why is the BAS4007WE6327BTSA1 no longer available?

    The BAS4007WE6327BTSA1 is obsolete and no longer manufactured.

  3. What type of diodes are in the BAS4007WE6327BTSA1?

    The component contains 2 independent Schottky diodes.

  4. What is the packaging type of the BAS4007WE6327BTSA1?

    The component is packaged in Tape & Reel (TR) format.

  5. What are the key features of the BAS4007WE6327BTSA1?

    Key features include Schottky diode technology, 2 independent diodes, and Tape & Reel packaging.

  6. What applications was the BAS4007WE6327BTSA1 used for?

    It was used in power supplies, voltage regulators, and other high-frequency circuits.

  7. Where can I find a substitute for the BAS4007WE6327BTSA1?

    Available substitutes include the BAS4007WH6327XTSA1, which can be found on suppliers like Digi-Key.

  8. How can I obtain the datasheet for the BAS4007WE6327BTSA1?

    The datasheet can be obtained from the official Infineon Technologies website or through suppliers like Digi-Key and Ample Chip.

  9. What is the significance of Schottky diode technology in the BAS4007WE6327BTSA1?

    Schottky diode technology provides low forward voltage drop and fast switching times, making it suitable for high-efficiency applications.

  10. Can I still use the BAS4007WE6327BTSA1 in new designs?

    No, it is not recommended to use obsolete components in new designs. Instead, use the recommended substitutes.

Product Attributes

Diode Configuration:2 Independent
Diode Type:Schottky
Voltage - DC Reverse (Vr) (Max):40 V
Current - Average Rectified (Io) (per Diode):120mA (DC)
Voltage - Forward (Vf) (Max) @ If:1 V @ 40 mA
Speed:Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr):100 ps
Current - Reverse Leakage @ Vr:1 µA @ 30 V
Operating Temperature - Junction:150°C (Max)
Mounting Type:Surface Mount
Package / Case:SC-82A, SOT-343
Supplier Device Package:PG-SOT343-3D
0 Remaining View Similar

In Stock

-
608

Please send RFQ , we will respond immediately.
