BSC028N06NSSCATMA1
  • Share:

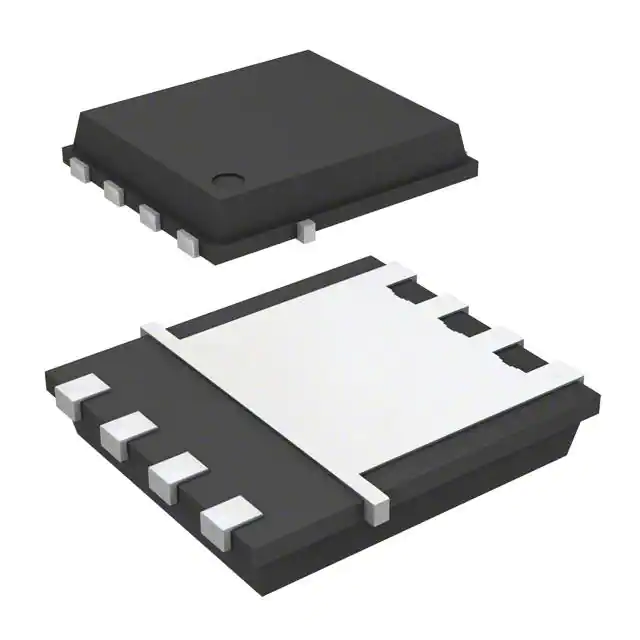

Infineon Technologies BSC028N06NSSCATMA1

Manufacturer No:
BSC028N06NSSCATMA1
Manufacturer:
Infineon Technologies
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 100A TDSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BSC028N06NS, produced by Infineon Technologies, is a high-performance N-channel MOSFET part of the OptiMOS™ 5 series. This device is optimized for synchronous rectification in switched mode power supplies (SMPS), making it ideal for applications in servers, desktops, and tablet chargers. It is also suitable for a broad range of industrial applications, including motor control, solar micro inverters, and fast switching DC-DC converters.

Key Specifications

Parameter Value Unit Note/Test Condition
Drain-Source Breakdown Voltage (VDS) 60 V VGS = 0 V, ID = 1 mA
Continuous Drain Current (ID) 137 A VGS = 10 V, TJ = 25°C
Pulsed Drain Current (ID) 548 A Pulsed, TJ = 25°C
Drain-Source On-Resistance (RDS(on)) 2.8 mΩ VGS = 10 V, ID = 50 A
Gate Threshold Voltage (VGS(th)) 2.1 - 3.3 V VDS = VGS, ID = 250 μA
Gate Charge (QG) 43 nC VGS = 0 to 10 V
Junction Temperature (TJ) 175 °C

Key Features

  • Optimized for synchronous rectification in SMPS.
  • 40% lower RDS(on) compared to alternative devices.
  • 40% improvement in Figure of Merit (FOM) over similar devices.
  • RoHS compliant and halogen-free according to IEC61249-2-21.
  • MSL1 rated.
  • Superior thermal resistance.
  • 100% avalanche tested.

Applications

  • Synchronous rectification in switched mode power supplies (SMPS).
  • Solar micro inverters.
  • Isolated DC-DC converters.
  • Motor control for 12-48V systems.
  • Or-ing switches.

Q & A

  1. What is the primary application of the BSC028N06NS MOSFET?

    The primary application is synchronous rectification in switched mode power supplies (SMPS), such as those found in servers, desktops, and tablet chargers.

  2. What are the key benefits of using the BSC028N06NS?

    The key benefits include highest system efficiency, less paralleling required, increased power density, system cost reduction, and very low voltage overshoot.

  3. What is the maximum drain-source breakdown voltage of the BSC028N06NS?

    The maximum drain-source breakdown voltage is 60 V.

  4. What is the continuous drain current rating of the BSC028N06NS at 25°C?

    The continuous drain current rating is 137 A at 25°C.

  5. Is the BSC028N06NS RoHS compliant?
  6. What is the gate threshold voltage range of the BSC028N06NS?

    The gate threshold voltage range is 2.1 to 3.3 V.

  7. What is the maximum junction temperature of the BSC028N06NS?

    The maximum junction temperature is 175°C.

  8. What are some of the industrial applications of the BSC028N06NS?

    Industrial applications include motor control, solar micro inverters, and fast switching DC-DC converters.

  9. Does the BSC028N06NS have any special thermal features?
  10. What is the package type of the BSC028N06NS?

    The package type is PG-TDSON-8.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:100A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:2.8mOhm @ 50A, 10V
Vgs(th) (Max) @ Id:3.3V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:49 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3375 pF @ 30 V
FET Feature:-
Power Dissipation (Max):2.5W (Ta), 83W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PG-TDSON-8-7
Package / Case:8-PowerTDFN
0 Remaining View Similar

In Stock

$2.89
307

Please send RFQ , we will respond immediately.
