BC846BWE6327HTSA1
  • Share:

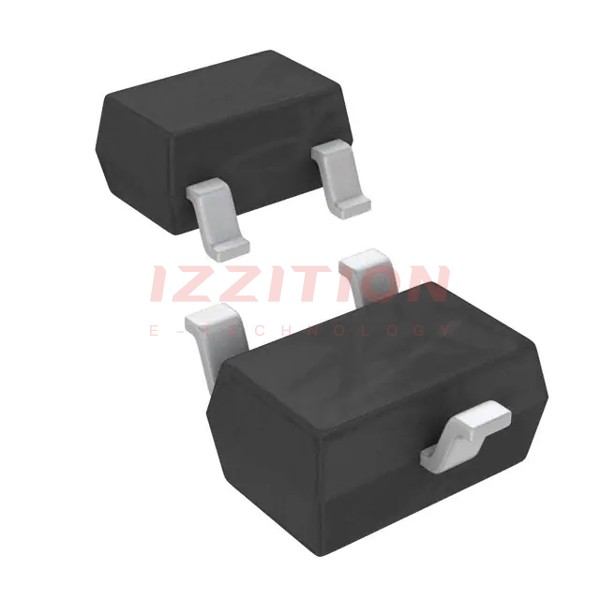

Infineon Technologies BC846BWE6327HTSA1

Manufacturer No:
BC846BWE6327HTSA1
Manufacturer:
Infineon Technologies
Package:
Tape & Reel (TR)
Description:
TRANS NPN 65V 0.1A SOT-323
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BC846BWE6327HTSA1 is a general-purpose NPN bipolar junction transistor (BJT) produced by Infineon Technologies. This transistor is designed for a wide range of applications requiring low to medium power amplification and switching. It is packaged in the SC-70 (SOT-323) case, making it suitable for surface mount technology (SMT) assembly. The BC846BWE6327HTSA1 is known for its high current gain, low noise, and robust thermal characteristics, making it a reliable choice for various electronic circuits.

Key Specifications

CharacteristicValueUnit
Transistor TypeNPN-
Current - Collector (Ic) (Max)100mA
Voltage - Collector Emitter Breakdown (Max)65V
Collector-Base Breakdown Voltage (V(BR)CBO)80V
Emitter-Base Breakdown Voltage (V(BR)EBO)6V
DC Current Gain (hFE)200 (Min)-
Collector-Emitter Saturation Voltage (VCE(sat))0.25 (Typ)V
Base-Emitter Saturation Voltage (VBE(sat))0.7 (Typ)V
Maximum Power Dissipation330mW
Operating Temperature Range-65 to +150°C
Package TypeSC-70 (SOT-323)-
Number of Pins3-

Key Features

  • High DC current gain (hFE) of up to 200, ensuring reliable amplification.
  • Low collector-emitter saturation voltage (VCE(sat)) of 0.25 V, reducing power losses in switching applications.
  • Robust breakdown voltages: V(BR)CEO = 65 V, V(BR)CBO = 80 V, and V(BR)EBO = 6 V, providing protection against voltage spikes.
  • Wide operating temperature range from -65°C to +150°C, making it suitable for various environmental conditions.
  • Compact SC-70 (SOT-323) package, ideal for surface mount technology and space-constrained designs.
  • RoHS compliant, ensuring environmental sustainability.

Applications

The BC846BWE6327HTSA1 is versatile and can be used in a variety of applications, including:

  • General-purpose amplification and switching circuits.
  • Audio and video amplifiers.
  • Power supplies and voltage regulators.
  • Automotive and industrial control systems.
  • Consumer electronics such as TVs, radios, and other household appliances.

Q & A

  1. What is the maximum collector current of the BC846BWE6327HTSA1?
    The maximum collector current is 100 mA.
  2. What is the collector-emitter breakdown voltage of this transistor?
    The collector-emitter breakdown voltage is 65 V.
  3. What is the typical DC current gain (hFE) of the BC846BWE6327HTSA1?
    The typical DC current gain (hFE) is 200.
  4. What is the operating temperature range of this transistor?
    The operating temperature range is from -65°C to +150°C.
  5. Is the BC846BWE6327HTSA1 RoHS compliant?
    Yes, it is RoHS compliant.
  6. What is the package type of the BC846BWE6327HTSA1?
    The package type is SC-70 (SOT-323).
  7. What is the maximum power dissipation of this transistor?
    The maximum power dissipation is 330 mW.
  8. What are some common applications of the BC846BWE6327HTSA1?
    It is used in general-purpose amplification, switching circuits, audio and video amplifiers, power supplies, and automotive and industrial control systems.
  9. How many pins does the BC846BWE6327HTSA1 have?
    It has 3 pins.
  10. What is the base-emitter saturation voltage (VBE(sat)) of this transistor?
    The base-emitter saturation voltage (VBE(sat)) is typically 0.7 V.

Product Attributes

Transistor Type:NPN
Current - Collector (Ic) (Max):100 mA
Voltage - Collector Emitter Breakdown (Max):65 V
Vce Saturation (Max) @ Ib, Ic:600mV @ 5mA, 100mA
Current - Collector Cutoff (Max):15nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce:200 @ 2mA, 5V
Power - Max:250 mW
Frequency - Transition:250MHz
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Package / Case:SC-70, SOT-323
Supplier Device Package:PG-SOT323
0 Remaining View Similar

In Stock

-
249

Please send RFQ , we will respond immediately.
