Overview

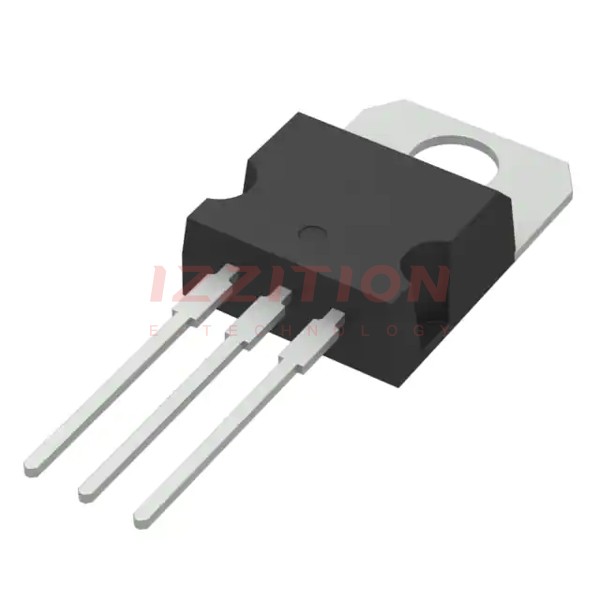

The STP75NF75 is an N-channel Power MOSFET developed by STMicroelectronics using their unique STripFET™ II process. This MOSFET is designed to minimize input capacitance and gate charge, making it highly suitable for advanced high-efficiency, high-frequency isolated DC-DC converters in Telecom and Computer applications. It is also ideal for any applications requiring low gate drive requirements.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Type of Transistor | MOSFET | |
| Type of Control Channel | N-Channel | |
| Maximum Drain-Source Voltage (VDS) | 75 | V |
| Maximum Gate-Source Voltage (VGS) | 20 | V |
| Maximum Drain Current (ID) | 80 | A |
| Maximum Drain-Source On-State Resistance (RDS(on)) | < 0.011 | Ω |
| Total Gate Charge (Qg) | 117 | nC |
| Rise Time (tr) | 100 | ns |
| Output Capacitance (Coss) | 730 | pF |
| Maximum Junction Temperature (Tj) | 175 | °C |
| Package | TO-220, TO-220FP, D²PAK |
Key Features
- Exceptional dv/dt capability
- 100% avalanche tested
- Low input capacitance and gate charge
- Suitable as primary switch in advanced high-efficiency, high-frequency isolated DC-DC converters
- Ideal for applications with low gate drive requirements
- Minimum lot-to-lot variations for robust device performance and reliable operation
Applications
- Switching applications
- Advanced high-efficiency, high-frequency isolated DC-DC converters for Telecom and Computer applications
- Any applications requiring low gate drive requirements
Q & A
- What is the maximum drain-source voltage of the STP75NF75 MOSFET?
The maximum drain-source voltage (VDS) is 75 V.
- What is the maximum drain current of the STP75NF75 MOSFET?
The maximum drain current (ID) is 80 A.
- What is the typical on-state resistance of the STP75NF75 MOSFET?
The typical on-state resistance (RDS(on)) is less than 0.011 Ω.
- What are the package options available for the STP75NF75 MOSFET?
The STP75NF75 is available in TO-220, TO-220FP, and D²PAK packages.
- What is the maximum junction temperature of the STP75NF75 MOSFET?
The maximum junction temperature (Tj) is 175 °C.
- What are the key features of the STP75NF75 MOSFET?
The key features include exceptional dv/dt capability, 100% avalanche testing, low input capacitance and gate charge, and suitability for high-efficiency DC-DC converters.
- What applications is the STP75NF75 MOSFET suitable for?
The STP75NF75 is suitable for switching applications, high-efficiency DC-DC converters in Telecom and Computer applications, and any applications with low gate drive requirements.
- What is the total gate charge of the STP75NF75 MOSFET?
The total gate charge (Qg) is 117 nC.
- What is the rise time of the STP75NF75 MOSFET?
The rise time (tr) is 100 ns.
