STL8P4LLF6
  • Share:

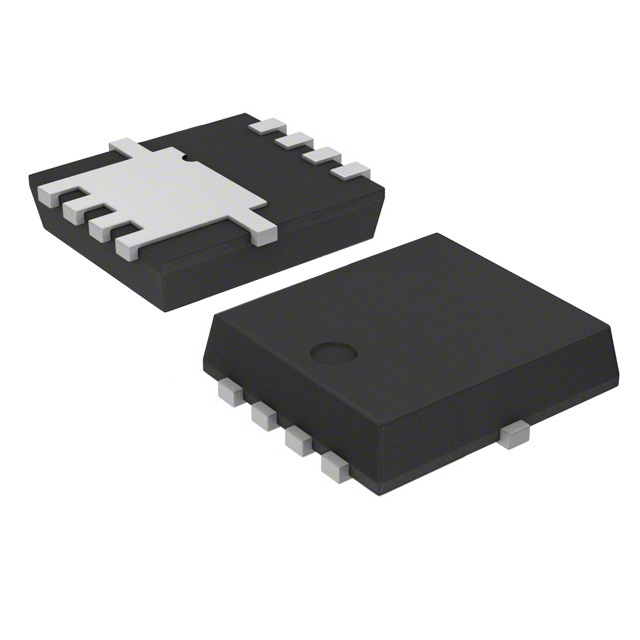

STMicroelectronics STL8P4LLF6

Manufacturer No:
STL8P4LLF6
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 40V POWERFLAT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STL8P4LLF6 is a P-channel Power MOSFET developed by STMicroelectronics using the advanced STripFET™ F6 technology. This device features a new trench gate structure, which significantly enhances its performance. It is packaged in a PowerFLAT™ 3.3 x 3.3 package, making it suitable for a variety of high-power applications. The MOSFET is known for its very low on-resistance, low gate charge, and high avalanche ruggedness, making it an ideal choice for switching applications.

Key Specifications

ParameterValueUnit
Drain-Source Voltage (VDS)40V
Gate-Source Voltage (VGS)±20V
Continuous Drain Current (ID) at Tpcb = 25 °C8A
Continuous Drain Current (ID) at Tpcb = 100 °C5A
Pulsed Drain Current (IDM)32A
Total Dissipation at Tpcb = 25 °C (PTOT)2.9W
Maximum Junction Temperature (Tj)150°C
Storage Temperature (Tstg)-55 to 150°C
Static Drain-Source On-Resistance (RDS(on)) at VGS = 10 V, ID = 4 A0.0175 - 0.0205Ω
Gate Threshold Voltage (VGS(th))1 - 2.5V

Key Features

  • Very low on-resistance (RDS(on) = 0.0175 Ω typ. at VGS = 10 V, ID = 4 A)
  • Very low gate charge
  • High avalanche ruggedness
  • Low gate drive power loss
  • New trench gate structure using STripFET™ F6 technology
  • PowerFLAT™ 3.3 x 3.3 package for efficient thermal management

Applications

The STL8P4LLF6 is primarily used in switching applications due to its low on-resistance, low gate charge, and high avalanche ruggedness. It is suitable for various high-power applications such as power supplies, motor control, and other power management systems.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the STL8P4LLF6?
    The maximum drain-source voltage (VDS) is 40 V.
  2. What is the typical on-resistance (RDS(on)) of the STL8P4LLF6?
    The typical on-resistance (RDS(on)) is 0.0175 Ω at VGS = 10 V, ID = 4 A.
  3. What is the maximum continuous drain current (ID) at Tpcb = 25 °C?
    The maximum continuous drain current (ID) at Tpcb = 25 °C is 8 A.
  4. What is the maximum junction temperature (Tj) of the STL8P4LLF6?
    The maximum junction temperature (Tj) is 150 °C.
  5. What package type is the STL8P4LLF6 available in?
    The STL8P4LLF6 is available in a PowerFLAT™ 3.3 x 3.3 package.
  6. What are the key features of the STL8P4LLF6?
    The key features include very low on-resistance, very low gate charge, high avalanche ruggedness, and low gate drive power loss.
  7. What technology is used in the STL8P4LLF6?
    The STL8P4LLF6 uses the STripFET™ F6 technology with a new trench gate structure.
  8. What are the typical applications of the STL8P4LLF6?
    The typical applications include switching applications, power supplies, motor control, and other power management systems.
  9. What is the storage temperature range for the STL8P4LLF6?
    The storage temperature range is -55 to 150 °C.
  10. What is the total dissipation at Tpcb = 25 °C (PTOT) for the STL8P4LLF6?
    The total dissipation at Tpcb = 25 °C (PTOT) is 2.9 W.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:8A (Tj)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:20.5mOhm @ 4A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:22 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2850 pF @ 25 V
FET Feature:-
Power Dissipation (Max):2.9W (Ta)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerFlat™ (3.3x3.3)
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

$1.36
29

Please send RFQ , we will respond immediately.
