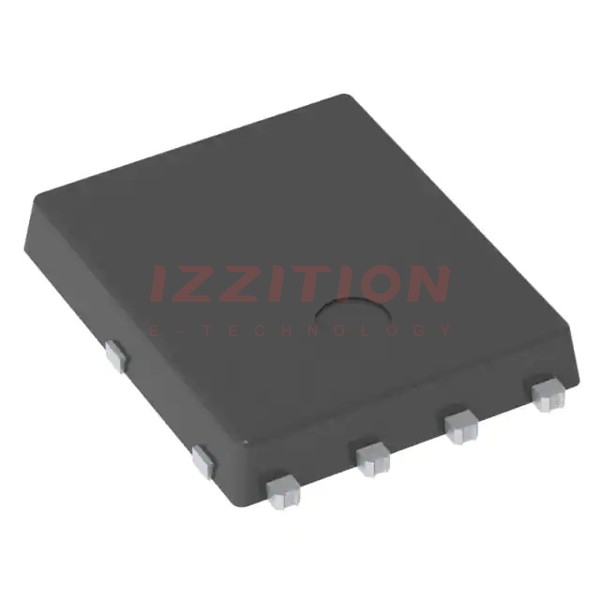

STMicroelectronics STL70N4LLF5

Manufacturer No:
STL70N4LLF5
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 40V 70A POWERFLAT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STL70N4LLF5 is an N-channel Power MOSFET developed by STMicroelectronics using the advanced STripFET™ F5 technology. This device is optimized to achieve very low on-state resistance, contributing to a high figure of merit (FoM). It is designed for high-performance applications, particularly in the automotive sector, where reliability and efficiency are crucial.

Key Specifications

Parameter Value Unit
VDS (Drain-Source Voltage) 40 V
RDS(on) (On-State Resistance) 6.1
ID (Drain Current) 18 A
VGS(th) (Gate-Source Threshold Voltage) 2-4 V
PD (Power Dissipation) - -
Package PowerFLAT 5x6 -

Key Features

  • Low on-state resistance (RDS(on)) of 6.1 mΩ, enhancing efficiency and reducing power losses.
  • High drain current (ID) of 18 A, suitable for high-power applications.
  • Automotive-grade, ensuring reliability and robustness in harsh environments.
  • STripFET™ F5 technology for improved performance and thermal management.
  • PowerFLAT 5x6 package, offering a compact and efficient design.

Applications

  • Automotive systems: power steering, power windows, and other high-power applications.
  • Industrial power supplies and motor control systems.
  • Renewable energy systems, such as solar and wind power inverters.
  • High-efficiency DC-DC converters and power management systems.

Q & A

  1. What is the drain-source voltage (VDS) of the STL70N4LLF5?

    The drain-source voltage (VDS) of the STL70N4LLF5 is 40 V.

  2. What is the on-state resistance (RDS(on)) of the STL70N4LLF5?

    The on-state resistance (RDS(on)) of the STL70N4LLF5 is 6.1 mΩ.

  3. What is the maximum drain current (ID) of the STL70N4LLF5?

    The maximum drain current (ID) of the STL70N4LLF5 is 18 A.

  4. What technology is used in the STL70N4LLF5?

    The STL70N4LLF5 uses STMicroelectronics' STripFET™ F5 technology.

  5. What is the package type of the STL70N4LLF5?

    The STL70N4LLF5 is packaged in a PowerFLAT 5x6 package.

  6. Is the STL70N4LLF5 suitable for automotive applications?

    Yes, the STL70N4LLF5 is automotive-grade and suitable for high-reliability automotive applications.

  7. What are some typical applications of the STL70N4LLF5?

    Typical applications include automotive systems, industrial power supplies, renewable energy systems, and high-efficiency DC-DC converters.

  8. How does the STL70N4LLF5 enhance efficiency in power systems?

    The STL70N4LLF5 enhances efficiency by having a very low on-state resistance, which reduces power losses and improves overall system performance.

  9. What is the significance of the STripFET™ F5 technology in the STL70N4LLF5?

    The STripFET™ F5 technology in the STL70N4LLF5 provides improved performance, lower on-state resistance, and better thermal management.

  10. Where can I purchase the STL70N4LLF5?

    The STL70N4LLF5 can be purchased directly from STMicroelectronics' official eStore or through authorized distributors.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:70A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:6.5mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:13 nC @ 4.5 V
Vgs (Max):±22V
Input Capacitance (Ciss) (Max) @ Vds:1800 pF @ 25 V
FET Feature:-
Power Dissipation (Max):72W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount, Wettable Flank
Supplier Device Package:PowerFlat™ (5x6)
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

$1.69
414

Please send RFQ , we will respond immediately.
