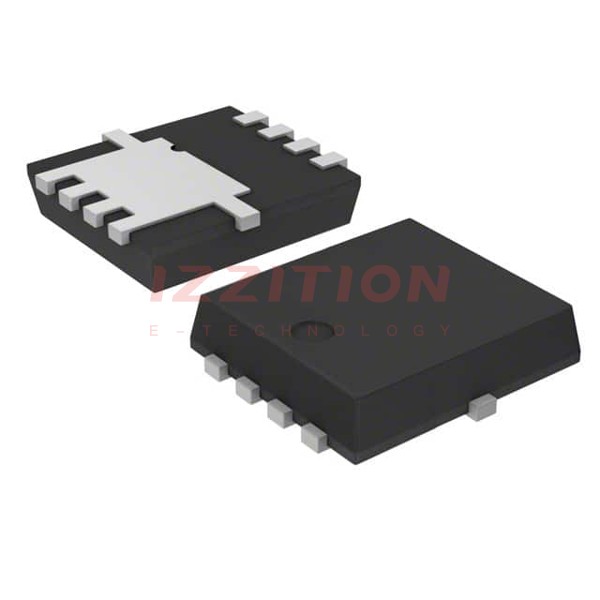

STMicroelectronics STL17N3LLH6

Manufacturer No:
STL17N3LLH6
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 30V 17A POWERFLAT
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STL17N3LLH6 is an N-channel Power MOSFET developed by STMicroelectronics using the 6th generation of STripFET™ DeepGATE™ technology. This device features a new gate structure that enhances its performance and efficiency. It is part of the PowerFLAT™ family, which is known for its compact and efficient design.

Key Specifications

ParameterValue
Continuous Drain Current (Id)17 A
Drain Source Voltage (Vds)30 V
On Resistance (Rds(on))0.0038 Ω
Number of Pins5
Moisture Sensitivity Level (MSL)MSL 1 - Unlimited

Key Features

  • Utilizes the 6th generation of STripFET™ DeepGATE™ technology with a new gate structure for improved performance.
  • Low on-resistance (Rds(on)) of 0.0038 Ω, enhancing efficiency and reducing power losses.
  • 100% avalanche tested and Zener-protected for robust reliability.
  • Compact PowerFLAT™ (3.3x3.3) package for space-saving designs.

Applications

The STL17N3LLH6 is ideal for various power management applications, including:

  • Flyback converters
  • LED lighting systems
  • Other high-efficiency power conversion circuits where low on-resistance and high reliability are crucial.

Q & A

  1. What is the continuous drain current of the STL17N3LLH6?
    The continuous drain current (Id) is 17 A.
  2. What is the drain-source voltage (Vds) of the STL17N3LLH6?
    The drain-source voltage (Vds) is 30 V.
  3. What is the on-resistance (Rds(on)) of the STL17N3LLH6?
    The on-resistance (Rds(on)) is 0.0038 Ω.
  4. How many pins does the STL17N3LLH6 have?
    The STL17N3LLH6 has 5 pins.
  5. What is the moisture sensitivity level (MSL) of the STL17N3LLH6?
    The moisture sensitivity level (MSL) is MSL 1 - Unlimited.
  6. What technology is used in the STL17N3LLH6?
    The STL17N3LLH6 uses the 6th generation of STripFET™ DeepGATE™ technology.
  7. What package type is the STL17N3LLH6 available in?
    The STL17N3LLH6 is available in the PowerFLAT™ (3.3x3.3) package.
  8. Is the STL17N3LLH6 suitable for flyback converters?
    Yes, the STL17N3LLH6 is suitable for flyback converters and other high-efficiency power conversion circuits.
  9. Is the STL17N3LLH6 Zener-protected?
    Yes, the STL17N3LLH6 is 100% avalanche tested and Zener-protected.
  10. What are some common applications of the STL17N3LLH6?
    The STL17N3LLH6 is commonly used in LED lighting systems and other high-efficiency power conversion circuits.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):30 V
Current - Continuous Drain (Id) @ 25°C:17A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:4.5mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id:1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:17 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:1690 pF @ 25 V
FET Feature:-
Power Dissipation (Max):2W (Ta), 50W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:PowerFlat™ (3.3x3.3)
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

-
109

Please send RFQ , we will respond immediately.

Similar Products

Part Number STL17N3LLH6 STL11N3LLH6
Manufacturer STMicroelectronics STMicroelectronics
Product Status Obsolete Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 30 V 30 V
Current - Continuous Drain (Id) @ 25°C 17A (Tc) 11A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 4.5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 4.5mOhm @ 8.5A, 10V 7.5mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id 1V @ 250µA 1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs 17 nC @ 4.5 V 17 nC @ 4.5 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 1690 pF @ 25 V 1690 pF @ 24 V
FET Feature - -
Power Dissipation (Max) 2W (Ta), 50W (Tc) 2W (Ta), 50W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package PowerFlat™ (3.3x3.3) PowerFlat™ (3.3x3.3)
