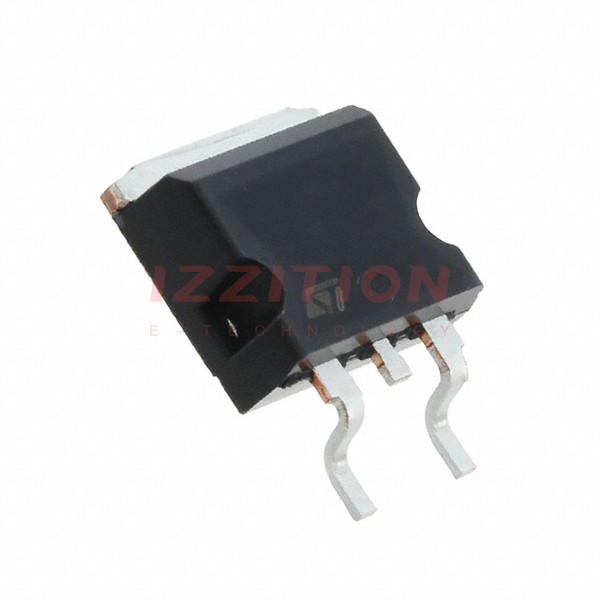

STMicroelectronics STB8N90K5

Manufacturer No:
STB8N90K5
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 900V 8A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STB8N90K5 is a very high voltage N-channel Power MOSFET designed by STMicroelectronics using their innovative MDmesh™ K5 technology. This technology is based on a proprietary vertical structure, resulting in a significant reduction in on-resistance and ultra-low gate charge. These characteristics make the STB8N90K5 ideal for applications requiring superior power density and high efficiency.

Key Specifications

ParameterValue
Part NumberSTB8N90K5
Marketing StatusActive
PackageD2PAK
GradeIndustrial
RoHS Compliance GradeEcopack2
Drain-Source Voltage (Vds)900 V
Drain Current (Id)8 A
On-Resistance (Rds(on))0.60 Ohm (typ.)
Gate Charge (Qg)Ultra-low
Operating Temperature (°C)-55 to 150
Avalanche Tested100%
Zener ProtectionYes

Key Features

  • Industry’s lowest RDS(on)x area
  • Industry’s best FoM (figure of merit)
  • Ultra-low gate charge
  • 100% avalanche tested
  • Zener-protected
  • Low on-resistance and high efficiency

Applications

The STB8N90K5 is suitable for a variety of high-power applications, including but not limited to:

  • Power supplies and converters
  • Motor control and drives
  • Industrial automation
  • Renewable energy systems
  • High-voltage DC-DC converters

Q & A

  1. What is the STB8N90K5? The STB8N90K5 is a very high voltage N-channel Power MOSFET designed by STMicroelectronics.
  2. What technology is used in the STB8N90K5? It uses STMicroelectronics' MDmesh™ K5 technology.
  3. What are the key benefits of the STB8N90K5? It offers low on-resistance, ultra-low gate charge, and high efficiency.
  4. What is the drain-source voltage (Vds) of the STB8N90K5? The drain-source voltage is 900 V.
  5. What is the typical on-resistance (Rds(on)) of the STB8N90K5? The typical on-resistance is 0.60 Ohm.
  6. Is the STB8N90K5 avalanche tested? Yes, it is 100% avalanche tested.
  7. What package type is the STB8N90K5 available in? It is available in a D2PAK package.
  8. What are the operating temperature ranges for the STB8N90K5? The operating temperature range is from -55°C to 150°C.
  9. Is the STB8N90K5 Zener-protected? Yes, it is Zener-protected.
  10. What are some common applications for the STB8N90K5? Common applications include power supplies, motor control, industrial automation, and renewable energy systems.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):900 V
Current - Continuous Drain (Id) @ 25°C:8A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:800mOhm @ 1.17A, 10V
Vgs(th) (Max) @ Id:5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:-
FET Feature:-
Power Dissipation (Max):130W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
