STB45N30M5
  • Share:

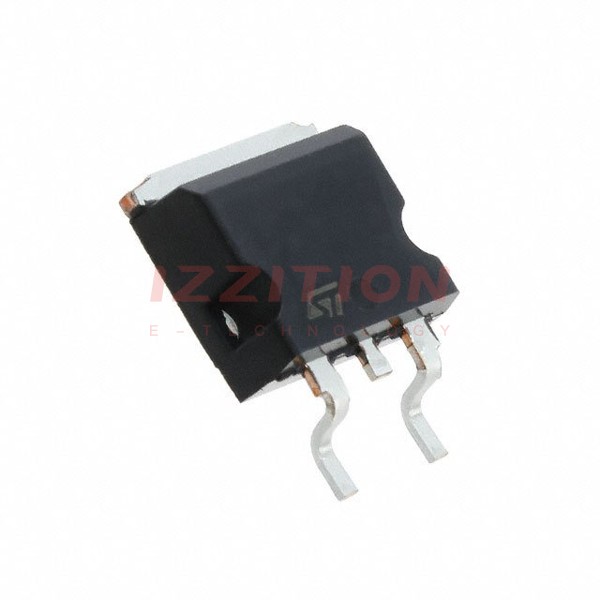

STMicroelectronics STB45N30M5

Manufacturer No:
STB45N30M5
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
NCHANNEL 300 V 0.037 OHM TYP. 53
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STB45N30M5 is an N-channel Power MOSFET developed by STMicroelectronics, utilizing the innovative MDmesh™ M5 vertical process technology combined with the well-known PowerMESH™ horizontal layout. This device is designed to offer high performance and reliability in various power management applications.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)300 V
ID (Drain Current)53 A
RDS(on) (On-State Resistance)0.037 Ω (typical)
PD (Power Dissipation)250 W (at Tc)
PackageTO-263 (D2PAK), Surface Mount
Pins3

Key Features

  • High current capability up to 53 A.
  • Low on-state resistance (RDS(on)) of 0.037 Ω.
  • High voltage rating of 300 V.
  • High power dissipation of 250 W at Tc.
  • MDmesh™ M5 technology for improved performance and reliability.
  • PowerMESH™ horizontal layout for enhanced current handling.

Applications

  • Power supplies and DC-DC converters.
  • Motor control and drives.
  • Industrial and consumer electronics.
  • Automotive systems.
  • High-power switching applications.

Q & A

  1. What is the maximum drain-source voltage of the STB45N30M5?
    The maximum drain-source voltage (VDS) is 300 V.
  2. What is the typical on-state resistance of the STB45N30M5?
    The typical on-state resistance (RDS(on)) is 0.037 Ω.
  3. What is the maximum drain current of the STB45N30M5?
    The maximum drain current (ID) is 53 A.
  4. What package type is the STB45N30M5 available in?
    The STB45N30M5 is available in the TO-263 (D2PAK) surface mount package.
  5. What is the power dissipation capability of the STB45N30M5?
    The power dissipation capability is 250 W at Tc.
  6. What technology is used in the STB45N30M5?
    The STB45N30M5 uses the MDmesh™ M5 vertical process technology combined with the PowerMESH™ horizontal layout.
  7. What are some common applications of the STB45N30M5?
    Common applications include power supplies, DC-DC converters, motor control, industrial and consumer electronics, and automotive systems.
  8. How many pins does the STB45N30M5 have?
    The STB45N30M5 has 3 pins.
  9. What is the significance of the MDmesh™ M5 technology?
    The MDmesh™ M5 technology enhances performance and reliability by improving current handling and reducing on-state resistance.
  10. Where can I find detailed specifications for the STB45N30M5?
    Detailed specifications can be found in the datasheet available on STMicroelectronics' official website and other authorized distributors like Digi-Key and element14.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):300 V
Current - Continuous Drain (Id) @ 25°C:53A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:40mOhm @ 26.5A, 10V
Vgs(th) (Max) @ Id:5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:95 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:4240 pF @ 100 V
FET Feature:-
Power Dissipation (Max):250W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D²PAK (TO-263)
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$7.12
28

Please send RFQ , we will respond immediately.
