STB46N30M5
  • Share:

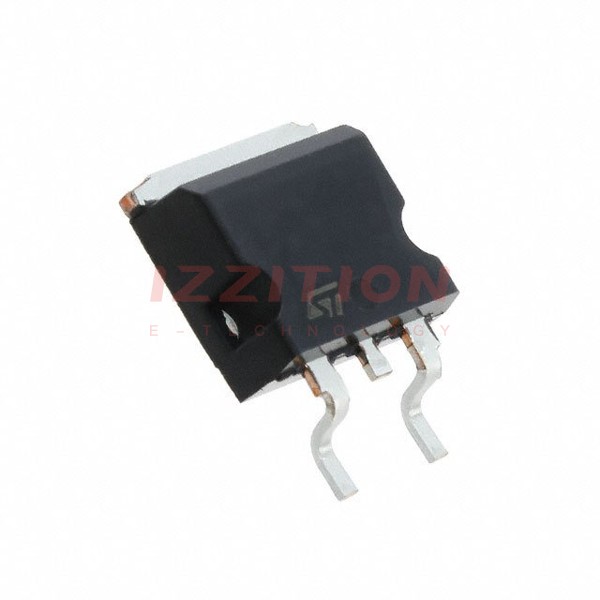

STMicroelectronics STB46N30M5

Manufacturer No:
STB46N30M5
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 300V 53A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STB46N30M5 is an automotive-grade N-channel Power MOSFET manufactured by STMicroelectronics. It is based on the innovative MDmesh™ V Power MOSFET technology, combined with STMicroelectronics’ well-known PowerMESH™ horizontal layout structure. This device is particularly suited for applications requiring superior power density and outstanding efficiency due to its extremely low on-resistance.

The STB46N30M5 is AEC-Q101 qualified, making it highly reliable for use in automotive and other demanding environments. It is packaged in a D2PAK package, which is convenient for high-power applications.

Key Specifications

Parameter Value Unit
Order Code STB46N30M5
Channel Type N-Channel
Drain-Source Voltage (Vds) 300 V
Gate-Source Voltage (Vgs) ±25 V
Drain Current (Id) 53 A (continuous at TC = 25 °C) A
Drain Current (Id) at TC = 100 °C 34 A A
Pulsed Drain Current (Idm) 212 A A
Static Drain-Source On-State Resistance (Rds(on)) 0.037 Ω (typ.), 0.04 Ω (max.) Ω
Maximum Junction Temperature (Tj) 150 °C
Thermal Resistance Junction-Case (Rthj-case) 0.5 °C/W
Thermal Resistance Junction-PCB (Rthj-pcb) 30 °C/W
Package D2PAK

Key Features

  • Designed for automotive applications and AEC-Q101 qualified.
  • Amongst the best Rds(on) * area, providing extremely low on-resistance.
  • High dv/dt capability, ensuring excellent switching performance.
  • Easy to drive due to its low gate charge.
  • 100% avalanche tested for reliability.
  • Excellent switching performance and high power density.

Applications

The STB46N30M5 is primarily used in switching applications where high power density and efficiency are crucial. These applications include:

  • Automotive systems, such as power steering, fuel injection, and anti-lock braking systems (ABS).
  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • High-frequency switching circuits.

Q & A

  1. What is the maximum drain-source voltage of the STB46N30M5?

    The maximum drain-source voltage (Vds) is 300 V.

  2. What is the maximum continuous drain current at 25 °C for the STB46N30M5?

    The maximum continuous drain current (Id) at 25 °C is 53 A.

  3. What is the typical on-state resistance (Rds(on)) of the STB46N30M5?

    The typical on-state resistance (Rds(on)) is 0.037 Ω.

  4. What is the maximum junction temperature for the STB46N30M5?

    The maximum junction temperature (Tj) is 150 °C.

  5. Is the STB46N30M5 AEC-Q101 qualified?
  6. What package type is the STB46N30M5 available in?

    The STB46N30M5 is available in a D2PAK package.

  7. What are the key features of the STB46N30M5?

    The key features include low on-resistance, high dv/dt capability, excellent switching performance, ease of driving, and 100% avalanche testing.

  8. What are the typical applications of the STB46N30M5?

    The typical applications include automotive systems, power supplies, motor control, and high-frequency switching circuits.

  9. What is the thermal resistance junction-case (Rthj-case) of the STB46N30M5?

    The thermal resistance junction-case (Rthj-case) is 0.5 °C/W.

  10. What is the maximum pulse drain current (Idm) of the STB46N30M5?

    The maximum pulse drain current (Idm) is 212 A.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):300 V
Current - Continuous Drain (Id) @ 25°C:53A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:40mOhm @ 26.5A, 10V
Vgs(th) (Max) @ Id:5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:95 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:4240 pF @ 100 V
FET Feature:-
Power Dissipation (Max):250W (Tc)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D²PAK (TO-263)
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$9.76
92

Please send RFQ , we will respond immediately.

Similar Products

Part Number STB46N30M5 STB45N30M5
Manufacturer STMicroelectronics STMicroelectronics
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 300 V 300 V
Current - Continuous Drain (Id) @ 25°C 53A (Tc) 53A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V
Rds On (Max) @ Id, Vgs 40mOhm @ 26.5A, 10V 40mOhm @ 26.5A, 10V
Vgs(th) (Max) @ Id 5V @ 250µA 5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 95 nC @ 10 V 95 nC @ 10 V
Vgs (Max) ±25V ±25V
Input Capacitance (Ciss) (Max) @ Vds 4240 pF @ 100 V 4240 pF @ 100 V
FET Feature - -
Power Dissipation (Max) 250W (Tc) 250W (Tc)
Operating Temperature 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package D²PAK (TO-263) D²PAK (TO-263)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
