STB30N80K5
  • Share:

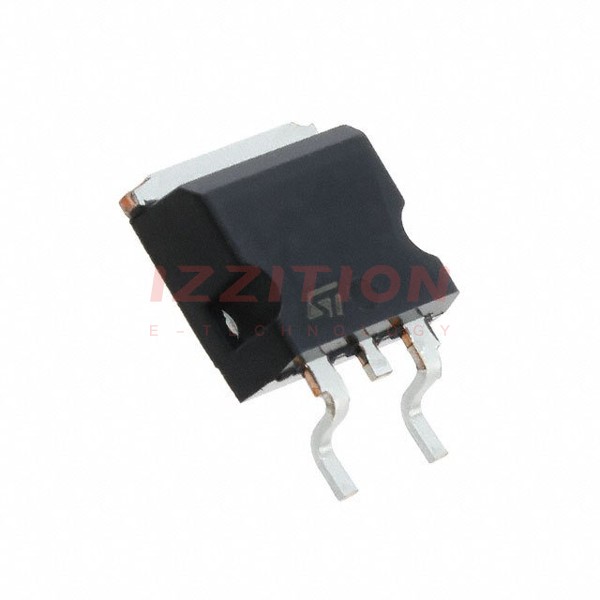

STMicroelectronics STB30N80K5

Manufacturer No:
STB30N80K5
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET N-CHANNEL 800V 24A D2PAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STB30N80K5 is a high-voltage N-channel Power MOSFET designed by STMicroelectronics using the innovative MDmesh™ K5 technology. This device is characterized by its proprietary vertical structure, which significantly reduces on-resistance and gate charge, making it ideal for applications requiring high power density and efficiency. The STB30N80K5 is packaged in a D²PAK (TO-263) package, which is suitable for a variety of high-power switching applications.

Key Specifications

Parameter Value Unit
Drain-Source Voltage (VDS) 800 V
Gate-Source Voltage (VGS) ±30 V
Continuous Drain Current (ID) at TC = 25 °C 24 A
Continuous Drain Current (ID) at TC = 100 °C 15 A
Pulsed Drain Current (IDM) 96 A
Total Dissipation at TC = 25 °C (PTOT) 250 W
Static Drain-Source On-Resistance (RDS(on)) at VGS = 10 V, ID = 12 A 0.15 (typ.), 0.18 (max.) Ω
Thermal Resistance Junction-Case (Rthj-case) 0.5 °C/W
Thermal Resistance Junction-Ambient (Rthj-amb) 50 °C/W

Key Features

  • Industry’s lowest RDS(on) x area, ensuring high power density and efficiency.
  • Industry’s best Figure of Merit (FoM), enhancing overall performance.
  • Ultra-low gate charge, reducing switching losses and improving high-frequency operation.
  • 100% avalanche tested, ensuring robustness and reliability under various operating conditions.
  • Zener-protected, providing additional protection against voltage spikes.

Applications

  • Switching applications, including power supplies, motor control, and high-frequency inverters.
  • High-power electronic devices requiring efficient and reliable power management.
  • Industrial and automotive systems where high voltage and current handling are necessary.

Q & A

  1. What is the maximum drain-source voltage of the STB30N80K5?

    The maximum drain-source voltage (VDS) is 800 V.

  2. What is the typical on-resistance of the STB30N80K5?

    The typical static drain-source on-resistance (RDS(on)) is 0.15 Ω at VGS = 10 V and ID = 12 A.

  3. What is the maximum continuous drain current at 25 °C?

    The maximum continuous drain current (ID) at 25 °C is 24 A.

  4. What is the thermal resistance junction-case of the STB30N80K5?

    The thermal resistance junction-case (Rthj-case) is 0.5 °C/W.

  5. Is the STB30N80K5 100% avalanche tested?
  6. What package type is the STB30N80K5 available in?

    The STB30N80K5 is available in a D²PAK (TO-263) package.

  7. What are the key features of the MDmesh™ K5 technology used in the STB30N80K5?

    The MDmesh™ K5 technology offers the industry’s lowest RDS(on) x area, ultra-low gate charge, and the best Figure of Merit (FoM).

  8. What are some common applications for the STB30N80K5?
  9. What is the maximum storage temperature range for the STB30N80K5?

    The storage temperature range is -55 to 150 °C.

  10. Is the STB30N80K5 Zener-protected?

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):800 V
Current - Continuous Drain (Id) @ 25°C:24A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:180mOhm @ 12A, 10V
Vgs(th) (Max) @ Id:5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:43 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:1530 pF @ 100 V
FET Feature:-
Power Dissipation (Max):250W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D²PAK (TO-263)
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

$8.23
111

Please send RFQ , we will respond immediately.
