Overview
The PCP1403-TD-H is a high-performance N-Channel Power MOSFET manufactured by onsemi. This device is categorized under the Transistors - FETs, MOSFETs - Single category. It is designed to offer high power handling capability, low on-resistance, and compact surface mount packaging, making it suitable for a variety of high-frequency switching applications.
Key Specifications
| Parameter | Value |
|---|---|
| Drain to Source Voltage (Vdss) | 60 V |
| Gate to Source Voltage (Vgs) | ±20 V |
| On-Resistance (Rds On) @ Id, Vgs | 117 mOhm @ 2 A, 10 V |
| Continuous Drain Current (Id) @ 25°C | 4.5 A |
| Input Capacitance (Ciss) @ Vds | 310 pF @ 20 V |
| Power Dissipation (Max) | 3.5 W |
| Gate Threshold Voltage (Vgs(th)) @ Id | 2.6 V @ 1 mA |
| Gate Charge (Qg) @ Vgs | 6.7 nC @ 10 V |
| Operating Temperature | Up to 150°C (TJ) |

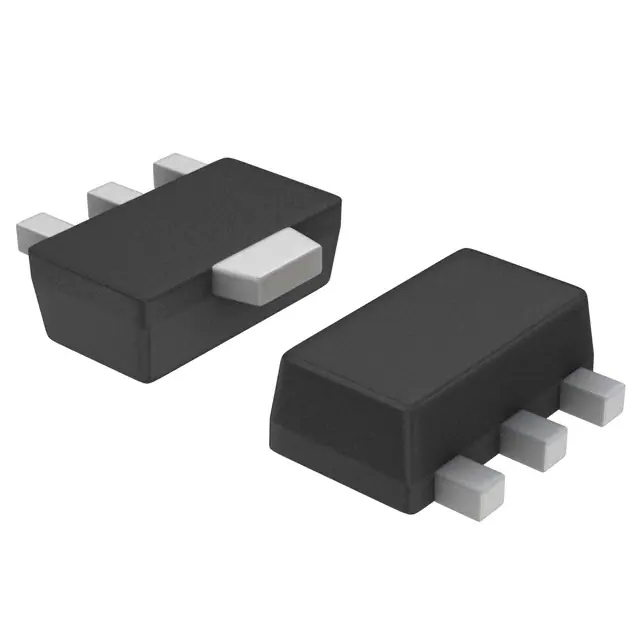

| Package Type | SOT-89/PCP-1 |
Key Features
- High power handling capability
- Low on-resistance for improved energy efficiency
- Compact surface mount package (SOT-89/PCP-1)
- Suitable for high-frequency switching applications
- Reliable performance in high-temperature environments up to 150°C
- RoHS3 compliant
- Suitable for automated assembly
Applications
- Switching power supplies
- Motor drives
- Lighting control
- Industrial automation
- Consumer electronics
Q & A
- What is the drain to source voltage of the PCP1403-TD-H?
The drain to source voltage (Vdss) of the PCP1403-TD-H is 60 V.
- What is the maximum gate to source voltage for the PCP1403-TD-H?
The maximum gate to source voltage (Vgs) for the PCP1403-TD-H is ±20 V.
- What is the on-resistance of the PCP1403-TD-H?
The on-resistance (Rds On) of the PCP1403-TD-H is 117 mOhm at 2 A and 10 V.
- What is the continuous drain current of the PCP1403-TD-H at 25°C?
The continuous drain current (Id) of the PCP1403-TD-H at 25°C is 4.5 A.
- What is the input capacitance of the PCP1403-TD-H?
The input capacitance (Ciss) of the PCP1403-TD-H is 310 pF at 20 V.
- What is the maximum power dissipation of the PCP1403-TD-H?
The maximum power dissipation of the PCP1403-TD-H is 3.5 W.
- What is the gate threshold voltage of the PCP1403-TD-H?
The gate threshold voltage (Vgs(th)) of the PCP1403-TD-H is 2.6 V at 1 mA.
- What is the gate charge of the PCP1403-TD-H?
The gate charge (Qg) of the PCP1403-TD-H is 6.7 nC at 10 V.
- Is the PCP1403-TD-H RoHS compliant?
Yes, the PCP1403-TD-H is RoHS3 compliant.
- What are the typical application areas for the PCP1403-TD-H?
The PCP1403-TD-H is typically used in switching power supplies, motor drives, lighting control, industrial automation, and consumer electronics.
