Overview

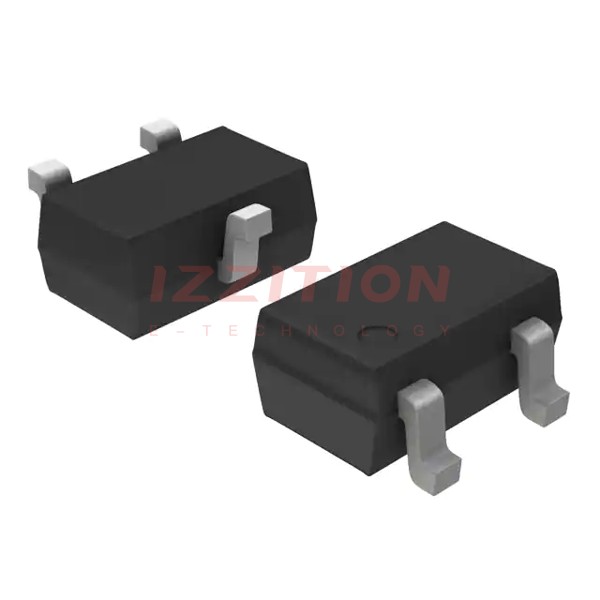

The NVS4409NT1G is a single N-channel MOSFET produced by onsemi, designed for small signal applications. It features advanced planar technology, which enables fast switching and low RDS(on), contributing to higher efficiency and extended battery life. This device is AEC-Q101 qualified and PPAP capable, ensuring reliability in automotive and other demanding environments. It is also Pb-free and RoHS compliant, aligning with environmental regulations.
Key Specifications
| Rating | Symbol | Value | Unit |
|---|---|---|---|
| Drain-to-Source Voltage | VDSS | 25 | V |
| Gate-to-Source Voltage | VGS | −8.0 | V |
| Drain Current (t < 5 s, TA = 25°C) | ID | 0.75 | A |
| Continuous Drain Current (Steady State, TA = 25°C) | ID | 0.7 | A |
| Continuous Drain Current (Steady State, TA = 75°C) | ID | 0.6 | A |
| Power Dissipation (Steady State) | PD | 0.28 | W |
| Pulsed Drain Current (tp = 10 µs) | IDM | 3.0 | A |
| Operating Junction and Storage Temperature | TJ, TSTG | −55 to +150 | °C |
| Source Current (Body Diode) | IS | 0.3 | A |
| Lead Temperature for Soldering Purposes | TL | 260 | °C |
| ESD Rating — Machine Model | 25 | V | |
| Drain-to-Source On Resistance (VGS = 4.5 V, ID = 0.6 A) | RDS(on) | 249 mΩ | mΩ |
Key Features
- Advanced planar technology for fast switching and low RDS(on)
- Higher efficiency, extending battery life
- AEC-Q101 qualified and PPAP capable
- Pb-free and RoHS compliant
- Low on-resistance: 249 mΩ at VGS = 4.5 V, ID = 0.6 A
- High ESD rating: 25 V (Machine Model)
- Wide operating junction temperature range: −55 to +150 °C
Applications
- Boost and buck converters
- Load switches
- Battery protection circuits
Q & A
- What is the maximum drain-to-source voltage of the NVS4409NT1G?
The maximum drain-to-source voltage (VDSS) is 25 V.
- What is the continuous drain current at 25°C and 75°C?
The continuous drain current is 0.7 A at 25°C and 0.6 A at 75°C.
- Is the NVS4409NT1G AEC-Q101 qualified?
Yes, the NVS4409NT1G is AEC-Q101 qualified and PPAP capable.
- What is the typical on-resistance of the NVS4409NT1G?
The typical on-resistance (RDS(on)) is 249 mΩ at VGS = 4.5 V, ID = 0.6 A.
- What are the common applications of the NVS4409NT1G?
Common applications include boost and buck converters, load switches, and battery protection circuits.
- Is the NVS4409NT1G Pb-free and RoHS compliant?
Yes, the NVS4409NT1G is Pb-free and RoHS compliant.
- What is the ESD rating of the NVS4409NT1G?
The ESD rating is 25 V (Machine Model).
- What is the operating junction temperature range of the NVS4409NT1G?
The operating junction temperature range is −55 to +150 °C.
- What is the package type of the NVS4409NT1G?
The package type is SC-70/SOT-323.
- How many devices are shipped per reel?
3000 devices are shipped per reel.
