Overview

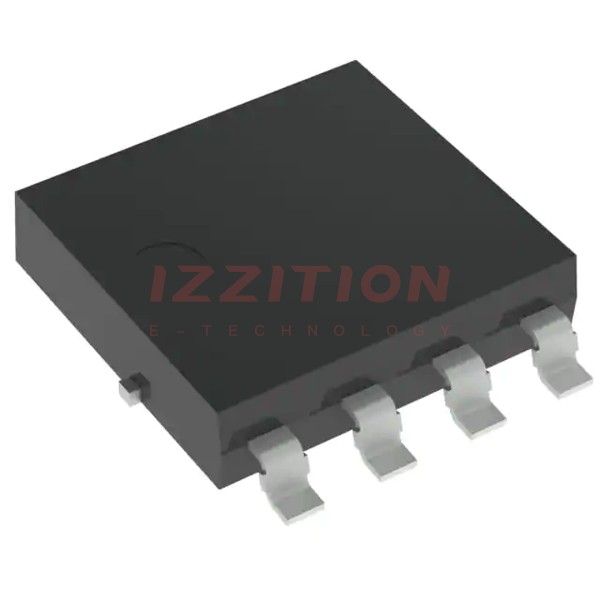

The NVMJS2D5N06CLTWG is an automotive-grade N-Channel power MOSFET produced by onsemi. This component is designed for compact and efficient designs, particularly in automotive applications. It features a small footprint in a 5x6mm LFPAK package, which enhances thermal performance and minimizes space usage. The MOSFET is known for its high current handling and low on-resistance, making it suitable for a variety of power management and switching applications.
Key Specifications
| Parameter | Value |
|---|---|
| VDS (Drain-Source Voltage) | 60 V |
| ID (Continuous Drain Current at Ta) | 31 A |
| ID (Continuous Drain Current at Tc) | 164 A |
| RDS(on) (On-Resistance) | 0.002 ohm |
| PD (Power Dissipation at Ta) | 3.9 W |
| PD (Power Dissipation at Tc) | 113 W |
| Operating Temperature Range | -55°C to +175°C |
| Package Type | LFPAK (5x6 mm) |
| Mounting Type | Surface Mount |
Key Features
- Compact Design: Small footprint in a 5x6mm LFPAK package, ideal for space-constrained applications.
- Low RDS(on): Minimizes conduction losses, enhancing overall efficiency.
- Low QG and Capacitance: Reduces driver losses, improving switching performance.
- Automotive Grade: Designed to meet the stringent requirements of automotive applications.
- Pb-free and RoHS-compliant: Environmentally friendly and compliant with regulatory standards.
- Wide Operating Temperature Range: Operates from -55°C to +175°C, ensuring reliability in diverse environments.
Applications
- Automotive Systems: Suitable for various automotive power management and switching applications, including electric vehicles, hybrid vehicles, and conventional vehicles.
- Power Management: Ideal for DC-DC converters, motor control, and other power management systems where high efficiency and reliability are crucial.
- Industrial Power Systems: Can be used in industrial power systems that require high current handling and low on-resistance.
Q & A
- What is the drain-source voltage (VDS) of the NVMJS2D5N06CLTWG?
The drain-source voltage (VDS) of the NVMJS2D5N06CLTWG is 60 V.
- What is the continuous drain current at Ta for this MOSFET?
The continuous drain current at Ta is 31 A.
- What is the on-resistance (RDS(on)) of this MOSFET?
The on-resistance (RDS(on)) is 0.002 ohm.
- What is the operating temperature range of the NVMJS2D5N06CLTWG?
The operating temperature range is from -55°C to +175°C.
- Is the NVMJS2D5N06CLTWG Pb-free and RoHS-compliant?
- What package type does the NVMJS2D5N06CLTWG come in?
The NVMJS2D5N06CLTWG comes in a 5x6mm LFPAK package.
- What are some typical applications for the NVMJS2D5N06CLTWG?
Typical applications include automotive systems, power management systems, and industrial power systems.
- What is the power dissipation at Ta and Tc for this MOSFET?
The power dissipation at Ta is 3.9 W and at Tc is 113 W.
- How does the low RDS(on) benefit the performance of the NVMJS2D5N06CLTWG?
The low RDS(on) minimizes conduction losses, enhancing overall efficiency and performance.
- What are the benefits of the low QG and capacitance in this MOSFET?
The low QG and capacitance reduce driver losses, improving switching performance and efficiency.
