NVD5863NLT4G-VF01
  • Share:

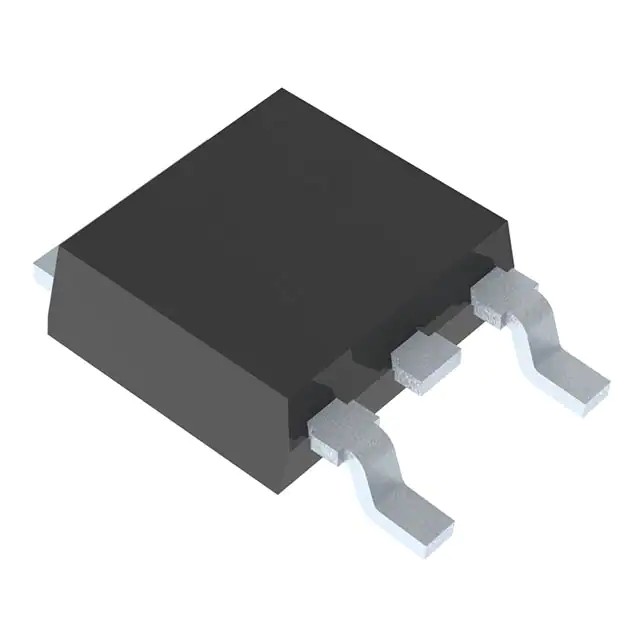

onsemi NVD5863NLT4G-VF01

Manufacturer No:
NVD5863NLT4G-VF01
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 14.9A/82A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVD5863NLT4G-VF01 is a discrete semiconductor product manufactured by onsemi, a leading company in innovative power and sensing technologies. This component is part of onsemi's extensive portfolio aimed at addressing complex challenges in various industries, including automotive, industrial, and sustainable energy. However, it is important to note that the NVD5863NLT4G-VF01 has been discontinued by onsemi as of the last time buy date in June 2022 and the last ship date in December 2022.

Key Specifications

SpecificationValue
Product TypeSingle FETs, MOSFETs
Package/CaseDPAK-3
RoHS StatusCompliant
StatusObsolete/Discontinued
Last Time Buy Date20 June 2022
Last Ship Date20 December 2022

Key Features

  • Single FET, MOSFET configuration, suitable for various power management applications.
  • DPAK-3 package, which is a surface-mount package designed for high-power applications.
  • RoHS compliant, ensuring environmental sustainability.
  • Part of onsemi's portfolio focused on innovative power and sensing technologies.

Applications

The NVD5863NLT4G-VF01, although discontinued, was typically used in applications requiring high-power handling and efficient power management. These include:

  • Automotive systems: For power management in vehicle systems.
  • Industrial automation: For controlling and managing power in industrial equipment.
  • Sustainable energy systems: For efficient power handling in renewable energy applications.

Q & A

  1. What is the NVD5863NLT4G-VF01?
    The NVD5863NLT4G-VF01 is a single FET, MOSFET semiconductor product manufactured by onsemi.
  2. What package type does the NVD5863NLT4G-VF01 use?
    The component uses a DPAK-3 surface-mount package.
  3. Is the NVD5863NLT4G-VF01 RoHS compliant?
    Yes, the NVD5863NLT4G-VF01 is RoHS compliant.
  4. What is the status of the NVD5863NLT4G-VF01?
    The NVD5863NLT4G-VF01 has been discontinued by onsemi.
  5. What was the last time buy date for the NVD5863NLT4G-VF01?
    The last time buy date was 20 June 2022.
  6. What was the last ship date for the NVD5863NLT4G-VF01?
    The last ship date was 20 December 2022.
  7. Where can I find replacement parts for the NVD5863NLT4G-VF01?
    onsemi has suggested replacement parts such as the NVD5C648NLT4G. Additionally, partners like Rochester Electronics and Flip Electronics may carry remaining inventory.
  8. What are the typical applications for the NVD5863NLT4G-VF01?
    The component was used in automotive, industrial automation, and sustainable energy systems.
  9. How can I contact onsemi for more information on the discontinuance of the NVD5863NLT4G-VF01?
    You can contact onsemi through their sales office or via email at [email protected].
  10. Are there any minimum order quantities or special terms for purchasing the NVD5863NLT4G-VF01 after discontinuance?
    Yes, onsemi may implement minimum order quantities or dollar amounts based on available inventories, and orders become Non-Cancelable, Non-Returnable (NCNR).

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:14.9A (Ta), 82A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:7.1mOhm @ 41A, 10V
Vgs(th) (Max) @ Id:3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:70 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3850 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.1W (Ta), 96W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK-3
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
0 Remaining View Similar

In Stock

-
150

Please send RFQ , we will respond immediately.
