NVD5490NLT4G-VF01
  • Share:

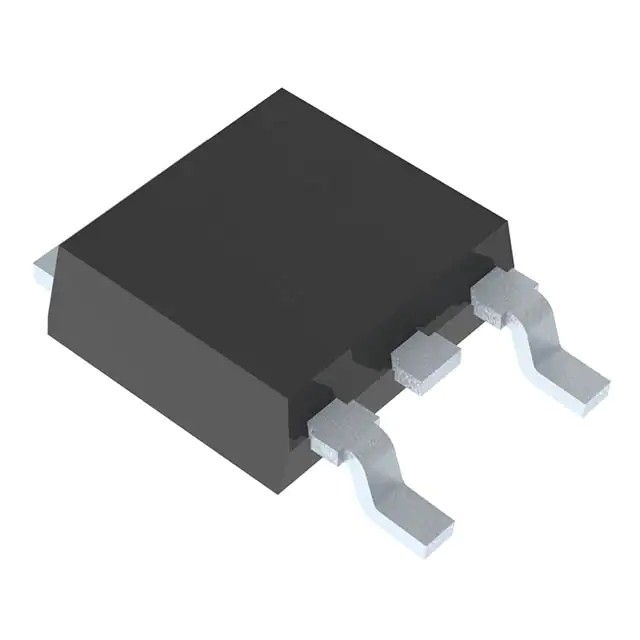

onsemi NVD5490NLT4G-VF01

Manufacturer No:
NVD5490NLT4G-VF01
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 5A/17A DPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVD5490NLT4G-VF01 is a high-performance, single N-channel power MOSFET produced by onsemi. This device is designed to offer superior efficiency and reliability in a variety of power management applications. It features a low on-resistance and high current handling capability, making it suitable for demanding environments.

Key Specifications

ParameterSymbolValueUnit
Voltage Rating (Drain-Source)VDS60V
On-Resistance (Typical)RDS(ON)64 mΩmΩ
Continuous Drain CurrentID17 AA
Junction-to-Case Thermal ResistanceRθJC3.1°C/W
Package TypeDPAK (Pb-Free)

Key Features

  • Low on-resistance (RDS(ON)) of 64 mΩ for high efficiency.
  • High continuous drain current (ID) of 17 A.
  • High voltage rating (VDS) of 60 V.
  • Lead-free DPAK package for environmental compliance.
  • Low thermal resistance for better heat dissipation.

Applications

The NVD5490NLT4G-VF01 is suitable for a wide range of power management applications, including but not limited to:

  • DC-DC converters and power supplies.
  • Motor control and drive systems.
  • Power amplifiers and audio systems.
  • Automotive and industrial power systems.

Q & A

  1. What is the voltage rating of the NVD5490NLT4G-VF01?
    The voltage rating (VDS) is 60 V.
  2. What is the typical on-resistance of the NVD5490NLT4G-VF01?
    The typical on-resistance (RDS(ON)) is 64 mΩ.
  3. What is the continuous drain current of the NVD5490NLT4G-VF01?
    The continuous drain current (ID) is 17 A.
  4. What package type is the NVD5490NLT4G-VF01 available in?
    The device is available in a lead-free DPAK package.
  5. What is the junction-to-case thermal resistance of the NVD5490NLT4G-VF01?
    The junction-to-case thermal resistance (RθJC) is 3.1 °C/W.
  6. What are some common applications for the NVD5490NLT4G-VF01?
    Common applications include DC-DC converters, motor control systems, power amplifiers, and automotive/industrial power systems.
  7. Is the NVD5490NLT4G-VF01 lead-free?
    Yes, the NVD5490NLT4G-VF01 is lead-free and complies with environmental regulations.
  8. Where can I find detailed specifications for the NVD5490NLT4G-VF01?
    Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and Digi-Key.
  9. What is the typical use case for the NVD5490NLT4G-VF01 in power management?
    The NVD5490NLT4G-VF01 is typically used in high-efficiency power management applications requiring low on-resistance and high current handling.
  10. Can the NVD5490NLT4G-VF01 be used in automotive applications?
    Yes, the NVD5490NLT4G-VF01 can be used in automotive applications due to its robust specifications and reliability.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:5A (Ta), 17A (Tc)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:64mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:14 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:365 pF @ 25 V
FET Feature:-
Power Dissipation (Max):3.4W (Ta), 49W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DPAK-3
Package / Case:TO-252-3, DPak (2 Leads + Tab), SC-63
