NVC6S5A354PLZT1G
  • Share:

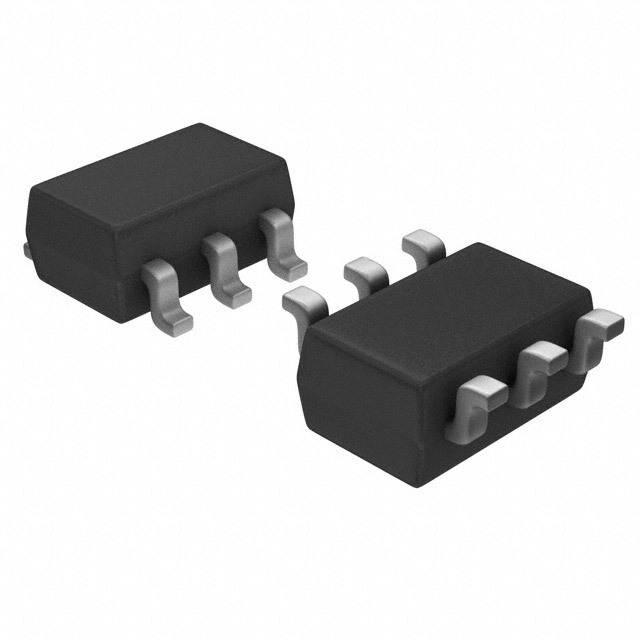

onsemi NVC6S5A354PLZT1G

Manufacturer No:
NVC6S5A354PLZT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 60V 4A 6CPH
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVC6S5A354PLZT1G is a P-Channel Power MOSFET manufactured by ON Semiconductor. This component is designed for high-performance applications requiring efficient power management. However, it is important to note that this product has been discontinued by ON Semiconductor as part of their portfolio renewal process.

Key Specifications

Specification Value
Minimum Operating Temperature -55°C
Maximum Operating Temperature +175°C
Power Dissipation (Pd) 1.9 W
Channel Mode Enhancement

Key Features

  • High Temperature Operation: The NVC6S5A354PLZT1G can operate over a wide temperature range from -55°C to +175°C, making it suitable for harsh environments.
  • High Power Dissipation: With a power dissipation of 1.9 W, this MOSFET is capable of handling significant power requirements.
  • Enhancement Mode: The enhancement mode operation allows for low threshold voltage and high current handling capabilities.

Applications

  • Power Management Systems: Suitable for use in various power management systems due to its high power dissipation and temperature range.
  • Automotive Systems: Can be used in automotive applications where high reliability and performance are critical.
  • Industrial Control Systems: Applicable in industrial control systems that require robust and efficient power handling.

Q & A

  1. What is the operating temperature range of the NVC6S5A354PLZT1G?

    The operating temperature range is from -55°C to +175°C.

  2. What is the power dissipation of the NVC6S5A354PLZT1G?

    The power dissipation is 1.9 W).

  3. What is the channel mode of the NVC6S5A354PLZT1G?

    The channel mode is enhancement).

  4. Is the NVC6S5A354PLZT1G still in production?

    No, the NVC6S5A354PLZT1G has been discontinued by ON Semiconductor).

  5. What are some recommended replacement devices for the NVC6S5A354PLZT1G?

    ON Semiconductor recommends the NVGS5120PT1G as a replacement device).

  6. What are the typical applications for the NVC6S5A354PLZT1G?

    Typical applications include power management systems, automotive systems, and industrial control systems).

  7. Where can I find detailed specifications for the NVC6S5A354PLZT1G?

    Detailed specifications can be found on the datasheet available from sources like Mouser Electronics and Alldatasheet.com).

  8. What is the significance of the enhancement mode in the NVC6S5A354PLZT1G?

    The enhancement mode allows for low threshold voltage and high current handling capabilities, making it efficient for power management).

  9. How do I handle the discontinuance of the NVC6S5A354PLZT1G in my current projects?

    ON Semiconductor advises planning for replacement devices and contacting their sales office for further guidance).

  10. Can I still purchase the NVC6S5A354PLZT1G after the discontinuance notice?

    Yes, but only until the last ship date specified by ON Semiconductor, and subject to reasonable order quantities and product availability).

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:4A (Ta)
Drive Voltage (Max Rds On, Min Rds On):4V, 10V
Rds On (Max) @ Id, Vgs:100mOhm @ 2A, 10V
Vgs(th) (Max) @ Id:2.6V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:14 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:600 pF @ 20 V
FET Feature:-
Power Dissipation (Max):1.9W (Ta)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:6-CPH
Package / Case:SOT-23-6 Thin, TSOT-23-6
0 Remaining View Similar

In Stock

-
92

Please send RFQ , we will respond immediately.
