NVBG040N120SC1
  • Share:

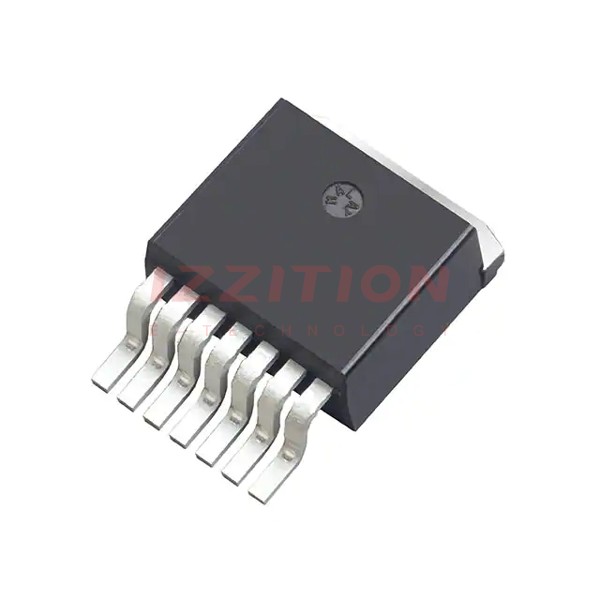

onsemi NVBG040N120SC1

Manufacturer No:
NVBG040N120SC1
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
TRANS SJT N-CH 1200V 60A D2PAK-7
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NVBG040N120SC1 is a Silicon Carbide (SiC) MOSFET produced by onsemi, leveraging the EliteSiC technology. This N-Channel MOSFET is designed to offer superior switching performance and higher reliability compared to traditional silicon-based MOSFETs. It features a low ON resistance and a compact chip size, resulting in low capacitance and gate charge. This enhances system efficiency, allows for faster operation frequencies, increases power density, reduces electromagnetic interference (EMI), and minimizes system size.

Key Specifications

Parameter Value
Channel Mode Enhancement
Type of Transistor N-Channel MOSFET
Blocking Voltage (BVDSS) 1200 V
Maximum Drain Current (ID(max)) 60 A
On Resistance (RDS(on)) at Vgs = 20V, Id = 60A 40 mΩ (Typical), 28 mΩ (Maximum at Vgs = 20V, Id = 60A)
Gate Charge (Qg) 220 nC
Output Capacitance 258 pF
Minimum Operating Temperature -55°C
Maximum Operating Temperature +175°C
Power Dissipation (Pd) 357 W
Package Type D2PAK-7L

Key Features

  • High-speed switching and low capacitance.
  • Low ON resistance (40 mΩ typical) and compact chip size.
  • 100% UIL tested for reliability.
  • Devices are RoHS compliant.
  • Qualified for automotive applications according to AEC-Q101 standards.

Applications

  • High power DC-DC converters.
  • Inverters.
  • Automotive DC/DC converters for Electric Vehicles (EV) and Plug-in Hybrid Electric Vehicles (PHEV).
  • Automotive inverters.

Q & A

  1. What is the blocking voltage of the NVBG040N120SC1 MOSFET?

    The blocking voltage (BVDSS) of the NVBG040N120SC1 MOSFET is 1200 V.

  2. What is the maximum drain current of the NVBG040N120SC1?

    The maximum drain current (ID(max)) of the NVBG040N120SC1 is 60 A.

  3. What is the typical on resistance of the NVBG040N120SC1?

    The typical on resistance (RDS(on)) of the NVBG040N120SC1 is 40 mΩ at Vgs = 20V, Id = 60A.

  4. What is the package type of the NVBG040N120SC1?

    The NVBG040N120SC1 comes in a D2PAK-7L package.

  5. Is the NVBG040N120SC1 qualified for automotive applications?
  6. What are the operating temperature ranges for the NVBG040N120SC1?
  7. What is the power dissipation (Pd) of the NVBG040N120SC1? d) of the NVBG040N120SC1 is 357 W.

  8. Are the NVBG040N120SC1 devices RoHS compliant?
  9. What are some common applications of the NVBG040N120SC1?
  10. What are the benefits of using SiC technology in the NVBG040N120SC1?

Product Attributes

FET Type:N-Channel
Technology:SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):1200 V
Current - Continuous Drain (Id) @ 25°C:60A (Tc)
Drive Voltage (Max Rds On, Min Rds On):20V
Rds On (Max) @ Id, Vgs:56mOhm @ 35A, 20V
Vgs(th) (Max) @ Id:4.3V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:106 nC @ 20 V
Vgs (Max):+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds:1789 pF @ 800 V
FET Feature:-
Power Dissipation (Max):357W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D2PAK-7
Package / Case:TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
0 Remaining View Similar

In Stock

$25.36
12

Please send RFQ , we will respond immediately.

Same Series
DD15S20LV30/AA
DD15S20LV30/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26M2S5WV5Z/AA
DD26M2S5WV5Z/AA
CONN D-SUB HD PLUG 26P SLDR CUP
DD15S20LVLS
DD15S20LVLS
CONN D-SUB HD RCPT 15P SLDR CUP
CBC46W4S100E20/AA
CBC46W4S100E20/AA
CONN D-SUB RCPT 46POS CRIMP
CBC47W1S100V50
CBC47W1S100V50
CONN D-SUB RCPT 47POS CRIMP
DD26S200T20/AA
DD26S200T20/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50V30/AA
DD26S2S50V30/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD15S20Z0S/AA
DD15S20Z0S/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD26S2S50V50/AA
DD26S2S50V50/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20W0X/AA
DD26S20W0X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S20WE2X/AA
DD26S20WE2X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S5W0X/AA
DD26S2S5W0X/AA
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number NVBG040N120SC1 NVBG080N120SC1 NVBG020N120SC1
Manufacturer onsemi onsemi onsemi
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology SiCFET (Silicon Carbide) SiCFET (Silicon Carbide) SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss) 1200 V 1200 V 1200 V
Current - Continuous Drain (Id) @ 25°C 60A (Tc) 30A (Tc) 8.6A (Ta), 98A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 20V 20V 20V
Rds On (Max) @ Id, Vgs 56mOhm @ 35A, 20V 110mOhm @ 20A, 20V 28mOhm @ 60A, 20V
Vgs(th) (Max) @ Id 4.3V @ 10mA 4.3V @ 5mA 4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs 106 nC @ 20 V 56 nC @ 20 V 220 nC @ 20 V
Vgs (Max) +25V, -15V +25V, -15V +25V, -15V
Input Capacitance (Ciss) (Max) @ Vds 1789 pF @ 800 V 1154 pF @ 800 V 2943 pF @ 800 V
FET Feature - - -
Power Dissipation (Max) 357W (Tc) 179W (Tc) 3.7W (Ta), 468W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package D2PAK-7 D2PAK-7 D2PAK-7
Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA TO-263-8, D²Pak (7 Leads + Tab), TO-263CA TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
