NTR5103NT1G
  • Share:

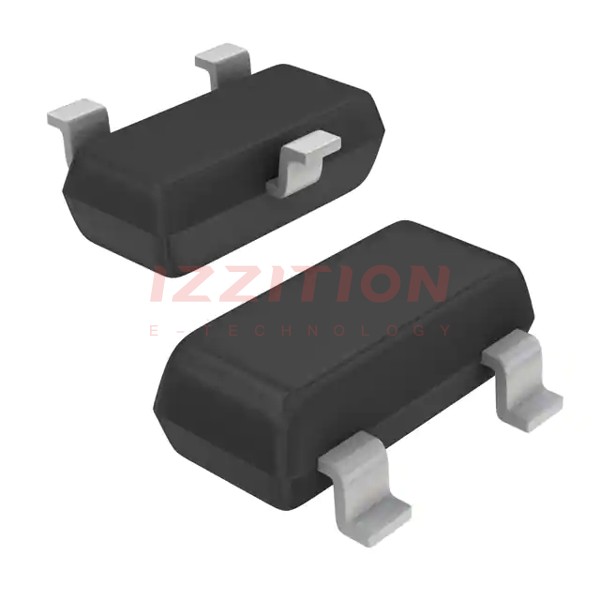

onsemi NTR5103NT1G

Manufacturer No:
NTR5103NT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 60V 260MA SOT23-3
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTR5103NT1G is a single-channel, N-channel small signal MOSFET produced by onsemi. This component is designed for use in a variety of applications requiring low power consumption and high reliability. The MOSFET is packaged in a SOT-23 case, making it suitable for space-constrained designs. It is known for its robust performance and is widely used in electronic circuits that demand efficient switching and low on-resistance.

Key Specifications

Product AttributeAttribute Value
Number of Channels1 Channel
Vds - Drain-Source Breakdown Voltage60 V
Id - Continuous Drain Current310 mA
Rds On - Drain-Source Resistance2.5 Ohms

Key Features

  • Single-channel N-channel MOSFET
  • High drain-source breakdown voltage of 60 V
  • Continuous drain current of 310 mA
  • Low on-resistance of 2.5 Ohms
  • SOT-23 package for compact designs
  • Low power consumption and high reliability

Applications

The NTR5103NT1G is suitable for various applications including but not limited to:

  • Switching circuits
  • Amplifier circuits
  • Power management systems
  • Automotive electronics
  • Consumer electronics

Q & A

  1. What is the drain-source breakdown voltage of the NTR5103NT1G?
    The drain-source breakdown voltage is 60 V.
  2. What is the continuous drain current of the NTR5103NT1G?
    The continuous drain current is 310 mA.
  3. What is the on-resistance of the NTR5103NT1G?
    The on-resistance is 2.5 Ohms.
  4. In what package is the NTR5103NT1G available?
    The NTR5103NT1G is available in a SOT-23 package.
  5. What are some typical applications of the NTR5103NT1G?
    Typical applications include switching circuits, amplifier circuits, power management systems, automotive electronics, and consumer electronics.
  6. Who is the manufacturer of the NTR5103NT1G?
    The manufacturer is onsemi.
  7. What is the number of channels in the NTR5103NT1G?
    The NTR5103NT1G is a single-channel MOSFET.
  8. Is the NTR5103NT1G suitable for high-power applications?
    No, it is designed for low to moderate power applications.
  9. Where can I find detailed specifications for the NTR5103NT1G?
    Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and Digi-Key.
  10. What is the typical use case for the NTR5103NT1G in electronic circuits?
    The NTR5103NT1G is typically used for efficient switching and low on-resistance in electronic circuits.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:260mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:2.5Ohm @ 240mA, 10V
Vgs(th) (Max) @ Id:2.6V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:0.81 nC @ 5 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:40 pF @ 25 V
FET Feature:-
Power Dissipation (Max):300mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-23-3 (TO-236)
Package / Case:TO-236-3, SC-59, SOT-23-3
0 Remaining View Similar

In Stock

$0.22
642

Please send RFQ , we will respond immediately.
