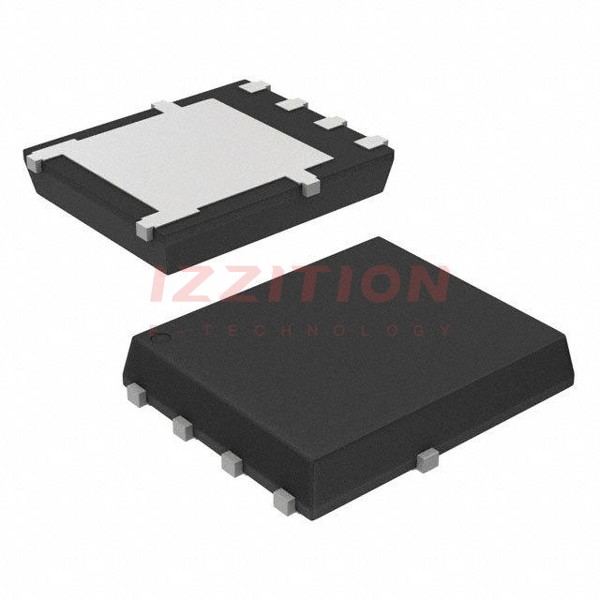

NTMFS006N12MCT1G
  • Share:

onsemi NTMFS006N12MCT1G

Manufacturer No:
NTMFS006N12MCT1G
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
POWER MOSFET, 120V SINGLE N CHAN
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NTMFS006N12MCT1G is a high-performance, single N-Channel power MOSFET produced by onsemi. This device is designed to offer high current handling and low on-resistance, making it suitable for a variety of power management and switching applications. The MOSFET features a compact 5-pin DFN package, which is lead-free and RoHS compliant, ensuring environmental sustainability and reliability.

Key Specifications

ParameterValue
Transistor PolarityN-Channel
Number of Channels1 Channel
Vds - Drain-Source Breakdown Voltage120 V
Id - Continuous Drain Current93 A
Package Type5-Pin DFN (Pb-Free)

Key Features

  • High continuous drain current of 93 A, enabling high power handling.
  • Low on-resistance, reducing power losses and improving efficiency.
  • Compact 5-pin DFN package, ideal for space-constrained designs.
  • Lead-free and RoHS compliant, ensuring environmental sustainability.
  • High drain-source breakdown voltage of 120 V, providing robust protection against voltage spikes.

Applications

The NTMFS006N12MCT1G MOSFET is versatile and can be used in various applications, including:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Automotive systems, such as battery management and power steering.
  • Industrial power management and control systems.
  • Renewable energy systems, such as solar and wind power inverters.

Q & A

  1. What is the continuous drain current of the NTMFS006N12MCT1G MOSFET?
    The continuous drain current is 93 A.
  2. What is the drain-source breakdown voltage of this MOSFET?
    The drain-source breakdown voltage is 120 V.
  3. What type of package does the NTMFS006N12MCT1G come in?
    The MOSFET comes in a 5-pin DFN package.
  4. Is the NTMFS006N12MCT1G lead-free and RoHS compliant?
    Yes, it is lead-free and RoHS compliant.
  5. What are some common applications for this MOSFET?
    Common applications include power supplies, motor control, automotive systems, industrial power management, and renewable energy systems.
  6. What is the polarity of the NTMFS006N12MCT1G MOSFET?
    The polarity is N-Channel.
  7. How many channels does the NTMFS006N12MCT1G MOSFET have?
    The MOSFET has 1 channel.
  8. Where can I find detailed specifications for the NTMFS006N12MCT1G?
    Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and RS Components.
  9. Is the NTMFS006N12MCT1G suitable for high-power applications?
    Yes, it is designed for high-power applications due to its high current and voltage ratings.
  10. What is the marking on the NTMFS006N12MCT1G package?
    The marking on the package is 06N12C.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):120 V
Current - Continuous Drain (Id) @ 25°C:15A (Ta), 93A (Tc)
Drive Voltage (Max Rds On, Min Rds On):6V, 10V
Rds On (Max) @ Id, Vgs:6mOhm @ 46A, 10V
Vgs(th) (Max) @ Id:4V @ 260µA
Gate Charge (Qg) (Max) @ Vgs:42 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:3365 pF @ 60 V
FET Feature:-
Power Dissipation (Max):2.7W (Ta), 104W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:5-DFN (5x6) (8-SOFL)
Package / Case:8-PowerTDFN, 5 Leads
0 Remaining View Similar

In Stock

$3.16
259

Please send RFQ , we will respond immediately.
