Overview

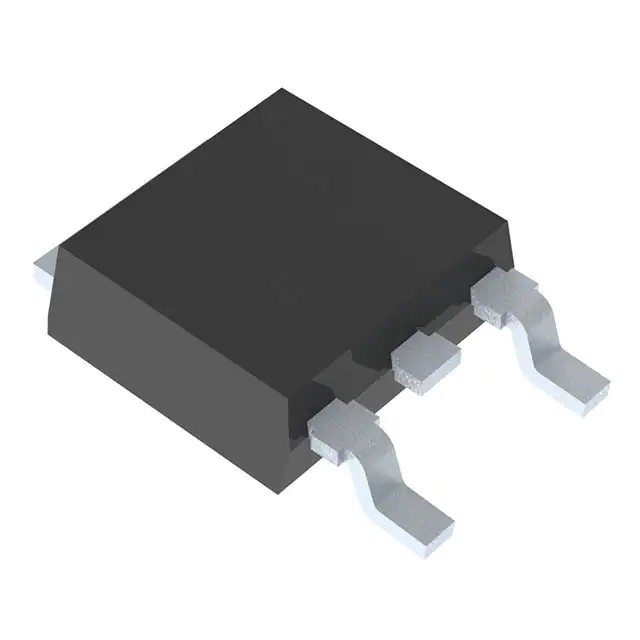

The NDDP010N25AZT4H is a high-performance N-channel MOSFET produced by onsemi. This device is designed to provide efficient power management in a variety of applications. It features a TO-252 (DPAK) package, making it suitable for space-constrained designs while offering robust electrical performance.
Key Specifications
| Parameter | Value |
|---|---|
| VDS (Drain-Source Voltage) | 250 V |
| ID (Continuous Drain Current) | 10 A |
| RDS(ON) (On-Resistance) | 420 mΩ @ VGS = 10 V, ID = 5 A |
| VGS(th) (Threshold Voltage) | 4.5 V @ ID = 1 mA |
| PD (Power Dissipation) | 52 W |
| Package | TO-252 (DPAK) |
| RoHS Compliance | Yes |
Key Features
- High drain current capability of 10 A.
- Low on-resistance of 420 mΩ at VGS = 10 V, ID = 5 A.
- High voltage rating of 250 V.
- TO-252 (DPAK) package for compact designs.
- RoHS compliant, ensuring environmental sustainability.
Applications
- Power supplies and DC-DC converters.
- Motor control and drive systems.
- High-frequency switching applications.
- Automotive and industrial power management systems.
- General-purpose power switching.
Q & A
- What is the maximum drain-source voltage of the NDDP010N25AZT4H?
The maximum drain-source voltage is 250 V. - What is the continuous drain current rating of this MOSFET?
The continuous drain current rating is 10 A. - What is the on-resistance of the NDDP010N25AZT4H at VGS = 10 V, ID = 5 A?
The on-resistance is 420 mΩ. - What is the threshold voltage of the NDDP010N25AZT4H?
The threshold voltage is 4.5 V @ ID = 1 mA. - What is the power dissipation rating of this device?
The power dissipation rating is 52 W. - What package type is used for the NDDP010N25AZT4H?
The package type is TO-252 (DPAK). - Is the NDDP010N25AZT4H RoHS compliant?
Yes, it is RoHS compliant. - What are some common applications for the NDDP010N25AZT4H?
Common applications include power supplies, motor control, high-frequency switching, automotive and industrial power management, and general-purpose power switching. - Where can I find detailed specifications for the NDDP010N25AZT4H?
Detailed specifications can be found in the datasheet available on the onsemi website or through distributors like Mouser and Digi-Key. - Is the NDDP010N25AZT4H suitable for high-frequency switching applications?
Yes, it is suitable due to its low on-resistance and high switching speed.
