NDD04N60Z-1G
  • Share:

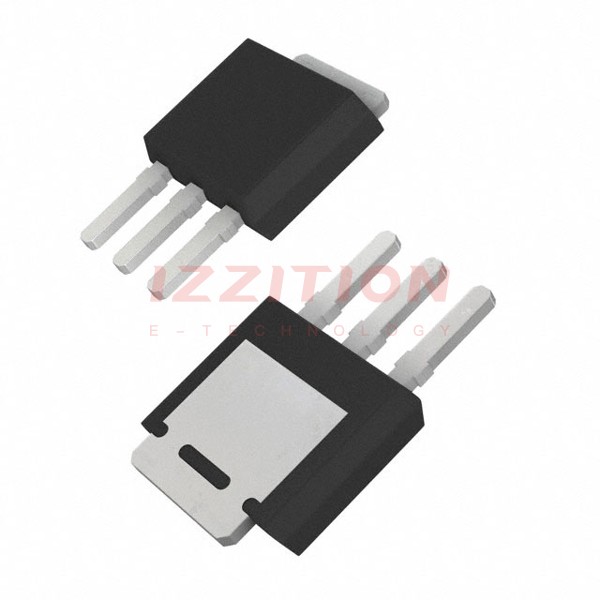

onsemi NDD04N60Z-1G

Manufacturer No:
NDD04N60Z-1G
Manufacturer:
onsemi
Package:
Tube
Description:
MOSFET N-CH 600V 4.1A IPAK
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The NDD04N60Z-1G is an N-Channel Power MOSFET produced by onsemi, designed for high-performance applications requiring low on-resistance and high current handling. This device is part of the NDD04N60Z series and is packaged in the IPAK (TO-251) case. It is Pb-free, halogen-free, and RoHS compliant, making it suitable for a wide range of modern electronic systems.

Key Specifications

Parameter Symbol Value Unit
Drain-to-Source Voltage VDSS 600 V
Continuous Drain Current ID 4.1 A (at TJ = 25°C), 2.6 A (at TA = 100°C) A
Pulsed Drain Current IDM 20 A A
Power Dissipation PD 83 W W
Gate-to-Source Voltage VGS ±30 V V
Static Drain-to-Source On-Resistance RDS(on) 1.8 - 2.0 Ω (at VGS = 10 V, ID = 2.0 A) Ω
Gate Threshold Voltage VGS(th) 3.0 - 4.5 V V
Junction-to-Case Thermal Resistance RθJC 1.5 °C/W °C/W
Operating Junction and Storage Temperature Range TJ, Tstg -55 to 150 °C °C

Key Features

  • Low ON Resistance: The NDD04N60Z-1G features a low on-resistance, which minimizes power losses and enhances efficiency in high-current applications.
  • Low Gate Charge: This MOSFET has a low gate charge, which reduces the switching time and improves overall system performance.
  • ESD Diode-Protected Gate: The device includes ESD protection for the gate, enhancing reliability and robustness against electrostatic discharge.
  • 100% Avalanche Tested: The MOSFET is thoroughly tested for avalanche ruggedness, ensuring it can handle high-energy pulses.
  • Pb-free, Halogen-free, and RoHS Compliant: The device is environmentally friendly and compliant with current regulatory standards.

Applications

The NDD04N60Z-1G is suitable for a variety of high-power applications, including:

  • Power supplies and DC-DC converters
  • Motor control and drive systems
  • Switching and linear amplifiers
  • High-frequency switching applications
  • Automotive and industrial power management systems

Q & A

  1. What is the maximum drain-to-source voltage of the NDD04N60Z-1G?

    The maximum drain-to-source voltage (VDSS) is 600 V.

  2. What is the continuous drain current rating at 25°C and 100°C?

    The continuous drain current (ID) is 4.1 A at TJ = 25°C and 2.6 A at TA = 100°C.

  3. What is the typical on-resistance of the NDD04N60Z-1G?

    The typical on-resistance (RDS(on)) is between 1.8 and 2.0 Ω at VGS = 10 V and ID = 2.0 A.

  4. Is the NDD04N60Z-1G ESD protected?

    Yes, the gate of the NDD04N60Z-1G is ESD diode-protected.

  5. What is the junction-to-case thermal resistance of the NDD04N60Z-1G?

    The junction-to-case thermal resistance (RθJC) is 1.5 °C/W.

  6. What are the operating and storage temperature ranges for the NDD04N60Z-1G?

    The operating and storage temperature range is -55 to 150 °C.

  7. Is the NDD04N60Z-1G RoHS compliant?

    Yes, the NDD04N60Z-1G is Pb-free, halogen-free, and RoHS compliant.

  8. What are some common applications for the NDD04N60Z-1G?

    Common applications include power supplies, motor control systems, switching amplifiers, and automotive power management systems.

  9. What is the maximum gate-to-source voltage for the NDD04N60Z-1G?

    The maximum gate-to-source voltage (VGS) is ±30 V.

  10. What is the pulsed drain current rating for the NDD04N60Z-1G?

    The pulsed drain current (IDM) is 20 A.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):600 V
Current - Continuous Drain (Id) @ 25°C:4.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:2Ohm @ 2A, 10V
Vgs(th) (Max) @ Id:4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs:29 nC @ 10 V
Vgs (Max):±30V
Input Capacitance (Ciss) (Max) @ Vds:640 pF @ 25 V
FET Feature:-
Power Dissipation (Max):83W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:I-PAK
Package / Case:TO-251-3 Short Leads, IPak, TO-251AA
0 Remaining View Similar

In Stock

-
21

Please send RFQ , we will respond immediately.

Same Series
NDF04N60ZG
NDF04N60ZG
MOSFET N-CH 600V 4.8A TO220FP
NDF04N60ZH
NDF04N60ZH
MOSFET N-CH 600V 4.8A TO220FP
NDD04N60ZT4G
NDD04N60ZT4G
MOSFET N-CH 600V 4.1A DPAK

Similar Products

Part Number NDD04N60Z-1G NDD02N60Z-1G NDD03N60Z-1G NDD04N50Z-1G
Manufacturer onsemi onsemi onsemi onsemi
Product Status Obsolete Obsolete Obsolete Obsolete
FET Type N-Channel N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 600 V 600 V 600 V 500 V
Current - Continuous Drain (Id) @ 25°C 4.1A (Tc) 2.2A (Tc) 2.6A (Tc) 3A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V 10V
Rds On (Max) @ Id, Vgs 2Ohm @ 2A, 10V 4.8Ohm @ 1A, 10V 3.6Ohm @ 1.2A, 10V 2.7Ohm @ 1.5A, 10V
Vgs(th) (Max) @ Id 4.5V @ 50µA 4.5V @ 50µA 4.5V @ 50µA 4.5V @ 50µA
Gate Charge (Qg) (Max) @ Vgs 29 nC @ 10 V 10.1 nC @ 10 V 12 nC @ 10 V 12 nC @ 10 V
Vgs (Max) ±30V ±30V ±30V ±30V
Input Capacitance (Ciss) (Max) @ Vds 640 pF @ 25 V 274 pF @ 25 V 312 pF @ 25 V 308 pF @ 25 V
FET Feature - - - -
Power Dissipation (Max) 83W (Tc) 57W (Tc) 61W (Tc) 61W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole Through Hole
Supplier Device Package I-PAK I-PAK I-PAK I-PAK
Package / Case TO-251-3 Short Leads, IPak, TO-251AA TO-251-3 Short Leads, IPak, TO-251AA TO-251-3 Short Leads, IPak, TO-251AA TO-251-3 Short Leads, IPak, TO-251AA
