FQPF27P06
  • Share:

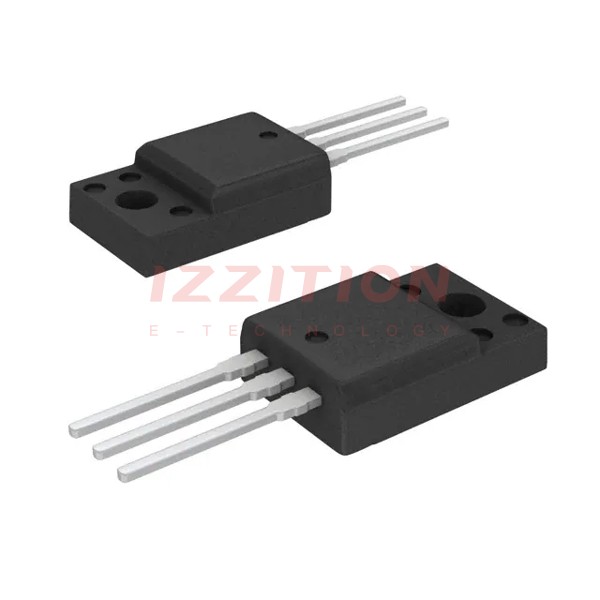

onsemi FQPF27P06

Manufacturer No:
FQPF27P06
Manufacturer:
onsemi
Package:
Bulk
Description:
MOSFET P-CH 60V 17A TO220F
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FQPF27P06 is a P-Channel enhancement mode power MOSFET produced by onsemi, utilizing their proprietary planar stripe and DMOS technology. This advanced technology is designed to reduce on-state resistance, provide superior switching performance, and offer high avalanche energy strength. The device is suitable for a variety of applications, including switched mode power supplies, audio amplifiers, DC motor control, and variable switching power applications.

Key Specifications

Parameter Unit Min Typ Max
Drain-Source Voltage (VDSS) V -60 - -
Drain Current (ID) - Continuous (TC = 25°C) A -17 - -
Drain Current (ID) - Continuous (TC = 100°C) A -12 - -
Drain Current (IDM) - Pulsed A -68 - -
Gate-Source Voltage (VGSS) V -25 - 25
Single Pulsed Avalanche Energy (EAS) mJ - - 560
Power Dissipation (PD) at TC = 25°C W - - 47
Thermal Resistance, Junction-to-Case (RθJC) °C/W - - 3.19
Thermal Resistance, Junction-to-Ambient (RθJA) °C/W - - 62.5
On-Resistance (RDS(on)) at VGS = -10 V, ID = -8.5 A mΩ - 0.055 0.07
Gate Threshold Voltage (VGS(th)) V -2.0 - -4.0
Total Gate Charge (Qg) nC - 33 43

Key Features

  • High current capability: -17 A continuous drain current at TC = 25°C.
  • Low on-state resistance: RDS(on) = 70 mΩ (Max.) at VGS = -10 V, ID = -8.5 A.
  • Low gate charge: Typical 33 nC.
  • Low Crss: Typical 120 pF.
  • 100% Avalanche tested.
  • High maximum junction temperature rating: 175°C.
  • Superior switching performance and high avalanche energy strength.

Applications

  • Switched mode power supplies.
  • Audio amplifiers.
  • DC motor control.
  • Variable switching power applications.

Q & A

  1. What is the maximum drain-source voltage (VDSS) of the FQPF27P06 MOSFET?

    The maximum drain-source voltage (VDSS) is -60 V.

  2. What is the continuous drain current (ID) at TC = 25°C?

    The continuous drain current (ID) at TC = 25°C is -17 A.

  3. What is the maximum on-state resistance (RDS(on)) at VGS = -10 V, ID = -8.5 A?

    The maximum on-state resistance (RDS(on)) at VGS = -10 V, ID = -8.5 A is 70 mΩ.

  4. What is the typical total gate charge (Qg)?

    The typical total gate charge (Qg) is 33 nC.

  5. What are the typical applications of the FQPF27P06 MOSFET?

    The typical applications include switched mode power supplies, audio amplifiers, DC motor control, and variable switching power applications.

  6. What is the maximum junction temperature rating of the FQPF27P06?

    The maximum junction temperature rating is 175°C.

  7. What is the thermal resistance, junction-to-case (RθJC) of the FQPF27P06?

    The thermal resistance, junction-to-case (RθJC) is 3.19 °C/W.

  8. What is the gate threshold voltage (VGS(th)) range?

    The gate threshold voltage (VGS(th)) range is from -2.0 V to -4.0 V.

  9. What is the maximum power dissipation (PD) at TC = 25°C?

    The maximum power dissipation (PD) at TC = 25°C is 47 W.

  10. Is the FQPF27P06 100% avalanche tested?

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:17A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:70mOhm @ 8.5A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:43 nC @ 10 V
Vgs (Max):±25V
Input Capacitance (Ciss) (Max) @ Vds:1400 pF @ 25 V
FET Feature:-
Power Dissipation (Max):47W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220F-3
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

$2.15
370

Please send RFQ , we will respond immediately.

Similar Products

Part Number FQPF27P06 FQPF47P06 FQPF17P06
Manufacturer onsemi onsemi Fairchild Semiconductor
Product Status Active Active Obsolete
FET Type P-Channel P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V 60 V 60 V
Current - Continuous Drain (Id) @ 25°C 17A (Tc) 30A (Tc) 12A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V
Rds On (Max) @ Id, Vgs 70mOhm @ 8.5A, 10V 26mOhm @ 15A, 10V 120mOhm @ 6A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA 4V @ 250µA 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 43 nC @ 10 V 110 nC @ 10 V 27 nC @ 10 V
Vgs (Max) ±25V ±25V ±25V
Input Capacitance (Ciss) (Max) @ Vds 1400 pF @ 25 V 3600 pF @ 25 V 900 pF @ 25 V
FET Feature - - -
Power Dissipation (Max) 47W (Tc) 62W (Tc) 39W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Through Hole Through Hole Through Hole
Supplier Device Package TO-220F-3 TO-220F-3 TO-220F-3
Package / Case TO-220-3 Full Pack TO-220-3 Full Pack TO-220-3 Full Pack
