Overview

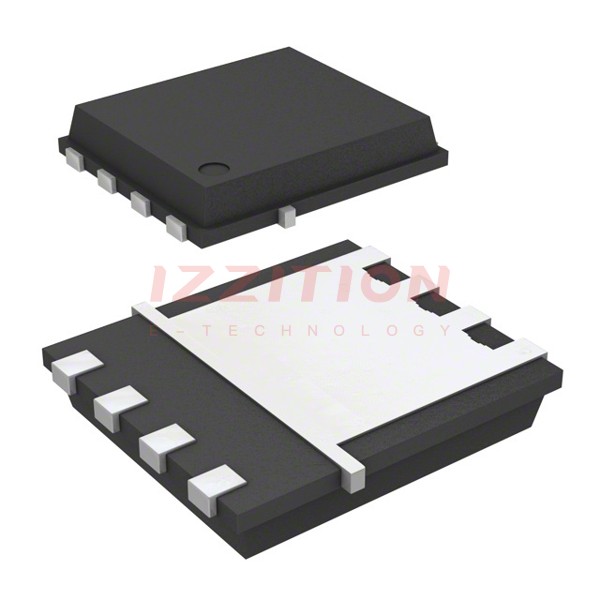

The FDWS86368-F085 is an N-Channel MOSFET from onsemi, designed with the POWERTRENCH technology. This device is optimized for high-performance applications, offering a drain-to-source voltage (VDSS) of 80 V and a continuous drain current (ID) of 80 A. It features a low on-resistance (RDS(on)) of 4.5 mΩ at VGS = 10 V, making it suitable for power-intensive applications. The MOSFET is AEC-Q101 qualified, Pb-free, and RoHS compliant, ensuring reliability and environmental compliance.
Key Specifications
| Symbol | Parameter | Test Conditions | Min. | Typ. | Max. | Units |
|---|---|---|---|---|---|---|
| VDSS | Drain-to-Source Voltage | - | - | 80 | V | |
| VGS | Gate-to-Source Voltage | - | - | ±20 | V | |
| ID | Drain Current (Continuous) | VGS = 10 V, TC = 25°C | - | - | 80 | A |
| IDSS | Drain-to-Source Leakage Current | VDS = 80 V, VGS = 0 V, TJ = 25°C | - | - | 1 μA | - |
| IGSS | Gate-to-Source Leakage Current | VGS = ±20 V | - | - | ±100 nA | - |
| RDS(on) | Drain to Source On Resistance | ID = 80 A, VGS = 10 V, TJ = 25°C | - | 3.7 | 4.5 | mΩ |
| TJ, TSTG | Operating and Storage Temperature | - | - | -55 to +175 | °C | |
| RθJC | Thermal Resistance, Junction to Case | - | - | 0.7 | °C/W | |
| RθJA | Maximum Thermal Resistance, Junction to Ambient | - | - | 50 | °C/W |
Key Features
- Typical RDS(on) = 3.7 mΩ at VGS = 10 V, ID = 80 A
- Typical Qg(tot) = 57 nC at VGS = 10 V, ID = 80 A
- UIS Capability
- Wettable Flanks for Automatic Optical Inspection (AOI)
- AEC-Q101 Qualified and PPAP Capable
- Pb-free and RoHS Compliant
Applications
- Automotive Engine Control
- PowerTrain Management
- Solenoid and Motor Drivers
- Integrated Starter/Alternator
- Primary Switch for 12 V Systems
Q & A
- What is the maximum drain-to-source voltage (VDSS) of the FDWS86368-F085?
The maximum drain-to-source voltage (VDSS) is 80 V.
- What is the continuous drain current (ID) rating of this MOSFET?
The continuous drain current (ID) rating is 80 A at VGS = 10 V and TC = 25°C.
- What is the typical on-resistance (RDS(on)) of the FDWS86368-F085?
The typical on-resistance (RDS(on)) is 3.7 mΩ at VGS = 10 V and ID = 80 A.
- Is the FDWS86368-F085 AEC-Q101 qualified?
Yes, the FDWS86368-F085 is AEC-Q101 qualified.
- What are the operating and storage temperature ranges for this MOSFET?
The operating and storage temperature ranges are -55°C to +175°C.
- What is the thermal resistance from junction to case (RθJC) for this device?
The thermal resistance from junction to case (RθJC) is 0.7°C/W.
- What is the maximum thermal resistance from junction to ambient (RθJA) for this device?
The maximum thermal resistance from junction to ambient (RθJA) is 50°C/W.
- Is the FDWS86368-F085 Pb-free and RoHS compliant?
Yes, the FDWS86368-F085 is Pb-free and RoHS compliant.
- What are some common applications for the FDWS86368-F085?
Common applications include automotive engine control, powertrain management, solenoid and motor drivers, integrated starter/alternator, and primary switch for 12 V systems.
- Does the FDWS86368-F085 support automatic optical inspection (AOI)?
Yes, it features wettable flanks for automatic optical inspection (AOI).
