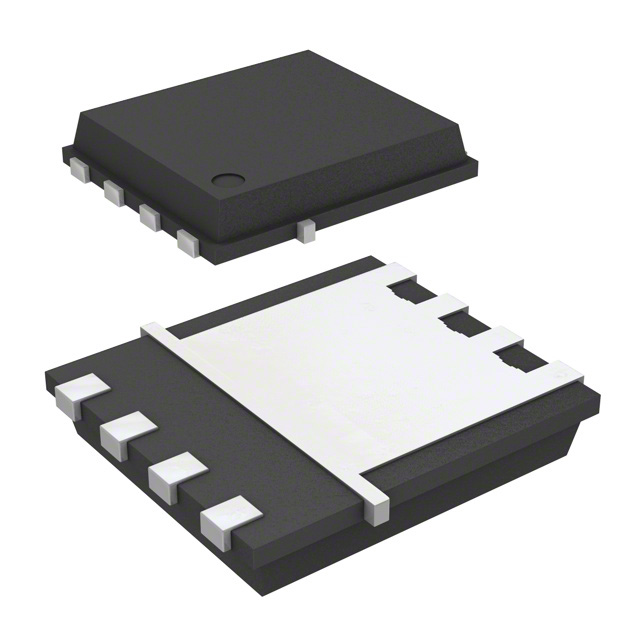

FDWS86369-F085
  • Share:

onsemi FDWS86369-F085

Manufacturer No:
FDWS86369-F085
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 80V 65A POWER56
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDWS86369-F085 is a high-performance N-Channel MOSFET produced by onsemi, designed for demanding applications in the automotive and industrial sectors. This device is part of the POWERTRENCH family, known for its advanced trench technology that enhances power efficiency and reliability. With a drain-to-source voltage (VDSS) of 80 V and a continuous drain current (ID) of 65 A, this MOSFET is well-suited for applications requiring high power handling and low on-resistance.

Key Specifications

Parameter Symbol Typical Value Unit
Drain to Source Voltage VDSS 80 V
Gate to Source Voltage VGS ±20 V
Continuous Drain Current ID 65 A
Drain to Source On-Resistance RDS(on) 5.9 mΩ at VGS = 10 V, ID = 65 A mΩ
Total Gate Charge Qg(tot) 35 nC at VGS = 10 V, ID = 65 A nC
Operating and Storage Temperature TJ, TSTG −55 to +175 °C °C
Thermal Resistance (Junction to Case) RθJC 1.4 °C/W °C/W
Thermal Resistance (Junction to Ambient) RθJA 50 °C/W °C/W

Key Features

  • Low On-Resistance: Typical RDS(on) of 5.9 mΩ at VGS = 10 V and ID = 65 A, ensuring minimal power loss.
  • High Current Capability: Continuous drain current of 65 A, making it suitable for high-power applications.
  • UIS Capability: Unclamped Inductive Switching capability enhances reliability in inductive switching applications.
  • Wettable Flanks: Enables automatic optical inspection (AOI) for improved manufacturing efficiency.
  • AEC-Q101 Qualified: Meets the stringent requirements for automotive applications, ensuring high reliability and performance.
  • Pb-Free and RoHS Compliant: Environmentally friendly and compliant with global regulations.

Applications

  • Automotive Engine Control: Suitable for engine management systems and other automotive control units.
  • PowerTrain Management: Used in powertrain control modules for efficient power handling.
  • Solenoid and Motor Drivers: Ideal for driving solenoids and motors in various automotive and industrial applications.
  • Integrated Starter/Alternator: Can be used in integrated starter/alternator systems for improved efficiency.
  • Primary Switch for 12 V Systems: Suitable as a primary switch in 12 V automotive systems.

Q & A

  1. What is the maximum drain-to-source voltage of the FDWS86369-F085 MOSFET?

    The maximum drain-to-source voltage (VDSS) is 80 V.

  2. What is the typical on-resistance of the FDWS86369-F085 MOSFET?

    The typical on-resistance (RDS(on)) is 5.9 mΩ at VGS = 10 V and ID = 65 A.

  3. What is the continuous drain current rating of the FDWS86369-F085 MOSFET?

    The continuous drain current (ID) is 65 A.

  4. Is the FDWS86369-F085 MOSFET AEC-Q101 qualified?

    Yes, the FDWS86369-F085 MOSFET is AEC-Q101 qualified, making it suitable for automotive applications.

  5. What is the thermal resistance (junction to case) of the FDWS86369-F085 MOSFET?

    The thermal resistance (junction to case) (RθJC) is 1.4 °C/W.

  6. Is the FDWS86369-F085 MOSFET Pb-Free and RoHS compliant?

    Yes, the FDWS86369-F085 MOSFET is Pb-Free and RoHS compliant.

  7. What are some typical applications of the FDWS86369-F085 MOSFET?

    Typical applications include automotive engine control, powertrain management, solenoid and motor drivers, integrated starter/alternator, and primary switch for 12 V systems.

  8. What is the total gate charge of the FDWS86369-F085 MOSFET?

    The total gate charge (Qg(tot)) is 35 nC at VGS = 10 V and ID = 65 A.

  9. Does the FDWS86369-F085 MOSFET have wettable flanks for AOI?

    Yes, the FDWS86369-F085 MOSFET has wettable flanks, enabling automatic optical inspection (AOI).

  10. What is the operating and storage temperature range of the FDWS86369-F085 MOSFET?

    The operating and storage temperature range is −55 to +175 °C.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):80 V
Current - Continuous Drain (Id) @ 25°C:65A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:7.5mOhm @ 65A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:46 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2470 pF @ 40 V
FET Feature:-
Power Dissipation (Max):107W (Tj)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:Power56
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

$1.79
83

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDWS86369-F085 FDWS86368-F085
Manufacturer onsemi onsemi
Product Status Active Active
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 80 V 80 V
Current - Continuous Drain (Id) @ 25°C 65A (Tc) 80A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V
Rds On (Max) @ Id, Vgs 7.5mOhm @ 65A, 10V 4.5mOhm @ 80A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 46 nC @ 10 V 75 nC @ 10 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 2470 pF @ 40 V 4350 pF @ 40 V
FET Feature - -
Power Dissipation (Max) 107W (Tj) 214W (Tj)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package Power56 Power56
Package / Case 8-PowerVDFN 8-PowerVDFN
