Overview

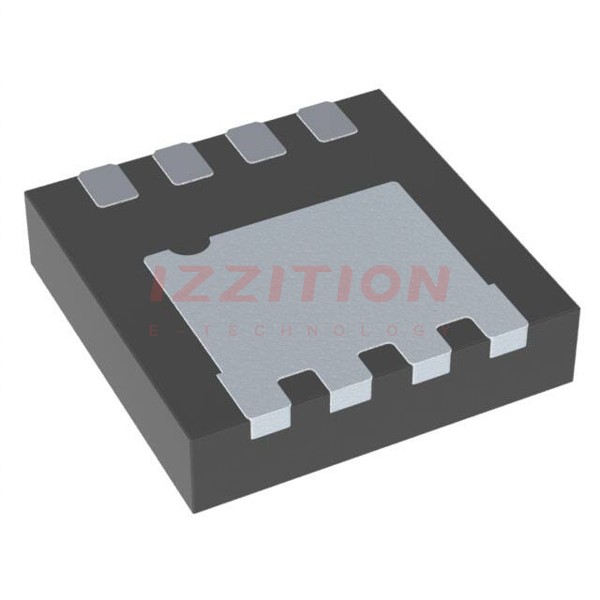

The FDMC3612-L701 is an N-Channel MOSFET produced by onsemi, utilizing their advanced POWERTRENCH process. This technology is designed to minimize on-state resistance while maintaining superior switching performance. The device is housed in a WDFN8 3.3x3.3, 0.65P package and is Pb-free and RoHS compliant. It is suitable for a variety of high-performance applications requiring low on-state resistance and high current handling capabilities.
Key Specifications
| Parameter | Rating/Value | Unit |
|---|---|---|
| VDS (Drain to Source Voltage) | 100 | V |
| VGS (Gate to Source Voltage) | ±20 | V |
| ID (Drain Current Continuous) | 12 | A |
| ID (Drain Current Pulsed) | 15 | A |
| EAS (Single Pulse Avalanche Energy) | 32 | mJ |
| PD (Power Dissipation) | 35 | W |
| TJ, TSTG (Operating and Storage Junction Temperature Range) | −55 to +150 | °C |
| rDS(on) (Static Drain to Source On Resistance at VGS = 10 V, ID = 3.3 A) | 92 - 110 | mΩ |
| rDS(on) (Static Drain to Source On Resistance at VGS = 6 V, ID = 3.0 A) | 98 - 122 | mΩ |
| RJC (Thermal Resistance, Junction to Case) | 3.5 | °C/W |
| RJA (Thermal Resistance, Junction to Ambient) | 53 | °C/W |
Key Features
- Low on-state resistance (rDS(on)) of 92 - 110 mΩ at VGS = 10 V, ID = 3.3 A
- Low profile WDFN8 3.3x3.3, 0.65P package
- 100% UIL tested
- Pb-free and RoHS compliant
- High current handling capability up to 12 A continuous
- Superior switching performance
Applications
- DC-DC conversion
- PSE (Power Sourcing Equipment) switch
- Other high-performance power management applications
Q & A
- What is the maximum drain to source voltage (VDS) of the FDMC3612-L701?
The maximum drain to source voltage (VDS) is 100 V.
- What is the continuous drain current (ID) rating of the FDMC3612-L701?
The continuous drain current (ID) rating is 12 A.
- What is the typical on-state resistance (rDS(on)) at VGS = 10 V and ID = 3.3 A?
The typical on-state resistance (rDS(on)) is 92 - 110 mΩ.
- Is the FDMC3612-L701 Pb-free and RoHS compliant?
- What are the typical applications of the FDMC3612-L701?
The FDMC3612-L701 is typically used in DC-DC conversion and PSE switch applications.
- What is the thermal resistance (RJC) from junction to case?
The thermal resistance (RJC) from junction to case is 3.5 °C/W.
- What is the maximum operating junction temperature (TJ) of the FDMC3612-L701?
The maximum operating junction temperature (TJ) is 150 °C.
- What is the single pulse avalanche energy (EAS) rating of the FDMC3612-L701?
The single pulse avalanche energy (EAS) rating is 32 mJ.
- What is the gate to source threshold voltage (VGS(th)) of the FDMC3612-L701?
The gate to source threshold voltage (VGS(th)) is 2.0 - 4.0 V.
- What is the package type of the FDMC3612-L701?
The package type is WDFN8 3.3x3.3, 0.65P.
