Overview

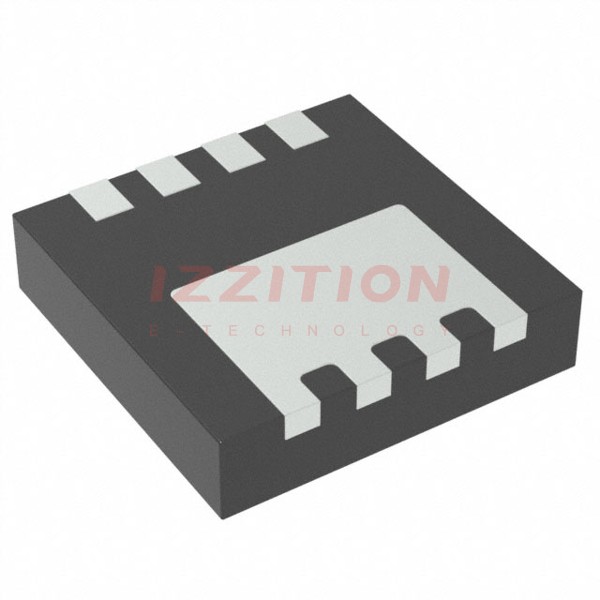

The FDMC007N08LC is an N-Channel MV MOSFET produced by onsemi, utilizing their advanced PowerTrench® process with Shielded Gate technology. This technology is optimized to minimize on-state resistance while maintaining superior switching performance and a best-in-class soft body diode. The device is designed for high-performance applications requiring low on-state resistance and reduced switching noise/EMI.
Key Specifications
| Parameter | Value | Unit |
|---|---|---|
| Drain to Source Voltage (VDS) | 80 | V |
| Gate to Source Voltage (VGS) | ±20 | V |
| Continuous Drain Current (ID) at TC = 25°C | 66 | A |
| Continuous Drain Current (ID) at TC = 100°C | 42 | A |
| Pulsed Drain Current (ID) | 330 | A |
| Power Dissipation (PD) at TC = 25°C | 57 | W |
| Operating and Storage Junction Temperature Range (TJ, TSTG) | -55 to +150 | °C |
| Thermal Resistance, Junction to Case (RJC) | 2.2 | °C/W |
| Thermal Resistance, Junction to Ambient (RJA) | 53 | °C/W |
| Static Drain to Source On Resistance (RDS(on)) at VGS = 10 V, ID = 21 A | 7.0 | mΩ |
| Static Drain to Source On Resistance (RDS(on)) at VGS = 4.5 V, ID = 17 A | 10.4 | mΩ |
Key Features
- Shielded Gate MOSFET Technology
- Max RDS(on) = 7.0 mΩ at VGS = 10 V, ID = 21 A
- Max RDS(on) = 10.4 mΩ at VGS = 4.5 V, ID = 17 A
- 5 V Drive Capable
- 50% Lower Qrr than Other MOSFET Suppliers
- Lowers Switching Noise/EMI
- MSL1 Robust Package Design
- 100% UIL Tested
- Pb-Free, Halide Free, and RoHS Compliant
Applications
- Primary DC-DC MOSFET
- Synchronous Rectifier in DC-DC and AC-DC
- Motor Drive
- Solar Applications
Q & A
- What is the maximum drain to source voltage (VDS) of the FDMC007N08LC?
The maximum drain to source voltage (VDS) is 80 V. - What is the continuous drain current (ID) at TC = 25°C?
The continuous drain current (ID) at TC = 25°C is 66 A. - What is the thermal resistance, junction to case (RJC), of the FDMC007N08LC?
The thermal resistance, junction to case (RJC), is 2.2 °C/W. - Is the FDMC007N08LC RoHS compliant?
Yes, the FDMC007N08LC is Pb-Free, Halide Free, and RoHS compliant. - What are the typical applications of the FDMC007N08LC?
The typical applications include primary DC-DC MOSFET, synchronous rectifier in DC-DC and AC-DC, motor drive, and solar applications. - What is the maximum power dissipation (PD) at TC = 25°C?
The maximum power dissipation (PD) at TC = 25°C is 57 W. - What is the gate to source threshold voltage (VGS(th)) range?
The gate to source threshold voltage (VGS(th)) range is 1.0 to 2.5 V. - Does the FDMC007N08LC have a robust package design?
Yes, it has an MSL1 robust package design. - Is the FDMC007N08LC 100% UIL tested?
Yes, the device is 100% UIL tested. - What is the reverse recovery charge (Qrr) of the FDMC007N08LC?
The reverse recovery charge (Qrr) is typically 27 to 43 nC.
