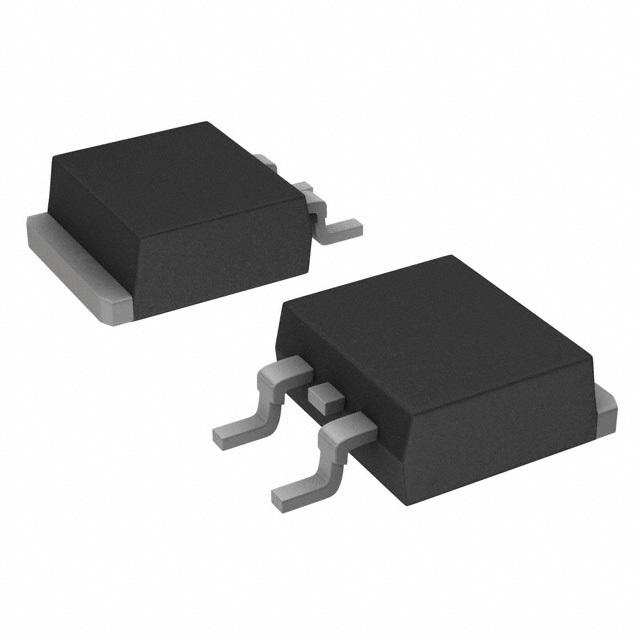

onsemi FDB3632-F085

Manufacturer No:
FDB3632-F085
Manufacturer:
onsemi
Package:
Tape & Reel (TR)
Description:
MOSFET N-CH 100V 12A TO263AB
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FDB3632-F085 is a high-performance N-Channel PowerTrench® MOSFET produced by onsemi. This device is designed to offer superior electrical and thermal characteristics, making it suitable for a wide range of high-power applications. With its low on-resistance and high current capability, it is an ideal choice for systems requiring efficient power management.

Key Specifications

Symbol Parameter Test Conditions Min Typ Max Units
VDSS Drain to Source Voltage - - 100 V
VGS Gate to Source Voltage - - ±20 V
ID Drain Current Continuous (TC < 111°C, VGS = 10V) - 80 A
ID Drain Current Continuous (Tamb = 25°C, VGS = 10V, RθJA = 43°C/W) - 12 A
rDS(ON) Drain to Source On Resistance ID = 80A, VGS = 10V - 0.0075 0.009
Qg(TOT) Total Gate Charge at 10V VGS = 0V to 10V, VDD = 50V, ID = 80A - 84 110 nC
TJ, TSTG Operating and Storage Temperature - - -55 to +175 °C
RθJC Thermal Resistance Junction to Case TO-220, TO-263, TO-262 - 0.48 °C/W
RθJA Thermal Resistance Junction to Ambient TO-263, 1in2 copper pad area - 43 °C/W

Key Features

  • Low On-Resistance: rDS(ON) = 7.5mΩ (Typ.) at VGS = 10V, ID = 80A.
  • Low Miller Charge and QRR Body Diode: Reduces switching losses and improves overall efficiency.
  • UIS Capability: Single pulse and repetitive pulse capability enhances reliability in high-stress applications.
  • AEC Q101 Qualified: Ensures the device meets stringent automotive standards.
  • High Current Capability: Continuous drain current up to 80A and pulsed current up to 200A.
  • Wide Operating Temperature Range: From -55°C to +175°C, making it suitable for various environmental conditions.

Applications

  • DC/DC Converters and Off-Line UPS: Ideal for high-efficiency power conversion systems.
  • Distributed Power Architectures and VRMs: Suitable for voltage regulator modules and distributed power systems.
  • Primary Switch for 24V and 48V Systems: Used in high-voltage systems requiring reliable switching.
  • High Voltage Synchronous Rectifier: Enhances efficiency in high-voltage rectification applications.
  • Direct Injection / Diesel Injection Systems: Used in automotive fuel injection systems.
  • 42V Automotive Load Control: Suitable for automotive load management systems.
  • Electronic Valve Train Systems: Used in advanced automotive valve control systems.

Q & A

  1. What is the maximum drain to source voltage (VDSS) of the FDB3632-F085?

    The maximum drain to source voltage (VDSS) is 100V.

  2. What is the typical on-resistance (rDS(ON)) of the FDB3632-F085?

    The typical on-resistance (rDS(ON)) is 7.5mΩ at VGS = 10V, ID = 80A.

  3. What is the total gate charge (Qg(TOT)) of the FDB3632-F085?

    The total gate charge (Qg(TOT)) is 84nC (Typ.) at VGS = 0V to 10V, VDD = 50V, ID = 80A.

  4. What are the operating and storage temperature ranges for the FDB3632-F085?

    The operating and storage temperature ranges are from -55°C to +175°C.

  5. Is the FDB3632-F085 qualified to any automotive standards?

    Yes, the FDB3632-F085 is qualified to AEC Q101.

  6. What are some common applications of the FDB3632-F085?

    Common applications include DC/DC converters, off-line UPS, distributed power architectures, VRMs, primary switches for 24V and 48V systems, high voltage synchronous rectifiers, direct injection/diesel injection systems, 42V automotive load control, and electronic valve train systems.

  7. What is the thermal resistance junction to ambient (RθJA) for the TO-263 package with a 1in2 copper pad area?

    The thermal resistance junction to ambient (RθJA) is 43°C/W for the TO-263 package with a 1in2 copper pad area.

  8. What is the maximum continuous drain current at ambient temperature (Tamb = 25°C) with RθJA = 43°C/W?

    The maximum continuous drain current at ambient temperature (Tamb = 25°C) with RθJA = 43°C/W is 12A.

  9. Does the FDB3632-F085 have any special capabilities for high-stress applications?

    Yes, it has single pulse and repetitive pulse UIS capability, enhancing its reliability in high-stress applications.

  10. What is the typical turn-on time (tON) of the FDB3632-F085?

    The typical turn-on time (tON) is 102ns at VDD = 50V, ID = 80A, VGS = 10V, RGS = 3.6Ω.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:12A (Ta)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:9mOhm @ 80A, 10V
Vgs(th) (Max) @ Id:4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:110 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:6000 pF @ 25 V
FET Feature:-
Power Dissipation (Max):310W (Tc)
Operating Temperature:-55°C ~ 175°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:D²PAK (TO-263)
Package / Case:TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
0 Remaining View Similar

In Stock

-
342

Please send RFQ , we will respond immediately.

Similar Products

Part Number FDB3632-F085 FDB3672-F085 FDB3652-F085
Manufacturer onsemi onsemi onsemi
Product Status Obsolete Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 100 V 100 V
Current - Continuous Drain (Id) @ 25°C 12A (Ta) 7.2A (Ta), 44A (Tc) 9A (Ta), 61A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 6V, 10V 6V, 10V
Rds On (Max) @ Id, Vgs 9mOhm @ 80A, 10V 28mOhm @ 44A, 10V 16mOhm @ 61A, 10V
Vgs(th) (Max) @ Id 4V @ 250µA 4V @ 250µA 4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 110 nC @ 10 V 31 nC @ 10 V 53 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 6000 pF @ 25 V 1710 pF @ 25 V 2880 pF @ 25 V
FET Feature - - -
Power Dissipation (Max) 310W (Tc) 120W (Tc) 150W (Tc)
Operating Temperature -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ) -55°C ~ 175°C (TJ)
Mounting Type Surface Mount Surface Mount Surface Mount
Supplier Device Package D²PAK (TO-263) D²PAK (TO-263) D²PAK (TO-263)
Package / Case TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
