FCPF400N80Z
  • Share:

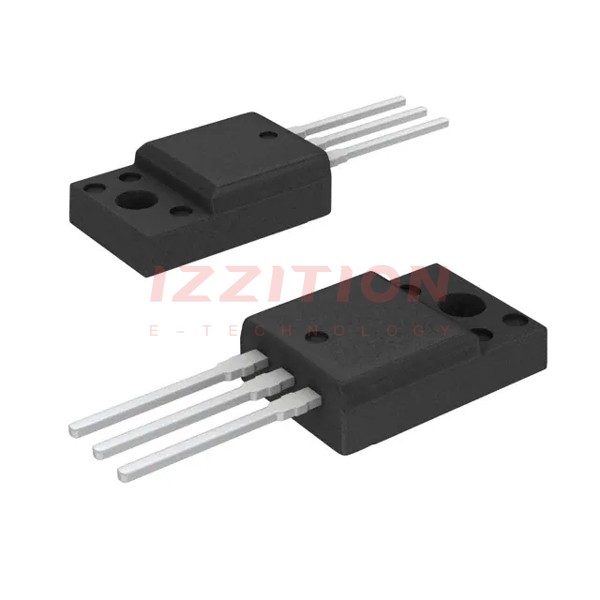

onsemi FCPF400N80Z

Manufacturer No:
FCPF400N80Z
Manufacturer:
onsemi
Package:
Bulk
Description:
MOSFET N-CH 800V 11A TO220F
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The FCPF400N80Z is an N-Channel SuperFET® II MOSFET produced by onsemi, formerly part of Fairchild Semiconductor. This high-voltage power MOSFET utilizes advanced Super Junction Technology, providing best-in-class robust body diode performance and high power density. It is designed for applications requiring system efficiency, reliability, and minimal board space. The FCPF400N80Z is particularly suited for AC-DC switch mode power supplies (SMPS), servers, telecom, computing, industrial power supplies, UPS/ESS, solar inverters, and lighting applications.

Key Specifications

Parameter Value Unit
Channel Type N -
Maximum Continuous Drain Current 11 A (at TC = 25°C), 8.9 A (at TC = 100°C) A
Maximum Drain Source Voltage 800 V V
Maximum Drain Source Resistance 340 mΩ mΩ
Channel Mode Enhancement -
Minimum Gate Threshold Voltage 2.5 V V
Maximum Power Dissipation 35.7 W W
Maximum Gate Source Voltage -30 V, +30 V V
Maximum Operating Temperature +150 °C °C
Minimum Operating Temperature -55 °C °C
Package Type TO-220F -
Mounting Type Through Hole -
Pin Count 3 -
Typical Gate Charge @ Vgs 43 nC @ 10 V nC
Thermal Resistance, Junction to Case 3.5 °C/W °C/W
Thermal Resistance, Junction to Ambient 62.5 °C/W °C/W

Key Features

  • Ultra Low Gate Charge: Typical gate charge of 43 nC at 10 V, enhancing switching performance.
  • Low On-Resistance: Typical RDS(on) of 340 mΩ, minimizing conduction loss.
  • Low Eoss: Typical energy stored in the output capacitance of 4.1 μJ at 400 V.
  • Low Effective Output Capacitance: Typical Coss(eff.) of 138 pF, improving high-frequency performance.
  • 100% Avalanche Tested: Ensuring robustness against avalanche conditions.
  • ESD Improved Capability: Internal gate-source ESD diode to withstand over 2 kV HBM surge stress.
  • RoHS Compliant: Environmentally friendly and compliant with RoHS regulations.

Applications

  • AC-DC Power Supplies: Suitable for switch mode power supplies (SMPS) in various applications.
  • Servers and Telecom: High power density and efficiency make it ideal for server and telecom infrastructure.
  • Computing and Industrial Power Supplies: Used in computing systems and industrial power supplies due to its reliability and efficiency.
  • UPS/ESS and Solar Inverters: Applicable in uninterruptible power supplies (UPS), energy storage systems (ESS), and solar inverters.
  • Lighting Applications: Suitable for LED lighting and other high-efficiency lighting solutions.

Q & A

  1. What is the maximum continuous drain current of the FCPF400N80Z MOSFET?

    The maximum continuous drain current is 11 A at a case temperature (TC) of 25°C and 8.9 A at TC of 100°C.

  2. What is the maximum drain source voltage of the FCPF400N80Z?

    The maximum drain source voltage (VDS) is 800 V.

  3. What is the typical on-resistance of the FCPF400N80Z?

    The typical on-resistance (RDS(on)) is 340 mΩ.

  4. What is the minimum gate threshold voltage of the FCPF400N80Z?

    The minimum gate threshold voltage is 2.5 V.

  5. What is the maximum power dissipation of the FCPF400N80Z?

    The maximum power dissipation is 35.7 W.

  6. What is the package type of the FCPF400N80Z?

    The package type is TO-220F.

  7. What are the typical applications of the FCPF400N80Z?

    Typical applications include AC-DC power supplies, servers, telecom, computing, industrial power supplies, UPS/ESS, solar inverters, and lighting applications.

  8. Is the FCPF400N80Z RoHS compliant?
  9. What is the thermal resistance from junction to case for the FCPF400N80Z?

    The thermal resistance from junction to case is 3.5 °C/W.

  10. What is the typical gate charge of the FCPF400N80Z?

    The typical gate charge is 43 nC at 10 V.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):800 V
Current - Continuous Drain (Id) @ 25°C:11A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:400mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id:4.5V @ 1.1mA
Gate Charge (Qg) (Max) @ Vgs:56 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2350 pF @ 100 V
FET Feature:-
Power Dissipation (Max):35.7W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Through Hole
Supplier Device Package:TO-220F-3
Package / Case:TO-220-3 Full Pack
0 Remaining View Similar

In Stock

$3.18
65

Please send RFQ , we will respond immediately.

Similar Products

Part Number FCPF400N80Z FCPF4300N80Z FCP400N80Z
Manufacturer onsemi Fairchild Semiconductor onsemi
Product Status Active Active Active
FET Type N-Channel N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 800 V 800 V 800 V
Current - Continuous Drain (Id) @ 25°C 11A (Tc) 1.6A (Tc) 14A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V 10V 10V
Rds On (Max) @ Id, Vgs 400mOhm @ 5.5A, 10V 4.3Ohm @ 800mA, 10V 400mOhm @ 5.5A, 10V
Vgs(th) (Max) @ Id 4.5V @ 1.1mA 4.5V @ 160µA 4.5V @ 1.1mA
Gate Charge (Qg) (Max) @ Vgs 56 nC @ 10 V 8.8 nC @ 10 V 56 nC @ 10 V
Vgs (Max) ±20V ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 2350 pF @ 100 V 355 pF @ 100 V 2350 pF @ 1000 V
FET Feature - - -
Power Dissipation (Max) 35.7W (Tc) 19.2W (Tc) 195W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Through Hole Through Hole Through Hole
Supplier Device Package TO-220F-3 TO-220F-3 TO-220-3
Package / Case TO-220-3 Full Pack TO-220-3 Full Pack TO-220-3
