Nexperia USA Inc. PMPB15XPH

Manufacturer No:
PMPB15XPH
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 12V 8.2A DFN2020MD-6
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

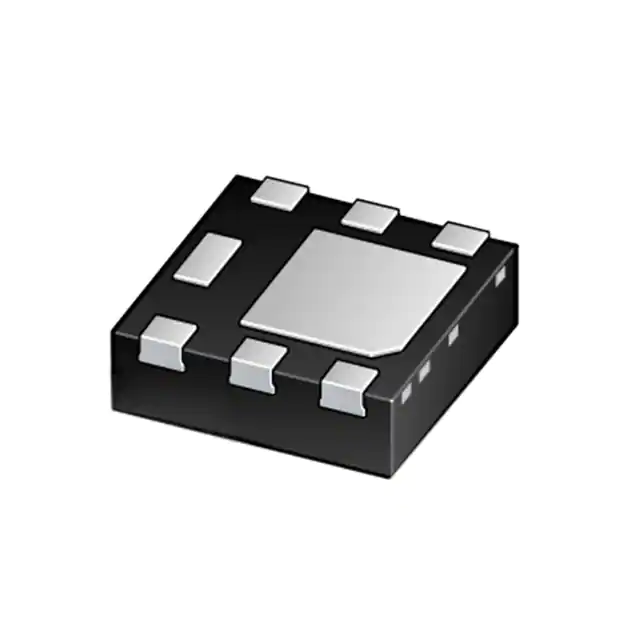

The PMPB15XPH is a single P-channel Trench MOSFET produced by Nexperia USA Inc. This component is part of Nexperia's extensive range of power MOSFETs, known for their high performance and reliability. The PMPB15XPH is housed in a small and leadless ultra-thin SMD plastic package, measuring 2 x 2 x 0.65 mm, making it ideal for space-constrained applications.

Key Specifications

ParameterValue
Type NumberPMPB15XP
Orderable Part NumberPMPB15XPH
PackageSOT1220
Vds (Drain-Source Voltage)12 V
Id (Continuous Drain Current)See datasheet for specific values
Rds(on) (On-Resistance)See datasheet for specific values
ESD Protection1.5 kV (Human Body Model)
RoHS StatusRoHS compliant

Key Features

  • Trench MOSFET technology for high performance and low on-resistance.
  • Small and leadless ultra-thin SMD plastic package (SOT1220) measuring 2 x 2 x 0.65 mm.
  • 1.5 kV ESD protection (Human Body Model) for enhanced reliability.
  • Low Rds(on) for efficient power handling.

Applications

The PMPB15XPH is suitable for a variety of applications where high efficiency and compact design are crucial. These include:

  • Power management in automotive systems.
  • Industrial power supplies and motor drives.
  • Consumer electronics requiring low power consumption and high reliability.
  • Collaborative robots (cobots) and other industrial equipment.

Q & A

  1. What is the drain-source voltage (Vds) of the PMPB15XPH?
    The drain-source voltage (Vds) of the PMPB15XPH is 12 V.
  2. What package type does the PMPB15XPH use?
    The PMPB15XPH is housed in a SOT1220 package.
  3. What is the ESD protection level of the PMPB15XPH?
    The PMPB15XPH has 1.5 kV ESD protection (Human Body Model).
  4. Is the PMPB15XPH RoHS compliant?
    Yes, the PMPB15XPH is RoHS compliant.
  5. What technology does the PMPB15XPH use?
    The PMPB15XPH uses Trench MOSFET technology.
  6. What are the typical applications of the PMPB15XPH?
    The PMPB15XPH is used in automotive systems, industrial power supplies, consumer electronics, and industrial equipment.
  7. Where can I purchase the PMPB15XPH?
    The PMPB15XPH can be purchased from distributors such as Digi-Key, Mouser, and other authorized Nexperia distributors.
  8. What is the continuous drain current (Id) of the PMPB15XPH?
    For specific values of continuous drain current, refer to the datasheet.
  9. How does the PMPB15XPH contribute to space-saving designs?
    The PMPB15XPH is packaged in a small and leadless ultra-thin SMD plastic package, making it ideal for space-constrained applications.
  10. What are the benefits of using Trench MOSFET technology in the PMPB15XPH?
    Trench MOSFET technology provides high performance and low on-resistance, enhancing the overall efficiency of the device.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):12 V
Current - Continuous Drain (Id) @ 25°C:8.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:19mOhm @ 8.2A, 4.5V
Vgs(th) (Max) @ Id:900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:100 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:2875 pF @ 6 V
FET Feature:-
Power Dissipation (Max):1.7W (Ta), 12.5W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:DFN2020MD-6
Package / Case:6-UDFN Exposed Pad
0 Remaining View Similar

In Stock

$0.18
2,529

Please send RFQ , we will respond immediately.
