Product Introduction

Overview

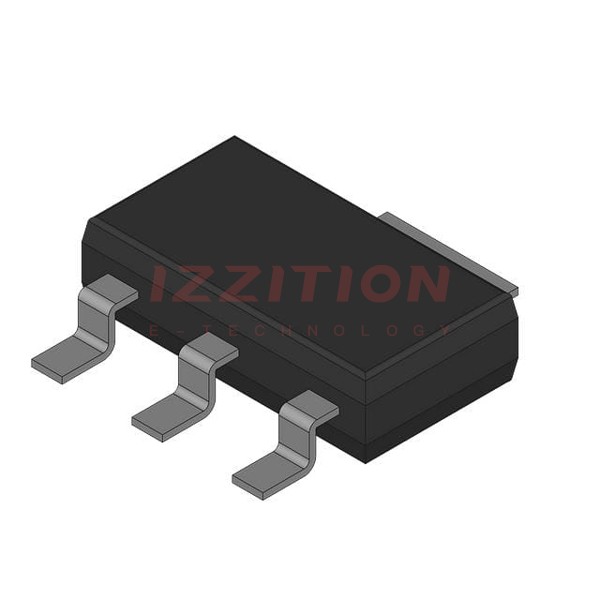

The BUK98150-55A/CUF is an N-channel TrenchMOS logic level Field-Effect Transistor (FET) produced by Nexperia USA Inc. This device is designed using TrenchMOS technology and is packaged in a plastic SOT223 (SC-73) package. It is an enhancement mode FET, suitable for a wide range of applications requiring high efficiency and reliability. The BUK98150-55A/CUF is part of Nexperia’s extensive portfolio of power MOSFETs, which are known for their high performance and energy efficiency.

Key Specifications

ParameterValue
Type numberBUK98150-55A
PackageSOT223 (SC-73)
VDS [max] (V)55
RDSon [max] @ VGS = 10 V (mΩ)137
RDSon [max] @ VGS = 5 V (mΩ)150
RDSon [max] @ VGS = 4.5 V; @25°C (mΩ)161
Tj [max] (°C)150
ID [max] (A)5.5
QGD [typ] (nC)2.8
Ptot [max] (W)8
Qr [typ] (nC)1.5
VGSth [typ] (V)Y (Automotive qualified)
Ciss [typ] (pF)240
Coss [typ] (pF)53

Key Features

  • TrenchMOS Technology: Enhances performance with lower RDSon and improved thermal characteristics.
  • Logic Level: Compatible with standard logic level signals, making it easy to integrate into various digital systems.
  • High Efficiency: Low on-resistance and minimal switching losses contribute to high efficiency in power applications.
  • Automotive Qualified: Meets stringent automotive standards, ensuring reliability in harsh environments.
  • Compact Package: SOT223 (SC-73) package is compact and suitable for space-constrained designs.

Applications

The BUK98150-55A/CUF is versatile and can be used in a variety of applications, including:

  • Automotive Systems: Suitable for use in automotive electronics due to its automotive qualification and robust performance.
  • Industrial Power Systems: Ideal for industrial power supplies, motor control, and other high-power applications.
  • Consumer Electronics: Used in power management circuits for consumer electronics such as laptops, smartphones, and other portable devices.
  • Power Supplies: Can be used in switch-mode power supplies, DC-DC converters, and other power management circuits.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the BUK98150-55A/CUF?
    The maximum drain-source voltage (VDS) is 55 V.
  2. What is the typical on-resistance (RDSon) at VGS = 10 V?
    The typical on-resistance (RDSon) at VGS = 10 V is 137 mΩ.
  3. What is the maximum continuous drain current (ID) at 25°C?
    The maximum continuous drain current (ID) at 25°C is 5.5 A.
  4. Is the BUK98150-55A/CUF automotive qualified?
    Yes, the BUK98150-55A/CUF is automotive qualified.
  5. What is the package type of the BUK98150-55A/CUF?
    The package type is SOT223 (SC-73).
  6. What is the maximum junction temperature (Tj)?
    The maximum junction temperature (Tj) is 150°C.
  7. What are some typical applications of the BUK98150-55A/CUF?
    Typical applications include automotive systems, industrial power systems, consumer electronics, and power supplies.
  8. What technology is used in the BUK98150-55A/CUF?
    The BUK98150-55A/CUF uses TrenchMOS technology.
  9. How can I obtain the datasheet for the BUK98150-55A/CUF?
    The datasheet can be obtained from Nexperia’s official website or through local sales offices.
  10. Can I purchase samples of the BUK98150-55A/CUF?
    Yes, samples can be ordered via Nexperia’s sales organization.
