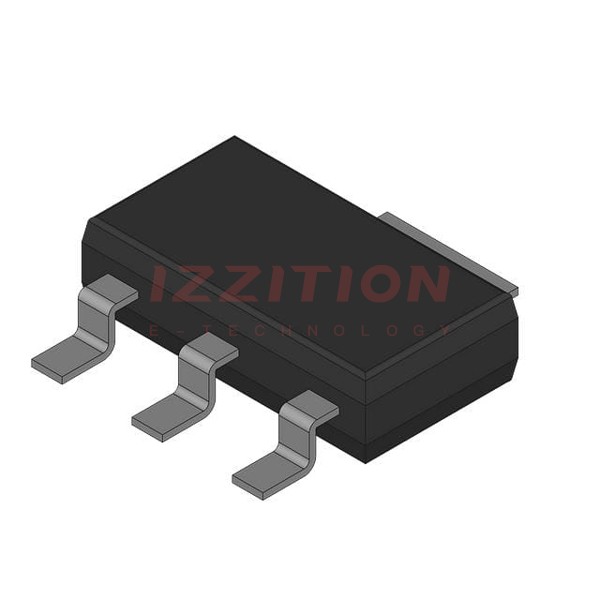

The BUK98150-55A/CU,135 is an N-channel TrenchMOS logic level Field-Effect Transistor (FET) produced by Nexperia USA Inc. This device is designed using TrenchMOS technology and is housed in a plastic SOT223 (SC-73) package. It is known for its high performance and efficiency, making it suitable for a wide range of applications, particularly in power management and high-speed switching scenarios.

Key Specifications

ParameterValue
Type numberBUK98150-55A
PackageSOT223 (SC-73)
Channel typeN-channel
Number of transistors1
VDS [max] (V)55
RDSon [max] @ VGS = 10 V (mΩ)137
RDSon [max] @ VGS = 5 V (mΩ)150
RDSon [max] @ VGS = 4.5 V; @25°C (mΩ)161
Tj [max] (°C)150
ID [max] (A)5.5
QGD [typ] (nC)2.8
Ptot [max] (W)8
Qr [typ] (nC)30
VGSth [typ] (V)1.5
Automotive qualifiedYes
Ciss [typ] (pF)240
Coss [typ] (pF)53

Key Features

  • Logic level N-channel enhancement mode FET, making it easy to drive from standard logic levels.
  • Low on-state resistance (RDSon) for efficient power handling.
  • High maximum drain-source voltage (VDS) of 55 V.
  • Maximum drain current (ID) of 5.5 A.
  • Compact SOT223 (SC-73) package for space-saving designs.
  • Automotive qualified, ensuring reliability in demanding automotive applications.
  • High thermal performance with a maximum junction temperature (Tj) of 150°C.

Applications

The BUK98150-55A/CU,135 is versatile and can be used in various applications, including:

  • Automotive systems: Suitable for use in automotive power management and control systems due to its automotive qualification.
  • Power management: Ideal for DC-DC converters, power supplies, and other power management circuits.
  • Industrial control: Used in industrial control systems, motor control, and power switching applications.
  • Consumer electronics: Applicable in consumer electronics for power efficient designs.
  • High-speed switching: Optimized for high-speed switching applications due to its low RDSon and fast switching times.

Q & A

  1. What is the maximum drain-source voltage (VDS) of the BUK98150-55A/CU,135?
    The maximum drain-source voltage (VDS) is 55 V.
  2. What is the maximum drain current (ID) of this FET?
    The maximum drain current (ID) is 5.5 A.
  3. What package type is used for the BUK98150-55A/CU,135?
    The device is housed in a SOT223 (SC-73) package.
  4. Is the BUK98150-55A/CU,135 automotive qualified?
    Yes, it is automotive qualified.
  5. What is the typical on-state resistance (RDSon) at VGS = 10 V?
    The typical on-state resistance (RDSon) at VGS = 10 V is 137 mΩ.
  6. What is the maximum junction temperature (Tj) of this FET?
    The maximum junction temperature (Tj) is 150°C.
  7. What are some common applications of the BUK98150-55A/CU,135?
    Common applications include automotive systems, power management, industrial control, consumer electronics, and high-speed switching.
  8. How does the BUK98150-55A/CU,135 benefit from TrenchMOS technology?
    The TrenchMOS technology provides low on-state resistance and high efficiency, making it suitable for power management and high-speed switching applications.
  9. Where can I find more detailed specifications and application notes for the BUK98150-55A/CU,135?
    You can find detailed specifications and application notes on the Nexperia website or through distributors like Mouser and Digi-Key.
  10. Is the BUK98150-55A/CU,135 available for sampling?
    Yes, samples can be ordered via Nexperia's sales organization.
