BUK7880-55A/CUX
  • Share:

Nexperia USA Inc. BUK7880-55A/CUX

Manufacturer No:
BUK7880-55A/CUX
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

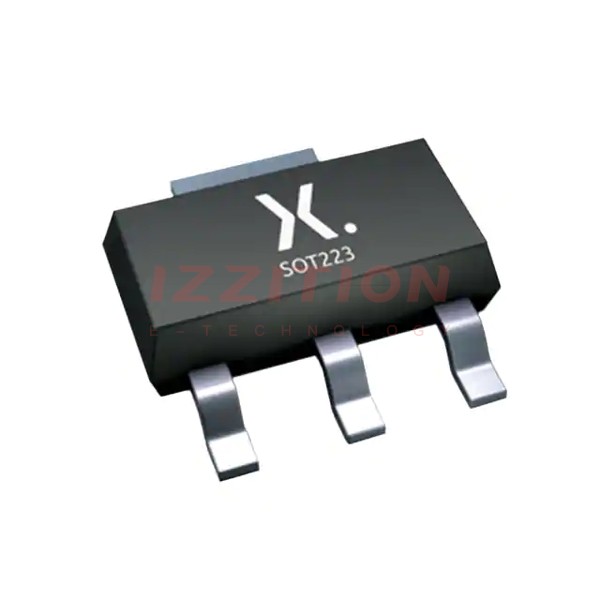

MOSFET N-CH 55V 7A SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BUK7880-55A/CUX is a standard level N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc. This device is part of Nexperia's General Purpose Automotive (GPA) series, designed to meet the demands of various automotive and industrial applications. It features a plastic package and is known for its reliability and performance in harsh environments.

Key Specifications

ParameterConditionsMinMaxUnit
Tstg Storage Temperature-55150°C
Tj Junction Temperature-55175°C
VDS Drain-Source Voltage55V
VGS Gate-Source Voltage20V
ID Continuous Drain CurrentTc = 25°C55A
RDS(on) On-State Drain-Source ResistanceVGS = 10V, ID = 25A4.5mΩ

Key Features

  • Standard level N-channel enhancement mode FET
  • General Purpose Automotive (GPA) series
  • Plastic package for reliability in harsh environments
  • High continuous drain current (ID) of up to 55 A
  • Low on-state drain-source resistance (RDS(on)) of 4.5 mΩ
  • Wide operating temperature range from -55°C to 175°C

Applications

The BUK7880-55A/CUX is suitable for a variety of applications, including automotive systems, industrial power supplies, motor control, and power management systems. Its robust design and high performance make it an ideal choice for use in harsh environments and demanding applications.

Q & A

  1. What is the BUK7880-55A/CUX? The BUK7880-55A/CUX is a standard level N-channel enhancement mode Field-Effect Transistor (FET) produced by Nexperia USA Inc.
  2. What is the maximum continuous drain current of the BUK7880-55A/CUX? The maximum continuous drain current is 55 A.
  3. What is the on-state drain-source resistance of the BUK7880-55A/CUX? The on-state drain-source resistance is 4.5 mΩ.
  4. What is the operating temperature range of the BUK7880-55A/CUX? The operating temperature range is from -55°C to 175°C.
  5. What type of package does the BUK7880-55A/CUX use? The BUK7880-55A/CUX uses a plastic package.
  6. What series does the BUK7880-55A/CUX belong to? The BUK7880-55A/CUX belongs to the General Purpose Automotive (GPA) series.
  7. What are some common applications of the BUK7880-55A/CUX? Common applications include automotive systems, industrial power supplies, motor control, and power management systems.
  8. What is the maximum drain-source voltage of the BUK7880-55A/CUX? The maximum drain-source voltage is 55 V.
  9. What is the maximum gate-source voltage of the BUK7880-55A/CUX? The maximum gate-source voltage is 20 V.
  10. Where can I find detailed specifications for the BUK7880-55A/CUX? Detailed specifications can be found in the datasheet available on Nexperia's official website and other electronic component distributors like Digi-Key and Mouser.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):55 V
Current - Continuous Drain (Id) @ 25°C:7A (Tc)
Drive Voltage (Max Rds On, Min Rds On):10V
Rds On (Max) @ Id, Vgs:80mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:4V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:12 nC @ 10 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:500 pF @ 25 V
FET Feature:-
Power Dissipation (Max):8W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-223
Package / Case:TO-261-4, TO-261AA
0 Remaining View Similar

In Stock

$0.56
546

Please send RFQ , we will respond immediately.
