Nexperia USA Inc. BSP110,115

Manufacturer No:
BSP110,115
Manufacturer:
Nexperia USA Inc.
Package:
Tape & Reel (TR)
Description:

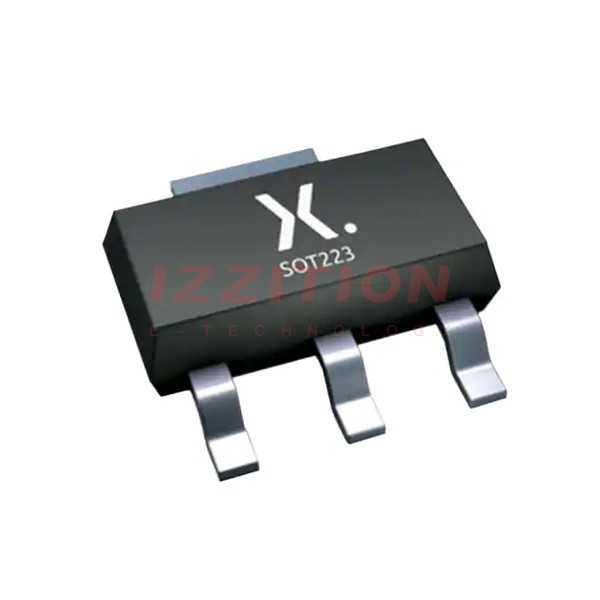

MOSFET N-CH 100V 520MA SOT223
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The BSP110,115 is an N-channel MOSFET produced by Nexperia USA Inc. Although this component is currently obsolete and no longer manufactured, it remains relevant for understanding and replacing in existing designs. The MOSFET is part of the SOT-223 package family, which is a surface mount type, making it suitable for a variety of electronic applications where space efficiency is crucial.

Key Specifications

ParameterValue
Voltage Rating (Vds)100 V
Continuous Drain Current (Id)520 mA
Power Dissipation (Pd)6.25 W
Package TypeSOT-223
Pins4

Key Features

  • N-channel MOSFET for general-purpose switching applications.
  • Surface mount SOT-223 package for compact designs.
  • High voltage rating of 100 V and continuous drain current of 520 mA.
  • Power dissipation of 6.25 W, suitable for moderate power applications.

Applications

The BSP110,115 MOSFET is suitable for various general-purpose switching applications, including but not limited to:

  • Power management circuits.
  • Motor control systems.
  • Audio amplifiers.
  • Industrial control systems.

Q & A

  1. What is the voltage rating of the BSP110,115 MOSFET?
    The voltage rating (Vds) of the BSP110,115 MOSFET is 100 V.
  2. What is the continuous drain current of the BSP110,115?
    The continuous drain current (Id) of the BSP110,115 is 520 mA.
  3. What is the power dissipation of the BSP110,115?
    The power dissipation (Pd) of the BSP110,115 is 6.25 W.
  4. What package type does the BSP110,115 use?
    The BSP110,115 uses the SOT-223 surface mount package.
  5. Is the BSP110,115 still in production?
    No, the BSP110,115 is obsolete and no longer manufactured.
  6. What are some possible applications for the BSP110,115?
    It can be used in power management circuits, motor control systems, audio amplifiers, and industrial control systems.
  7. What are the key features of the BSP110,115?
    Key features include its N-channel configuration, high voltage rating, moderate power dissipation, and compact SOT-223 package.
  8. Where can I find substitutes for the BSP110,115?
    Substitutes can be found through distributors like Digi-Key, Mouser, or by consulting the manufacturer's recommendations.
  9. What is the significance of the SOT-223 package?
    The SOT-223 package is a surface mount type that offers compact design and efficient use of space in electronic circuits.
  10. How many pins does the BSP110,115 have?
    The BSP110,115 has 4 pins.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):100 V
Current - Continuous Drain (Id) @ 25°C:520mA (Tc)
Drive Voltage (Max Rds On, Min Rds On):5V
Rds On (Max) @ Id, Vgs:10Ohm @ 150mA, 5V
Vgs(th) (Max) @ Id:2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:40 pF @ 10 V
FET Feature:-
Power Dissipation (Max):6.25W (Tc)
Operating Temperature:-65°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-223
Package / Case:TO-261-4, TO-261AA
0 Remaining View Similar

In Stock

-
600

Please send RFQ , we will respond immediately.

Similar Products

Part Number BSP110,115 BSP130,115
Manufacturer Nexperia USA Inc. Nexperia USA Inc.
Product Status Obsolete Obsolete
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 100 V 300 V
Current - Continuous Drain (Id) @ 25°C 520mA (Tc) 350mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 5V 10V
Rds On (Max) @ Id, Vgs 10Ohm @ 150mA, 5V 6Ohm @ 250mA, 10V
Vgs(th) (Max) @ Id 2V @ 1mA 2V @ 1mA
Gate Charge (Qg) (Max) @ Vgs - -
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 40 pF @ 10 V 120 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 6.25W (Tc) 1.5W (Ta)
Operating Temperature -65°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package SOT-223 SOT-223
Package / Case TO-261-4, TO-261AA TO-261-4, TO-261AA
