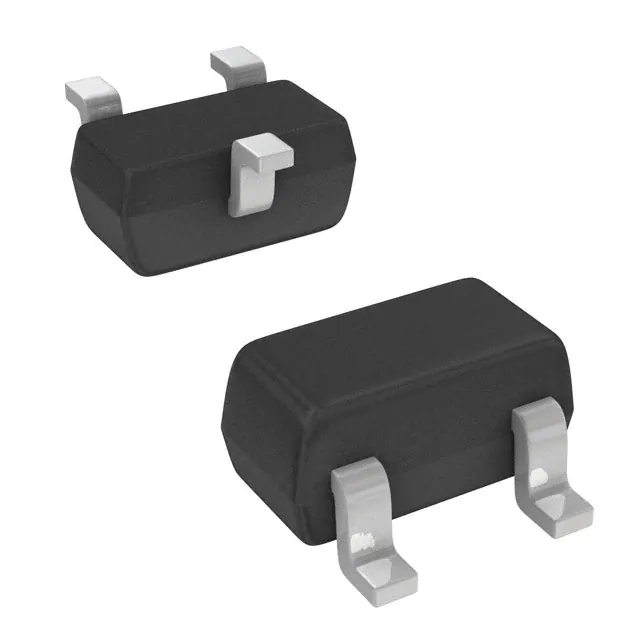

2N7002T-7-F-79
  • Share:

Diodes Incorporated 2N7002T-7-F-79

Manufacturer No:
2N7002T-7-F-79
Manufacturer:
Diodes Incorporated
Package:
Bulk
Description:
DIODE
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The 2N7002T-7-F-79 is a N-Channel Enhancement Mode MOSFET produced by Diodes Incorporated. This component is part of the broader 2N7002 family and is known for its reliability and performance in various electronic circuits. It is widely used in applications requiring low power consumption and high efficiency.

Key Specifications

ParameterValue
ManufacturerDiodes Incorporated
CategoryDiscrete Semiconductor Products - Transistors - FETs, MOSFETs - Single
PackageSOT-523
FET TypeN-Channel
TechnologyMOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)60V
Current - Continuous Drain (Id) @ 25°C115mA (Tc)
Drive Voltage (Max Rds On, Min Rds On)4.5V, 10V
Vgs(th) (Max) @ Id3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs2nC @ 5V
Input Capacitance (Ciss) (Max) @ Vds43pF @ 25V

Key Features

  • N-Channel Enhancement Mode MOSFET for efficient switching and low power consumption.
  • High drain to source voltage (Vdss) of 60V, making it suitable for a wide range of applications.
  • Low on-resistance (Rds On) at 4.5V and 10V drive voltages.
  • Small SOT-523 package, ideal for space-constrained designs.
  • Low gate charge and input capacitance, enhancing switching speed and efficiency.

Applications

The 2N7002T-7-F-79 MOSFET is versatile and can be used in various applications, including:

  • Power switching and power management circuits.
  • Audio amplifiers and other audio equipment.
  • Motor control and drive circuits.
  • General-purpose switching in digital circuits.
  • Low-power DC-DC converters and voltage regulators.

Q & A

  1. What is the maximum drain to source voltage (Vdss) of the 2N7002T-7-F-79? The maximum drain to source voltage is 60V.
  2. What is the continuous drain current (Id) at 25°C? The continuous drain current is 115mA.
  3. What is the typical threshold voltage (Vgs(th))? The typical threshold voltage is 3V at 250µA.
  4. What is the package type of the 2N7002T-7-F-79? The package type is SOT-523.
  5. What are the typical applications of this MOSFET? It is used in power switching, audio amplifiers, motor control, general-purpose switching, and low-power DC-DC converters.
  6. What is the maximum gate charge (Qg) at 5V? The maximum gate charge is 2nC at 5V.
  7. What is the input capacitance (Ciss) at 25V? The input capacitance is 43pF at 25V.
  8. Is the 2N7002T-7-F-79 RoHS compliant? Yes, the 2N7002T-7-F-79 is RoHS compliant.
  9. What is the technology used in this MOSFET? The technology used is MOSFET (Metal Oxide).
  10. What are the drive voltages for this MOSFET? The drive voltages are 4.5V and 10V.

Product Attributes

FET Type:N-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):60 V
Current - Continuous Drain (Id) @ 25°C:115mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):5V, 10V
Rds On (Max) @ Id, Vgs:7.5Ohm @ 50mA, 5V
Vgs(th) (Max) @ Id:2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:-
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:50 pF @ 25 V
FET Feature:-
Power Dissipation (Max):150mW (Ta)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:SOT-523
Package / Case:SOT-523
0 Remaining View Similar

In Stock

-
448

Please send RFQ , we will respond immediately.

Same Series
RD15S10HE20/AA
RD15S10HE20/AA
CONN D-SUB RCPT 15POS CRIMP
DD15S2S0V50
DD15S2S0V50
CONN D-SUB HD RCPT 15P SLDR CUP
RD15S10HT20/AA
RD15S10HT20/AA
CONN D-SUB RCPT 15POS CRIMP
DD15S20Z00
DD15S20Z00
CONN D-SUB HD RCPT 15P SLDR CUP
DD44S32S0TS/AA
DD44S32S0TS/AA
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S200E2X/AA
DD26S200E2X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S500X
DD26S2S500X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V5X
DD26S200V5X
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200E0/AA
DD26S200E0/AA
CONN D-SUB HD RCPT 26P SLDR CUP
CBC17W2S10HT2S/AA
CBC17W2S10HT2S/AA
CONN D-SUB RCPT 17POS CRIMP
DD44S32S60T2X
DD44S32S60T2X
CONN D-SUB HD RCPT 44P VERT SLDR
DD44S32S60T0
DD44S32S60T0
CONN D-SUB HD RCPT 44P VERT SLDR

Similar Products

Part Number 2N7002T-7-F-79 2N7002E-7-F-79
Manufacturer Diodes Incorporated Diodes Incorporated
Product Status Obsolete Obsolete
FET Type N-Channel N-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 60 V 60 V
Current - Continuous Drain (Id) @ 25°C 115mA (Ta) 250mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 5V, 10V 4.5V, 10V
Rds On (Max) @ Id, Vgs 7.5Ohm @ 50mA, 5V 3Ohm @ 250mA, 10V
Vgs(th) (Max) @ Id 2V @ 250µA 2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs - 0.23 nC @ 4.5 V
Vgs (Max) ±20V ±20V
Input Capacitance (Ciss) (Max) @ Vds 50 pF @ 25 V 50 pF @ 25 V
FET Feature - -
Power Dissipation (Max) 150mW (Ta) 370mW (Ta)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package SOT-523 SOT-23-3
Package / Case SOT-523 TO-236-3, SC-59, SOT-23-3
