CSD25402Q3AT
  • Share:

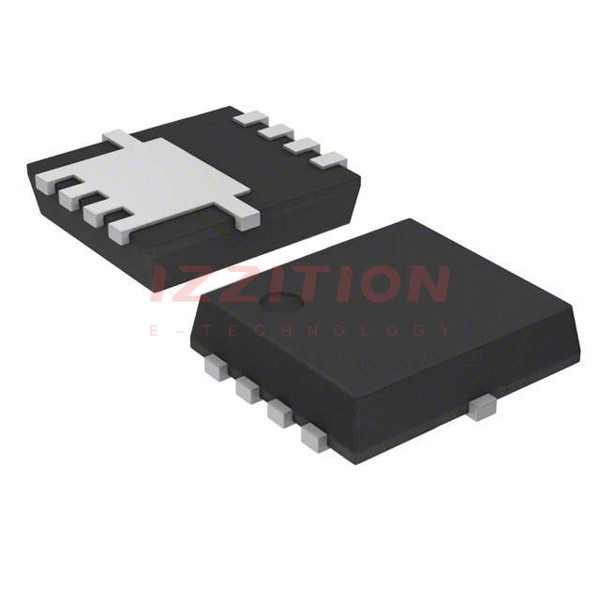

Texas Instruments CSD25402Q3AT

Manufacturer No:
CSD25402Q3AT
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 20V 15A/76A 8VSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The CSD25402Q3A is a -20 V P-Channel NexFET™ power MOSFET produced by Texas Instruments. This device is designed to minimize losses in power conversion and load management applications. It features a SON 3.3 mm × 3.3 mm plastic package, which offers excellent thermal performance despite its compact size. The MOSFET is particularly suited for applications requiring low on-state resistance, ultra-low gate charge, and high thermal efficiency.

Key Specifications

ParameterValueUnit
Drain-to-Source Voltage (VDS)-20V
Drain-to-Source On Resistance (RDS(on))7.7 mΩ (VGS = -4.5 V)mΩ
Gate Charge (Qg)7.5 nC (VGS = -4.5 V)nC
Gate Charge Gate to Drain (Qgd)1.1 nCnC
Gate-to-Source Threshold Voltage (VGS(th))-0.65 to -1.15V
Operating Temperature Range-55 to 150°C
Package TypeSON 3.3 mm × 3.3 mm Plastic Package
Pins8

Key Features

  • Ultra-Low Qg and Qgd
  • Low Thermal Resistance
  • Low RDS(on)
  • Pb and Halogen Free
  • RoHS Compliant
  • SON 3.3 mm × 3.3 mm Plastic Package

Applications

  • DC-DC Converters
  • Battery Management
  • Load Switch
  • Battery Protection

Q & A

  1. What is the maximum drain-to-source voltage of the CSD25402Q3A? The maximum drain-to-source voltage is -20 V.
  2. What is the typical on-state resistance of the CSD25402Q3A? The typical on-state resistance is 7.7 mΩ at VGS = -4.5 V.
  3. What is the gate charge of the CSD25402Q3A? The gate charge is 7.5 nC at VGS = -4.5 V.
  4. Is the CSD25402Q3A RoHS compliant? Yes, the CSD25402Q3A is RoHS compliant.
  5. What is the operating temperature range of the CSD25402Q3A? The operating temperature range is -55 to 150°C.
  6. What type of package does the CSD25402Q3A come in? The CSD25402Q3A comes in a SON 3.3 mm × 3.3 mm plastic package.
  7. How many pins does the CSD25402Q3A have? The CSD25402Q3A has 8 pins.
  8. What are some common applications for the CSD25402Q3A? Common applications include DC-DC converters, battery management, load switches, and battery protection.
  9. Is the CSD25402Q3A Pb and Halogen free? Yes, the CSD25402Q3A is Pb and Halogen free.
  10. What is the typical gate-to-source threshold voltage of the CSD25402Q3A? The typical gate-to-source threshold voltage is between -0.65 and -1.15 V.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:15A (Ta), 76A (Tc)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:8.9mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id:1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:9.7 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:1790 pF @ 10 V
FET Feature:-
Power Dissipation (Max):2.8W (Ta), 69W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-VSONP (3x3.3)
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

$1.16
514

Please send RFQ , we will respond immediately.

Same Series
RD15S10H00/AA
RD15S10H00/AA
CONN D-SUB RCPT 15POS CRIMP
DD15S20WTS/AA
DD15S20WTS/AA
CONN D-SUB HD RCPT 15P SLDR CUP
DD15S2S0V50
DD15S2S0V50
CONN D-SUB HD RCPT 15P SLDR CUP
CBC47W1S100V50
CBC47W1S100V50
CONN D-SUB RCPT 47POS CRIMP
CBC9W4S10HES/AA
CBC9W4S10HES/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S2S0TX/AA
DD26S2S0TX/AA
CONN D-SUB HD RCPT 26P SLDR CUP
CBC9W4S10HE3S/AA
CBC9W4S10HE3S/AA
CONN D-SUB RCPT 9POS CRIMP
DD26S2S50T2X/AA
DD26S2S50T2X/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S2S50T0
DD26S2S50T0
CONN D-SUB HD RCPT 26P SLDR CUP
DD26S200V50/AA
DD26S200V50/AA
CONN D-SUB HD RCPT 26P SLDR CUP
DD44S32S0T2X
DD44S32S0T2X
CONN D-SUB HD RCPT 44P VERT SLDR
DD26S20WT0/AA
DD26S20WT0/AA
CONN D-SUB HD RCPT 26P SLDR CUP

Similar Products

Part Number CSD25402Q3AT CSD25402Q3A
Manufacturer Texas Instruments Texas Instruments
Product Status Active Active
FET Type P-Channel P-Channel
Technology MOSFET (Metal Oxide) MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss) 20 V 20 V
Current - Continuous Drain (Id) @ 25°C 15A (Ta), 76A (Tc) 76A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 1.8V, 4.5V 1.8V, 4.5V
Rds On (Max) @ Id, Vgs 8.9mOhm @ 10A, 4.5V 8.9mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id 1.15V @ 250µA 1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs 9.7 nC @ 4.5 V 9.7 nC @ 4.5 V
Vgs (Max) ±12V ±12V
Input Capacitance (Ciss) (Max) @ Vds 1790 pF @ 10 V 1790 pF @ 10 V
FET Feature - -
Power Dissipation (Max) 2.8W (Ta), 69W (Tc) 2.8W (Ta), 69W (Tc)
Operating Temperature -55°C ~ 150°C (TJ) -55°C ~ 150°C (TJ)
Mounting Type Surface Mount Surface Mount
Supplier Device Package 8-VSONP (3x3.3) 8-VSONP (3x3.15)
Package / Case 8-PowerVDFN 8-PowerVDFN
