CSD25402Q3A
  • Share:

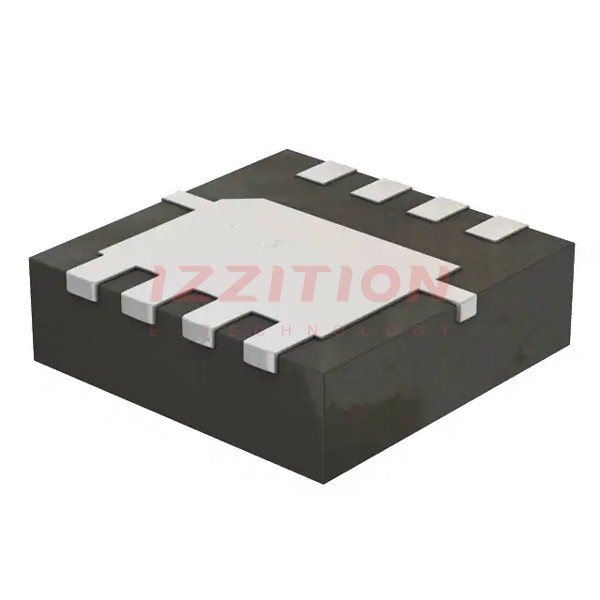

Texas Instruments CSD25402Q3A

Manufacturer No:
CSD25402Q3A
Manufacturer:
Texas Instruments
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 20V 76A 8VSON
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The Texas Instruments CSD25402Q3A is a high-performance P-channel NexFET™ power MOSFET designed for a wide range of power management applications. This device features a low on-resistance (Rds(on)) and high current handling capabilities, making it suitable for demanding power switching and control tasks. The CSD25402Q3A is packaged in a compact 3 mm x 3 mm SON (Small Outline No-lead) package, which enhances thermal performance and reduces board space requirements.

Key Specifications

ParameterValue
Voltage Rating (Vds)-20 V
On-Resistance (Rds(on))7.7 mΩ @ 4.5 V, 10 A
Continuous Drain Current (Id)72 A
Package TypeVSONP-8 (3.3 mm x 3.3 mm)
Thermal Resistance (RθJA)2.8 W
Threshold Voltage (Vth)900 mV @ 250 μA

Key Features

  • Low on-resistance (Rds(on)) of 7.7 mΩ @ 4.5 V, 10 A for efficient power switching.
  • High continuous drain current (Id) of 72 A, suitable for high-power applications.
  • Compact VSONP-8 package (3.3 mm x 3.3 mm) for reduced board space and enhanced thermal performance.
  • Designed for soldering to a thermal pad on the board to improve heat dissipation.
  • Compliant with RoHS standards.

Applications

The CSD25402Q3A is ideal for various power management applications, including but not limited to:

  • Power supplies and DC-DC converters.
  • Motor control and drive systems.
  • Battery management systems.
  • Automotive and industrial power systems.
  • High-efficiency power switching in consumer electronics.

Q & A

  1. What is the voltage rating of the CSD25402Q3A MOSFET? The voltage rating (Vds) of the CSD25402Q3A is -20 V.
  2. What is the on-resistance (Rds(on)) of the CSD25402Q3A? The on-resistance (Rds(on)) is 7.7 mΩ @ 4.5 V, 10 A.
  3. What is the continuous drain current (Id) of the CSD25402Q3A? The continuous drain current (Id) is 72 A.
  4. What package type is the CSD25402Q3A available in? The CSD25402Q3A is available in a VSONP-8 (3.3 mm x 3.3 mm) package.
  5. What is the thermal resistance (RθJA) of the CSD25402Q3A? The thermal resistance (RθJA) is 2.8 W.
  6. What is the threshold voltage (Vth) of the CSD25402Q3A? The threshold voltage (Vth) is 900 mV @ 250 μA.
  7. Is the CSD25402Q3A RoHS compliant? Yes, the CSD25402Q3A is RoHS compliant.
  8. What are some common applications for the CSD25402Q3A? Common applications include power supplies, motor control systems, battery management systems, and high-efficiency power switching in consumer electronics.
  9. How should the CSD25402Q3A be soldered to a PCB? The CSD25402Q3A should be soldered to a thermal pad on the board to improve heat dissipation.
  10. Where can I find detailed specifications and datasheets for the CSD25402Q3A? Detailed specifications and datasheets can be found on the Texas Instruments website and other authorized distributors like Digi-Key and Mouser.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):20 V
Current - Continuous Drain (Id) @ 25°C:76A (Tc)
Drive Voltage (Max Rds On, Min Rds On):1.8V, 4.5V
Rds On (Max) @ Id, Vgs:8.9mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id:1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:9.7 nC @ 4.5 V
Vgs (Max):±12V
Input Capacitance (Ciss) (Max) @ Vds:1790 pF @ 10 V
FET Feature:-
Power Dissipation (Max):2.8W (Ta), 69W (Tc)
Operating Temperature:-55°C ~ 150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-VSONP (3x3.15)
Package / Case:8-PowerVDFN
0 Remaining View Similar

In Stock

$0.98
18

Please send RFQ , we will respond immediately.
