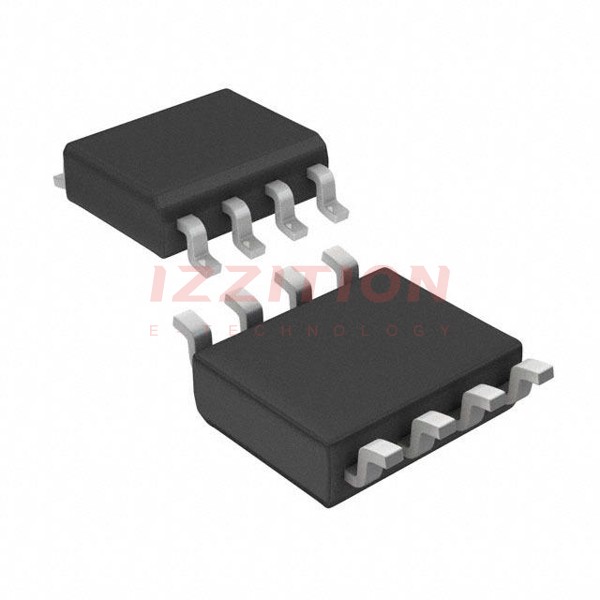

STMicroelectronics STS7P4LLF6

Manufacturer No:
STS7P4LLF6
Manufacturer:
STMicroelectronics
Package:
Tape & Reel (TR)
Description:
MOSFET P-CH 40V 7A POWER8-SO
Delivery:
Payment:
iso14001
iso45001
iso9001
iso13485

Product Introduction

Overview

The STS7P4LLF6 is a P-channel Power MOSFET developed by STMicroelectronics, utilizing the advanced STripFET F6 technology. This device features a new trench gate structure, which significantly enhances its performance by reducing the on-resistance (RDS(on)). The STS7P4LLF6 is designed to operate at high efficiency and reliability, making it suitable for a variety of applications requiring high power handling and low losses.

Key Specifications

ParameterValue
VDS (Drain-Source Voltage)40 V
RDS(on) (On-Resistance)0.0175 Ohm (typ.)
ID (Drain Current)7 A
PD (Power Dissipation)2.7 W (Ta)
Package8-SO (Surface Mount)
RoHS ComplianceEcopack1

Key Features

  • Advanced STripFET F6 technology with a new trench gate structure for low RDS(on).
  • High efficiency and reliability.
  • Low on-resistance (0.0175 Ohm typ.) for reduced power losses.
  • High drain current capability (7 A).
  • Surface mount package (8-SO) for easy integration.
  • RoHS compliant (Ecopack1).

Applications

  • Automotive systems: Suitable for various automotive applications due to its high reliability and efficiency.
  • Power management: Ideal for power management circuits requiring high current handling and low on-resistance.
  • Industrial control: Used in industrial control systems where high power and efficiency are crucial.
  • Consumer electronics: Applicable in consumer electronics for efficient power switching and management.

Q & A

  1. What is the typical on-resistance of the STS7P4LLF6?
    The typical on-resistance (RDS(on)) of the STS7P4LLF6 is 0.0175 Ohm.
  2. What is the maximum drain-source voltage of the STS7P4LLF6?
    The maximum drain-source voltage (VDS) is 40 V.
  3. What is the package type of the STS7P4LLF6?
    The STS7P4LLF6 comes in an 8-SO (Surface Mount) package.
  4. Is the STS7P4LLF6 RoHS compliant?
    Yes, the STS7P4LLF6 is RoHS compliant (Ecopack1).
  5. What is the maximum drain current of the STS7P4LLF6?
    The maximum drain current (ID) is 7 A.
  6. What technology is used in the STS7P4LLF6?
    The STS7P4LLF6 uses the advanced STripFET F6 technology.
  7. What are some common applications of the STS7P4LLF6?
    Common applications include automotive systems, power management, industrial control, and consumer electronics.
  8. What is the power dissipation of the STS7P4LLF6?
    The power dissipation (PD) is 2.7 W (Ta).
  9. Is the STS7P4LLF6 suitable for high-efficiency applications?
    Yes, the STS7P4LLF6 is designed for high efficiency and reliability, making it suitable for high-efficiency applications.
  10. Where can I purchase the STS7P4LLF6?
    The STS7P4LLF6 can be purchased from various electronic component distributors such as Digi-Key, Mouser, and directly from the STMicroelectronics eStore.

Product Attributes

FET Type:P-Channel
Technology:MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):40 V
Current - Continuous Drain (Id) @ 25°C:7A (Tj)
Drive Voltage (Max Rds On, Min Rds On):4.5V, 10V
Rds On (Max) @ Id, Vgs:20.5mOhm @ 3.5A, 10V
Vgs(th) (Max) @ Id:1V @ 250µA (Min)
Gate Charge (Qg) (Max) @ Vgs:22 nC @ 4.5 V
Vgs (Max):±20V
Input Capacitance (Ciss) (Max) @ Vds:2850 pF @ 25 V
FET Feature:-
Power Dissipation (Max):2.7W (Ta)
Operating Temperature:150°C (TJ)
Mounting Type:Surface Mount
Supplier Device Package:8-SO
Package / Case:8-SOIC (0.154", 3.90mm Width)
